Summary of Contents for Lightwave DVIDL-OPT-TX200

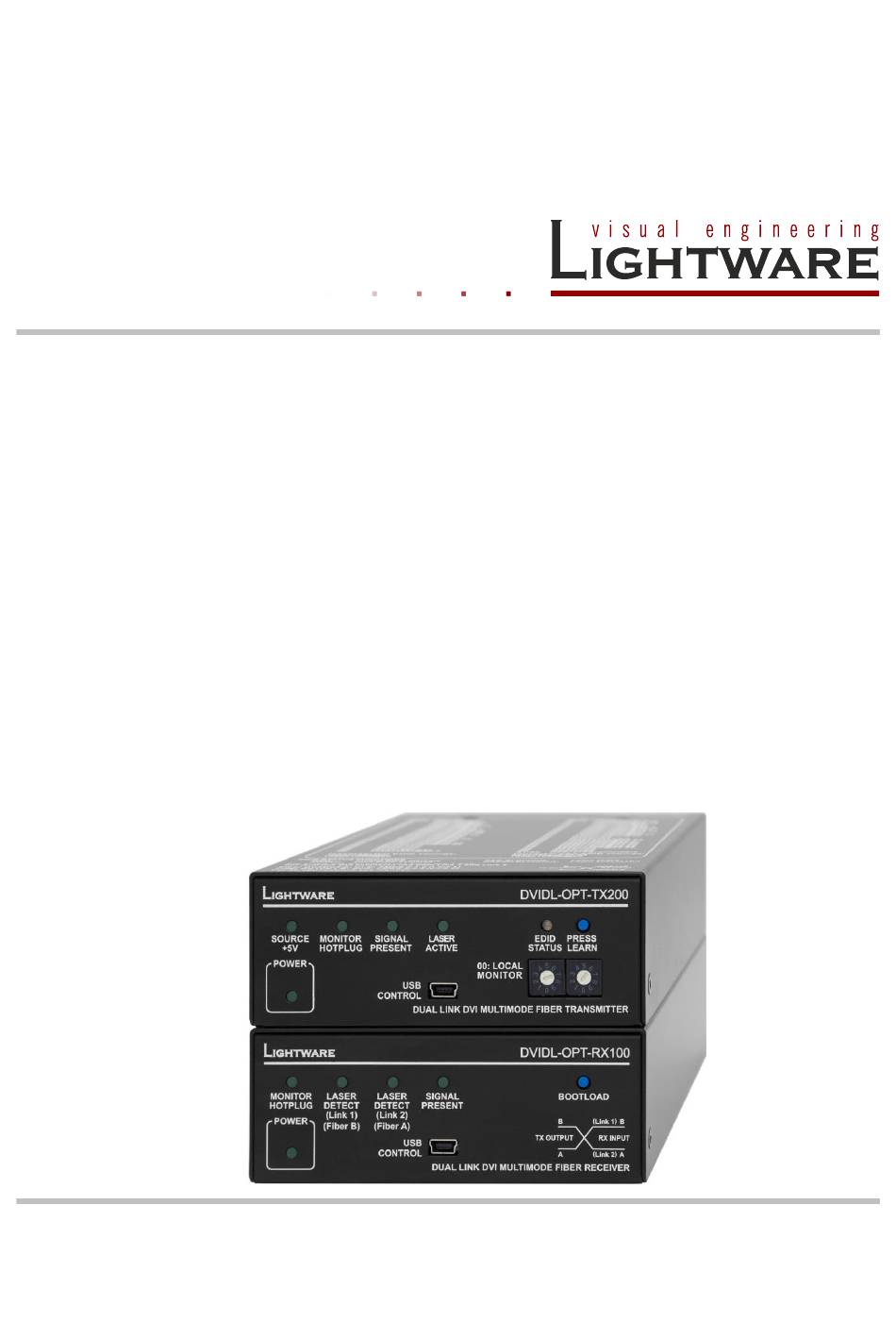

- Page 1 DVIDL-OPT-TX200 DVIDL-OPT-RX100 User’s Manual...
-
Page 3: Safety Instructions
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual SAFETY INSTRUCTIONS Class II apparatus construction. This equipment should be operated only from power source indicated on the product. To disconnect safely from power, remove the power cord from the rear of the equipment, or from the power source. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable. -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY Lightware Kft. 1071 Budapest Peterdy str. 15 HUNGARY as manufacturer declare, that the products DVIDL-OPT-TX200 DVIDL-OPT-RX100 ( Computer monitor extender ) in accordance with the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EEC are in conformity with the following standards: EMI/EMC .... -
Page 5: Table Of Contents
NDERSTANDING 3.1.1. Basics........................16 3.1.2. Common problems related to EDID ................ 16 3.2. EDID ..................17 DVANCED MANAGEMENT 3.3. TMDS R (DVIDL-OPT-TX200) ............... 17 ECLOCKING 3.4....................... 18 UAL LINK SIGNAL 3.5. DVI C ...................... 19 ABLE POWERING INSTALLATION ........................20 4.1. - Page 6 ICTURE IS NOT DISPLAYED OR DISTORTED 10. SPECIFICATIONS ......................... 51 10.1. M ....................53 ECHANICAL DRAWINGS 10.1.1. DVIDL-OPT-TX200 ....................53 10.1.2. DVIDL-OPT-RX100 ....................54 11. VERSION APPLICABILITY ....................55 12. WARRANTY .......................... 55 13. DOCUMENT REVISION HISTORY ..................55 Page 6 / 55...
-
Page 7: Introduction
Zero frame delay – DVIDL-OPT-TX200 add no frame noticeable delay to the switched signal. There is no frame or line period delays to the signals when passing a Lightware router. -
Page 8: Receiver Features
Local monitor output – The user can attach a local monitor to observe the video signal sent through the fiber optical cable. The resolution and clock frequency are the same on DVI and fiber optical connectors, no internal scaling or conversion is applied. ... -
Page 9: Applications
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 1.5. Applications Figure 1-1. Typical stand-alone application Figure 1-2. Integrated system operation for DVIDL-OPT extenders Application examples Long distance lossless DVI signal transmission Ground loop isolation Multi-room video control Professional AV systems, conference rooms ... -
Page 10: Controls And Connections
2. Controls and connections 2.1. DVIDL-OPT-TX200 (transmitter) front view Source LED Monitor LED Signal LED Laser LED EDID LED Power LED USB control Rotary switches Learn button Source LED Indicates if a DVI source is connected to the unit, it is powered on and sends +5V signal to Pin 14 of the input DVI connector. -
Page 11: Dvidl-Opt-Tx200 (Transmitter) Rear View
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 2.2. DVIDL-OPT-TX200 (transmitter) rear view DVI input DC connector DVI output Neutrik connector DVI input 29 pole DVI-I connector, however only digital pins are internally connected. Connect single link or dual link DVI source with an applicable DVI cable, use a dual link DVI cable when dual link signal to be transmitted. -
Page 12: Dvidl-Opt-Rx100 (Receiver) Front View
2.3. DVIDL-OPT-RX100 (receiver) front view Laser LEDs Bootload button Monitor LED Signal LED Power LED USB control Monitor LED The LED indicates if a display device (or repeater, etc.) is connected to the corresponding DVI output and it sends a valid Hot Plug Signal on Pin 16 through the DVI cable. -
Page 13: Dvidl-Opt-Rx100 (Receiver) Rear View
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 2.4. DVIDL-OPT-RX100 (receiver) rear view DC connector DVI output Neutrik connector DC connector Connect the output of the supplied +5 V power adaptor. The power LED indicates the proper supply voltage. DVI output 29 pole DVI-I connector, however only digital pins are internally connected. -
Page 14: Electrical Connections
Figure 2-1. NT receptacle (Neutrik® OpticalCON DUO) 2.5.2. DVI inputs and outputs DVIDL-OPT-TX200 and DVIDL-OPT-RX100 provides 29 pole DVI-I connectors, however only digital pins are internally connected. This way, user can plug in any DVI connector, but keep in mind that analog signals (such as VGA or RGBHV) are NOT processed. -
Page 15: Dc +5V Connection
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual Figure 2-3. Single link (on the left) and dual link (on the right) DVI connectors 2.5.3. DC +5V connection The device has locking DC connector to establish robust and safe power connection. After plugging it in, turn the plug clockwise as you can see in the picture below. -
Page 16: Technologies
Lightware DVIDL-OPT-TX200, a WUXGA (1600x1200) LCD as local monitor, then a DVIDL-OPT-RX100 connected to an HD (1920x1080) projector. I would like to see the same image on the monitor and the projector. What EDID should I chose on the transmitter?”... -
Page 17: Advanced Edid Management
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual Problem: „I have changed to a different EDID on the DVIDL-OPT-TX200 to have a different resolution but nothing happens.” Solution: Some graphics cards and video sources read out the EDID only after power-up and later they don’t sense that EDID has been changed. You need to restart your source to make it read out the EDID again. -
Page 18: Dual Link Dvi Signal
The TMDS Reclocking circuit eliminates the following errors: Intra-pair skew: skew between the + and - wires within a differential wire pair (e.g. Data2- and Data2+). It’s caused by different wire lengths or slightly different wire construction (impedance mismatch) in DVI cable. It results in jitter. Intra-pair skew Jitter: signal instability in the time domain. -
Page 19: Dvi Cable Powering
55 mA current on +5V output, thus unable to directly power a fiber optical transmitter. Info: DVIDL-OPT-TX200 and DVIDL-OPT-RX100 do not check if the connected sink (monitor, projector or other equipment) supports Hotplug or EDID signals but output the input signal immediately after it has been applied to the input. -
Page 20: Installation
4. Installation 4.1. Rack shelf mounting Info: The extenders are quarter-rack sized. Step 1. Turn the unit upside down. Step 2. Put the rack shelf upside down on the unit, and position it to get the mounting holes aligned. Step 3. Fasten the unit on the rack shelf with the provided screws. -
Page 21: Applications
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual DVIDL-OPT-TX200 DVIDL-OPT-RX100 FIBER FIBER OUTPUT INPUT Laser Laser sensor driver OUTPUT OUTPUT Splitter LOCAL MONITOR DVI DISPLAY INPUT DVI SOURCE Figure 4-1. Schematic wiring (stand-alone) 4.3. 3D applications 3D quick setup The extenders are adapted to transmit stereoscopic 120 Hz 3D video signal up to 1920x1200 resolution. -
Page 22: Operation
61..99 ................. User programmable memories 00 ............Last attached monitor’s EDID (Local Monitor) Info: DVIDL-OPT-TX200 can handle both 128 Byte EDID and 256 Byte extended EDID structures. Info: The attached monitor’s EDID is stored automatically, until a new monitor is attached to the local monitor output. -
Page 23: Front Panel (Transmitter)
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual MEMORY Resolution MEMORY Resolution Local monitor 1440 x 576i @ 50.6 Hz 640 x 480 @ 60.0 Hz 640 x 480 @ 59.94 Hz 848 x 480 @ 60.0 Hz 720 x 480i @ 59.92 Hz 800 x 600 @ 60.3 Hz... -
Page 24: Learning Edid
Step 2. Push the LEARN button on the front side of DVIDL-OPT-TX200 and hold it down for approximately two seconds. If the teaching is successful, the Status LED blinks four times green, if the teaching is unsuccessful, the Status LED blinks four times red. -
Page 25: Edid Status Led
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 5.3.4. EDID status LED The LED shows the status of the selected EDID and gives feedback about EDID learning as follows: EDID status LED Description Valid EDID is selected (green) Invalid EDID is selected (selected location is empty... -
Page 26: Software Control - Using Lightware Device Controller (Ldc)
6. Software control – Using Lightware Device Controller (LDC) The extenders can be controlled by a computer using Lightware Device Controller. The software can be installed to a Windows PC or MAC OS X. The application and the User’s manual can be downloaded from www.lightware.eu. After the installation the Windows and the Mac application has the same look and functionality. - Page 27 DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual Step 4. Select the destination folder and click Next. (Using the default path is highly recommended.) Step 5. Select the Start Menu Folder and click Next. (Using the default folder is highly recommended. If the Start menu entries was not checked in the Step 2. this window will be skipped.)
-
Page 28: Steps Of The Installation In Case Of Mac Os X
Step 8. If the installation is complete, click Finish. (Uncheck the box if the running of the LDC will be delayed.) 6.2. Steps of the installation in case of Mac OS X Info: After the installation the Windows and the Mac application has the same looks and functionality. -
Page 29: Ldc Upgrade
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 6.3. LDC Upgrade Step 1. Start the application. The Device Discovery window appears automatically and the program checks the available updates on the Lightware website and opens the update window if the LDC found updates. The current and the update version number can be seen in the top of the window and they are shown in this window even with the snapshot install. -
Page 30: Establishing The Connection
6.4. Establishing the connection The extenders can be controlled from a Windows or OS X based computer using the LDC with an applicable USB cable with mini-B male connector. Step 1. Connect the appliance to the computer by the USB cable. Step 2. -
Page 31: Edid Menu (Transmitter)
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual The properties window of the Receiver’s output port contains further settings: Figure 6-3. Port properties (Receiver) 6.6. EDID menu (transmitter) Advanced EDID Management can be accessed by clicking on the EDID menu. This view is divided in two panels. Left panel contains the Source EDIDs, right one contains Destination places where the EDIDs can be emulated. -
Page 32: Changing The Emulated Edid At The Input
Emulated EDID List shows the currently emulated EDID for the input. It contains the resolution, manufacturer and vendor name of the EDID reported to the source. The source column displays the memory location that the current EDID was routed from. Dynamic contains the resolution, manufacturer and vendor name of the display devices connected to transmitter's OUTPUT (DVI). -
Page 33: Edid Summary Window
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 6.6.7. EDID Summary window Select an EDID from Source panel and press Info button to display EDID Info summary. Figure 6-5. EDID Summary window 6.6.8. Advanced EDID Editor This powerful tool is essential for AV professionals. The Lightware Advanced EDID Editor is integrated into the Controller Software, and it makes possible to manage every setting in the EDID on an intuitive user interface. -
Page 34: Easy Edid Creator
6.6.9. Easy EDID Creator Since the above mentioned advanced editor needs more knowledge about EDID, Lightware introduced a wizard like interface for fast and easy EDID creation. With Lightware Easy EDID Creator it is possible to create custom EDIDs in four simple steps. By clicking on the EEC button, the Easy EDID Creator opens in a new window. -
Page 35: Status Menu
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 6.8. Status menu 6.8.1. Device information tab Basic information about the extender, such as type, serial number, installed cards’ firmware and hardware revisions are displayed on this tab. Figure 6-9. Device information tab 6.8.2. Log tab Figure 6-10. -
Page 36: Device Discovery (Information Ribbon)
Info: This function is only for special troubleshooting cases. 6.9. Device discovery (information ribbon) This label shows the interface type, DVIDL-OPT-TX200 12345678 the name and the serial number of the connected device. The Device discovery window can be started by clicking on this ribbon. -
Page 37: Programmer's Reference
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 7. Programmer’s reference The extenders accept commands surrounded by curly brackets - { } - and responds data surrounded by round brackets - ( ) - only if a command was successfully executed. All input commands are converted to uppercase, but respond commands can contain upper and lower case letters as well. -
Page 38: Extender Status Commands (Transmitter And Receiver)
Description: The extender responds its type. Format Example → {i} Command {i} Response (I:<PRODUCT_TYPE>)CrLf ← (I: DVIDL-OPT-TX200)CrLf Explanation: The connected device is a DVIDL-OPT-TX200. 7.1.3. View serial number Description: The extender responds its 8-digit serial number. Format Example → {s} Command {s} ←... -
Page 39: View Firmware Of The Controller
Format Example → {fc} Command {FC} Response (CF●<DESC>)CrLf ← (CF DVIDL-OPT-TX200 FW:1.2.2) (CF END)CrLf (CF END) CrLf Explanation: The firmware version of the control panel is 1.2.2. 7.1.7. All port status Description: Shows the actual status of all input and output ports. -
Page 40: System Commands (Transmitter)
7.2. System commands (transmitter) 7.2.1. View emulated EDID on the input Description: Shows the currently emulated EDID for the input. The value at the given index <loc1> shows which EDID is used on the input. Format Example → {VEDID} Command {VEDID} Response (VEDID●<loc1>)CrLf ←... -
Page 41: View Edid Header
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 7.2.4. View EDID header Description: Shows basic information about EDIDs in the memory. Format Example → {WHD2} Command {WH<loc>} Response (EH#<loc>● ← (EH#D2 DEL 2560x1440@59.94Hz <EDID_HEADER>)CrLf DELL U2711)CrLf Explanation: Shows the EDID of location D2. Legend: Depending on <loc> the query can be for one EDID, all EDID in the block. -
Page 42: Delete Edid From Memory
Format Example → {WL#U3} Command {WL#<loc>} ← (E_L_S) CrLf Response (E_L_S)CrLf Command {WB#1●<B1>●<B2>●<B3> → {WB#1 00 FF FF FF FF FF FF 00} ●<B4>●<B5>●<B6>●<B7> ●<B8>} ← (EL#1) CrLf Response (EL#<num>)CrLf Command {WB#2●<B9>●<B10> → {WB#2 38 A3 8E 66 01 01 01 01} ●<B11>●<B12>●<B13>... -
Page 43: Extender Initiated Commands
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 7.3. Extender initiated commands 7.3.1. EDID Status Changed (transmitter) Description: This is sent after any command which changed the EDID table (EDID copy, EDID switch, etc…), or after a new EDID source e.g. a new display device is connected to the extender. -
Page 44: Commands - Quick Summary
7.5. Commands – Quick summary Extender status commands See in Command description Command chapter Query control protocol 7.1.1 {P_?} View product type 7.1.2 View serial number 7.1.3 View firmware version of the CPU 7.1.4 View installed I/O board 7.1.5 {is} View firmware of the controller 7.1.6 {fc}... -
Page 45: Firmware Upgrade
Output port settings Table 8-1. Storage memories 8.1. Install the Bootloader DVIDL-OPT-TX200 and DVIDL-OPT-RX100 can be upgraded using Lightware Bootloader from a Windows based PC or Laptop through USB connection. Step 1. Run Installer_LW_bootloader_v3_2_9.exe (3_2_9 means the 3-digit software version of the Bootloader). -
Page 46: Upgrade Process
Step 4. After the files have been copied the following message appears: Step 5. To finish the installation process, click on the Close button. Step 6. To run Lightware Bootloader, find the shortcut icon in Start Menu Programs Lightware LW_bootloader_v3_2_9 or on the desktop and double click on it. - Page 47 If the connection is established, the device is switched to Bootload-mode. Front LEDs will show the bootload mode: DVIDL-OPT-TX200: The EDID status LED is blinking red and green alternately. DVIDL-OPT-RX100: The MONITOR HOTPLUG and LASER DETECT (Link 1) LEDs are blinking alternately.
- Page 48 Step 8. Browse for the new firmware(s). Click the corresponding cell in the “Browse New Firmware” column. A dialog pops up, to confirm if you really want to modify the path. Now you can browse for the new firmware file to upload.
-
Page 49: Troubleshooting
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 9. Troubleshooting 9.1. Picture is not displayed or distorted Usually, if the system seems not to transport the DVI signal as expected, the best strategy for troubleshooting is to check the signal integrity through the whole signal chain starting from the source side and moving forward to the receiver end. - Page 50 Step 5. Check the signal at the local monitor output Check if there’s an outgoing signal on the OUTPUT connector of the transmitter. The input signal is always routed to the output connector. If there is a signal on the OUTPUT connector, then the problem is not EDID related.
-
Page 51: Specifications
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 10. Specifications General Compliance ....................... CE EMI/EMC ............... EN 55103-1, EN 55103-2 Safety ..................EN 60065 Class I Warranty ....................3 years Operating temperature ..........0 to +55°C (+32 to +122°F) Operating humidity ........... 10% to 90%, noncondensing Cooling .................. - Page 52 Optical Fiber type ..............50/125 SC Multimode fiber Laser wavelengths ........4ch. CWDM: 778; 800; 825; 850 nm Laser class specification ................Class 3R Transmitter output OMA* ..........-6.25 dBm (worst case) Receiver OMA* sensitivity ..........-14.25 dBm (worst case) Optical loss budget ..............
-
Page 53: Mechanical Drawings
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 10.1. Mechanical drawings 10.1.1. DVIDL-OPT-TX200 Front view Rear view Top view Bottom view 67,5 21,25 M3 thread Left view Section 10. Specifications Page 53 / 55... -
Page 54: Dvidl-Opt-Rx100
10.1.2. DVIDL-OPT-RX100 Front view Rear view Top view Bottom view 21,25 67,5 M3 thread Left view Page 54 / 55 Section 10. Specifications... -
Page 55: Version Applicability
DVIDL-OPT-TX200, DVIDL-OPT-RX100 User’s Manual 11. Version applicability This User’s Manual applies to the following versions of the mentioned software: Lightware software Version Lightware Device Controller software 1.0.0b2 Lightware Bootloader software 3.2.9 Firmware and hardware: Product Firmware version Hardware version DVIDL-OPT-TX200 1.2.2...
