Summary of Contents for Lightwave LW800
-
Page 1: Instruction Manual

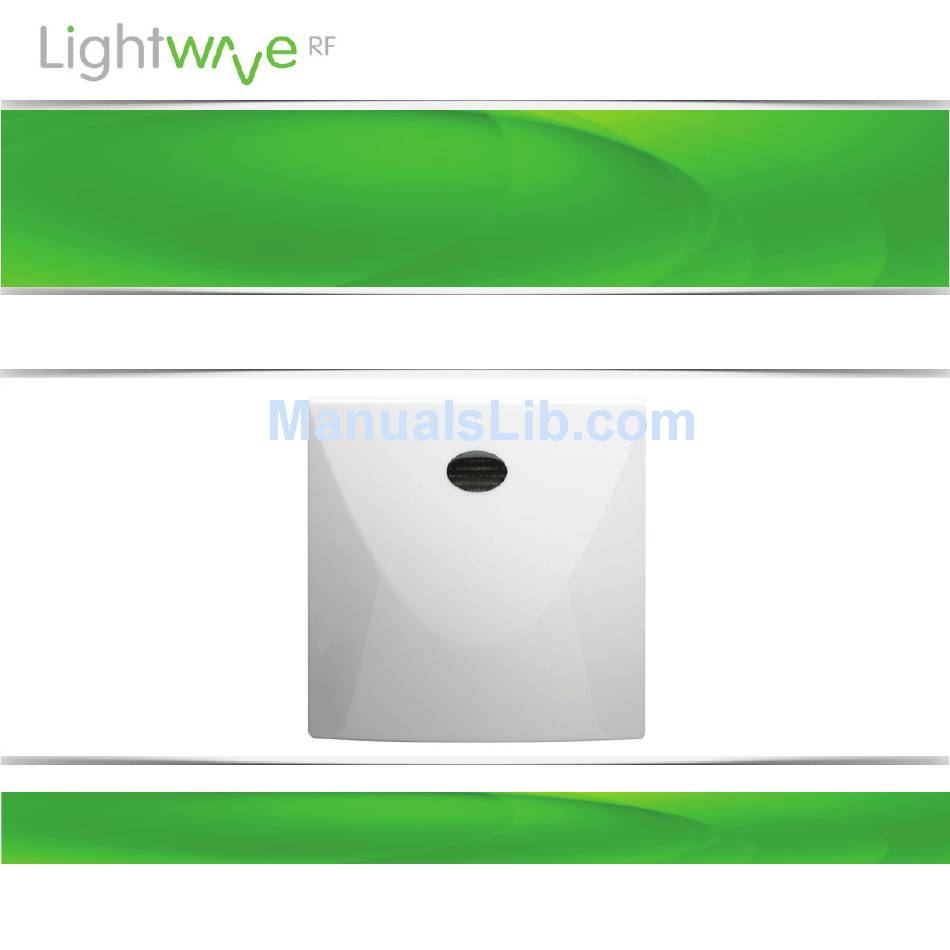

Version 2.1 Signal Booster Model No. LW800 Instruction Manual Connect Series www.lightwaverf.house... - Page 2 EC DECLARATION OF CONFORMITY Responsible Authority: LightwaveRF PLC, Innovation Campus Birmingham Faraday Wharf Holt Street Birmingham B7 4BB Tel: +44 (0)121 250 3625 Email: enquiries@lightwaverf.com Model Number(s): JSJSLW800 Description: Signal Booster Directives this equipment Complies with: 2006/95/EC The Low Voltage Directive N/A 2004/108/EEC The Electromagnetic Compatibility Directive 1999/5/EC R&TTE Directive 93/68/EEC CE Marking Directive...
-
Page 3: How Do I Get Started
LightwaveRF Controllers (including Lightwave Link & Smartphone App). How does it work? The Signal Booster is a wireless, portable device should positioned between LightwaveRF controller and the target device (must be within the 15m range of either). As it is waterproof, It can be positioned outdoors. -
Page 4: Installation
Installation Overview Front Main indicator Waterproof housing IMPORTANT: Please retain these instructions for guidance on how to link the sensor to other LightwaveRF devices. For additional guidance please visit www.lightwaverf.com... - Page 5 Installation Back (cover and stand removed) Cover Waterproof seal mounting screw hole Linking button Battery compartment Stand mounting hook...
-
Page 6: Removing The Back Cover
Installation Removing the back cover In order to setup the Signal Booster, and to insert or replace the batteries, the back cover must first be removed. Gently unhook the rear stand using a flathead screwdriver as shown. Unscrew the back cover using a suitable screwdriver. -
Page 7: Inserting The Batteries
Device setup Inserting the batteries The battery compartment is accessed from the rear of the booster beneath the cover. 2 x AA batteries are required (not included). NOTE: When the batteries are low, the booster LED will flash every 3 seconds. Linking the booster to a LightwaveRF controller Ensure that the controller (or... - Page 8 Device setup Press and release the linking button (located under the back cover). The LED on the Signal Booster will flash repeatedly to indicate that it has entered linking mode. Whilst the device is in linking mode, send a command from the controller / App.
- Page 9 Device setup Unlinking the booster from a LightwaveRF device Press and release the linking button (located under the back cover). The LED on the Signal Booster will flash repeatedly to indicate that it has entered linking mode. Whilst the device is in linking mode, send a command from the controller / App.
- Page 10 Device setup NOTE: The Signal Booster can be linked to six independent commands in total from any LightwaveRF controllers, including the Lightwave Link & App. If it will not successfully link to a new controller then it is possible that the booster memory is full.
- Page 11 App. How do I initially link devices that are out of range and in a fixed location (e.g. if a Lightwave Link transmission will not reach a Dimmer Switch)? Link the specific command from the controller (e.g. Lightwave Link) that is out of range to the Signal Booster first.
-
Page 12: Specification
Technical Specification Specification RF frequency: 433.92 MHz Input rating: 1.5V (2 x AA Batteries) Range: 15m (indoors) IP56 Approved. - Page 13 Version 2.1 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.lightwaverf.house...
