Draytek VigorAP 805 Quick Start Manual page 10

3. Installation
This section will guide you to install the AP through hardware connection.

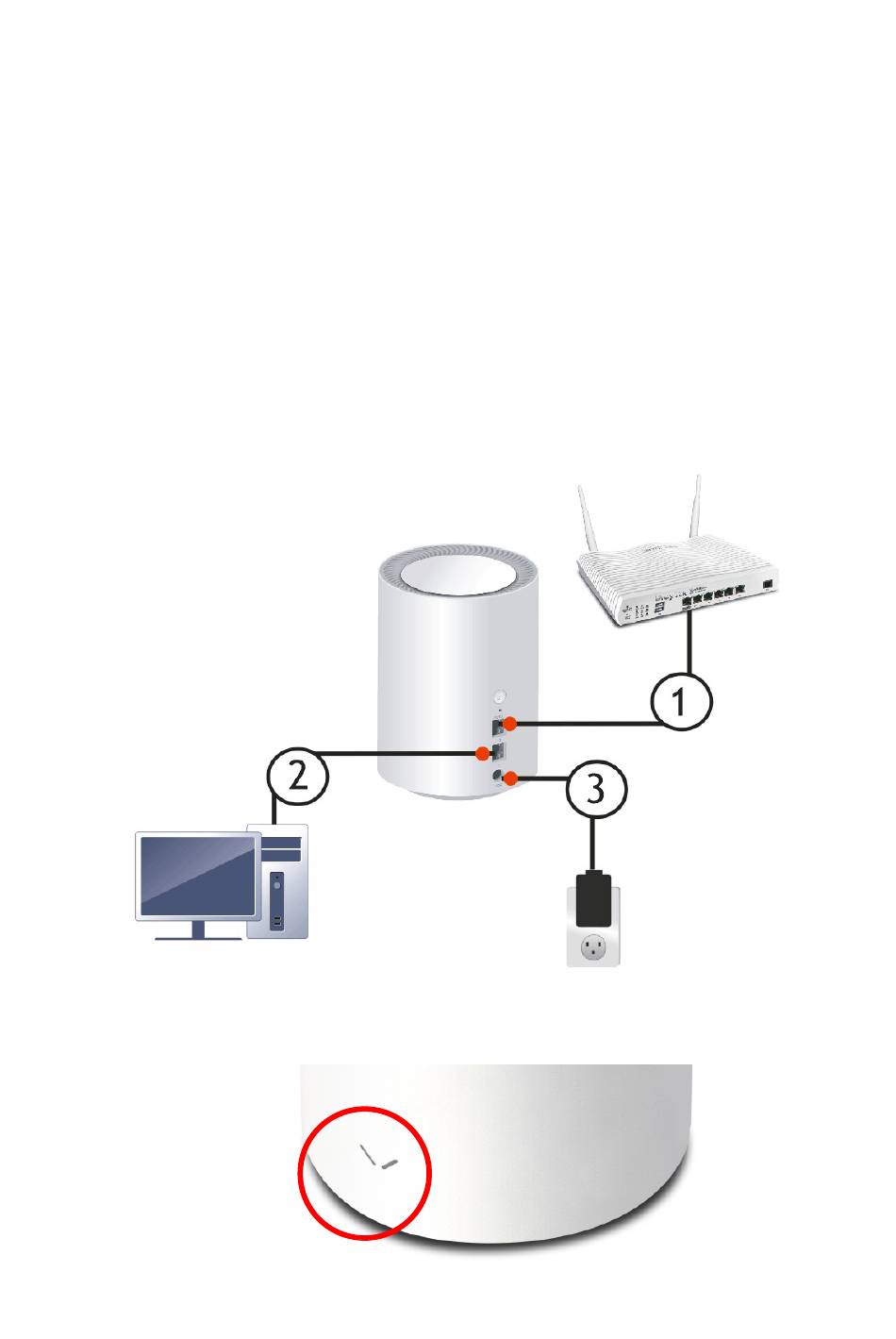

1. Connect VigorAP 805 to xDSL modem, router, or switch/hub in your network
through the LAN 1 or LAN2 port of the access point by Ethernet cable.
You can also connect VigorAP 805 to a Vigor router via wireless connection.
For detailed information, refer to VigorAP 805 User's Guide.
2. Connect a computer to other available LAN port. Make sure the subnet IP
address of the PC is the same as VigorAP 805 management IP, e.g.,
192.168.1.X.
3. Connect the A/C power adapter to the wall socket, and then connect it to
the PWR connector of the access point.
4. Power on VigorAP.
5. Check and make sure the LED on the front panel is solid on (red or white).
10
