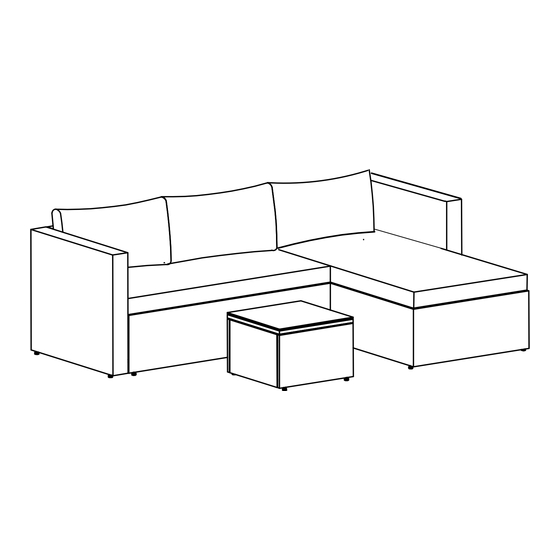

3 PIECE LAMAI WICKER CORNER SOFA
ASSEMBLY INSTRUCTIONS
Please check that all bolts are secure before and after use.
Care Instructions:
1. Wipe clean with luke warm water & mild detergent or scrub with soft bristle brush.
2. Rinse excess detergent with water and allow to dry naturally.
3. It is recommended to store the lounge and cushions out of direct sunlight and rain when not
in use.
4. To reduce the risk of rust, ensure any scratches/chips to the powder coated steel frame, are
coated with a suitable metal coating.
Part No.
A
B
C
D
E
F
G
Parts List
Pictures
Description
Side frame-right
Side frame-left
Back frame-small
Back frame-large
Seat frame
Chaise lounge seat frame
Table frame
Quantity
1PC
1PC
1PC
1PC
1PC
1PC
4PCS
Advertisement
Related Manuals for Marquee 3 PIECE LAMAI WICKER CORNER SOFA
Summary of Contents for Marquee 3 PIECE LAMAI WICKER CORNER SOFA
- Page 1 3 PIECE LAMAI WICKER CORNER SOFA ASSEMBLY INSTRUCTIONS Please check that all bolts are secure before and after use. Care Instructions: 1. Wipe clean with luke warm water & mild detergent or scrub with soft bristle brush. 2. Rinse excess detergent with water and allow to dry naturally.
- Page 2 Part No. Pictures Description Quantity Cover board Glass Back cushion 3PCS 2-seater lounge seat cushion Chaise lounge seat cushion Short bolt 4PCS M6x35mm Long bolt 2PCS M6x45mm Washer 6PCS 2PCS Allen key Spanner...
- Page 3 ASSEMBLING YOUR COFFEE TABLE Step 1: Step 2: Locate two table frames (G) and insert the Make sure the top edges of the coffee table hooks down into the grooves of the corre- are square and level. sponding frame. Repeat for the remaining two panels.
- Page 4 The below instructions show the assembly of the sofa set with chaise lounge on the right. However, you are free to choose which side of the set you would like the chaise lounge to be - left or right. Note: to assemble the chaise to the left simply swap frame D and C. right left ASSEMBLING YOUR LAMAI CORNER SOFA...
- Page 5 Step 2: Attach the Back frame-small (C) to the Back frame-large (D) by inserting the hook into the corresponding groove. Then insert and secure the long bolt (N) with washer (O) and nut (P) -as pictured, loosely tighten. Step 3: Now join the side frame-right (A) with the back frame-small (C) by...
- Page 6 Step 4: Carefully turn the assem bled components over, join the seat frame (E) to the side frame-left (B) by align ing the latches ensuring the nodules are inserted into the the frame. Secure the side frame (B) with short bolt (M) and washer (O) into the corresponding threaded hole, loosely tighten.Secure...
- Page 7 Step 6: Join the chaise lounge seat frame (F) to side frame-right (A), back frame-small (C) and seat frame (E) by securing all the latches as pictured. Tighten all bolts, washers and nuts using allen key (Q) and spanner (R). Step 7: Place the seat cushions (K and L) and back cushions...
