FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANNUAL
BEFORE OPERATING MACHINE
SKU: TCA-0053
Both model number and serial number may be found on the main label.
You should record both of them in a safe place for future use.
Save This Manual For Future Reference
Customer Support: (888)680-2849, inquiry@bilthardusa.com
Advertisement
Related Manuals for BILT HARD TCA-0053
Summary of Contents for BILT HARD TCA-0053

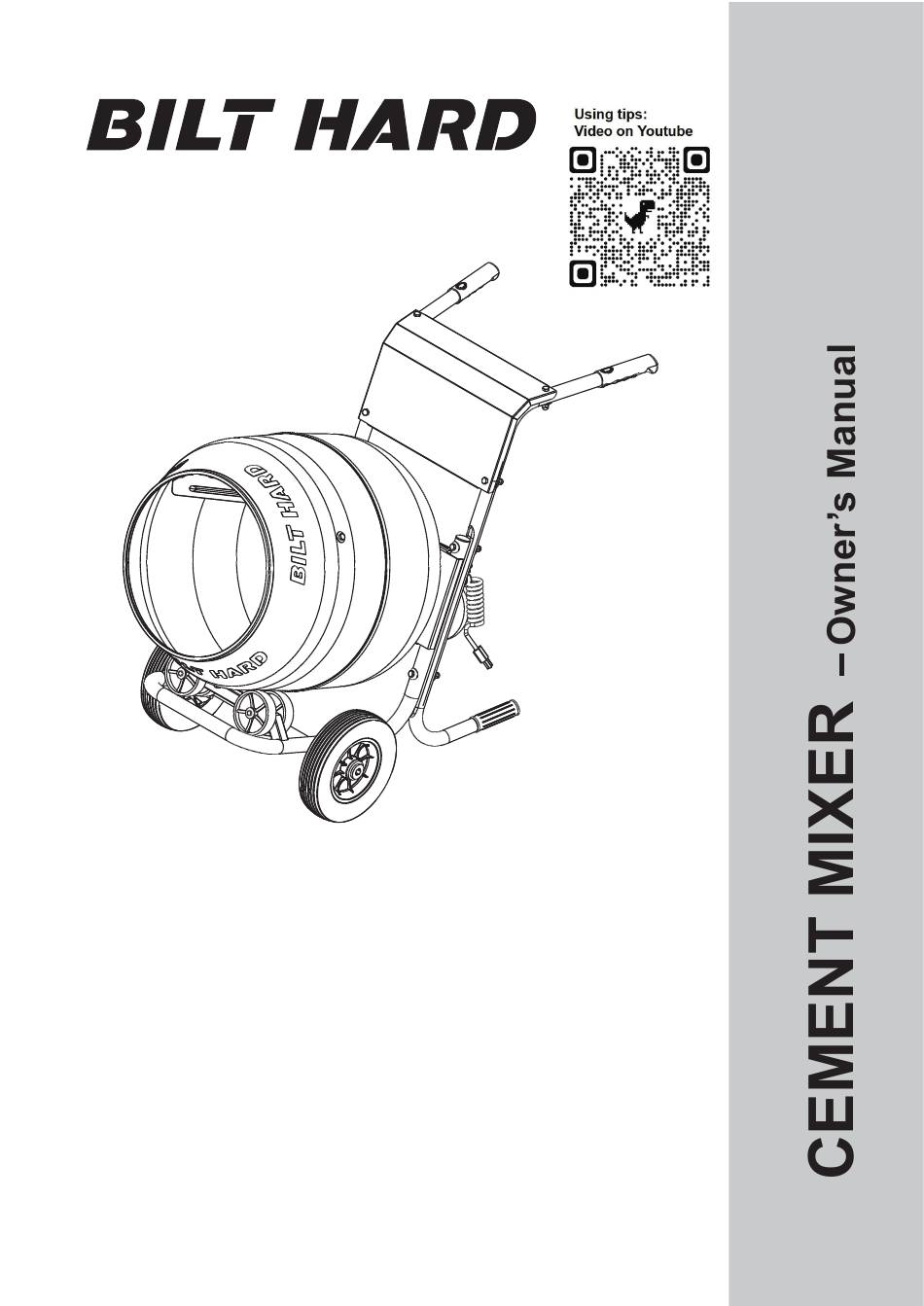

- Page 1 FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANNUAL BEFORE OPERATING MACHINE SKU: TCA-0053 Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use.
- Page 2 Contents Specifications Safety Alert Symbols Safety Information & Guidelines Parts List And Diagram Assembly 9-12 Operating Instructions General Operating Instructions 13-14 Maintenance And Servicing Cleaning, Maintenance, And Lubrication Troubleshooting LIMITED WARRANTIES Electrical Input 115VAC / 60Hz / 4.3A Motor No Load Speed 1680RPM Horse Power Drum Speed...
- Page 3 SAFETY ALERT SYMBOLS Indicates danger, warning, or caution. Attention is required in order to avoid serious personal injury. The signal word ( DANGER, WARNING, OR CAUTION ) is used with the alert symbol to alert you to special instruction about a particular operation that may be hazardous if performed incorrectly or carelessly.
- Page 4 SAFETY ALERT SYMBOLS working. Wear protective hair covering to contain long hair, preventing it from getting caught in machinery. Wear a face or dust mask if the operation is dusty. Always wear safety goggles and/or face shields. Everyday eyeglasses have only impact resistant lenses. They are not safety glasses. KEEP VISITORS AND CHILDREN AWAY Keep unauthorized persons away from the mixer.
- Page 5 Safety Information & Guidelines IMPORTANT SAFETY INSTRUCTIONS This product is not intended for use by persons suffering from diminished physical, ensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Keep children away. OBSERVE WORK AREA CONDITIONS DANGER •...
- Page 6 Safety Information & Guidelines (Continued) WARNING (Continued) • Never modify the plug in any way. Unmodified plugs and matching outlets will reduce risk of electric shock. •If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
- Page 7 Safety Information & Guidelines (Continued) CAUTION • Ensure drum is empty before transporting. • Do not overload mixer. See Specifications, page 2 for load capacity. Overloading could cause damage to the cement mixer. • Store cement mixer out of the reach of children. •...
- Page 8 PARTS LIST AND DIAGRAM 10 11 Part Description Part Description Wheel R14M8 Washer Wheel Plug M8*45 Screw Lower Frame Top Cover Drum Assembly Handle Motor shaft Pin Rubber Sleeve G1/4’’ Washer M8 Cap Nut Cotter Pin Gear Motor Assembly M8 Nut Support Leg Sleeve M8 Washer Support Leg...
- Page 9 ASSEMBLY Setup - Before Use Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings there in before set up or use of this product. WARNING TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power Switch of the tool off before performing any procedure in this section.
- Page 10 ASSEMBLY Install two wheels(1) to the lower frame(3) and use the wheel plug(2) to fix the wheel. Note：When disassemble the wheel plugs, Step 1 use diameter 12MM, length over 600MM round rod to tap the hole on the inside of the plug.Then the plugs will easy to take out. Lower Frame(3) Wheel(1) Wheel(1)
- Page 11 ASSEMBLY Assemble gear motor(17) to lower frame(3) using M8 Step 3 washer(9), M8 nut(8). Gear Motor Assembly(17） M8 Washer (9) M8 Nut (8) Assemble drum Assembly(4) to motor(17) using motor shaft pin(5) and Step 4 cotter pin(7). SECURE COTTER PIN PROPERLY BEFORE MIXING. Drum Assembly(4) G1/4’’...
- Page 12 ASSEMBLY Step 5 Slide two handles into lower frame(3) tube. Handle(14) Handle(14) Attach top cover(13) to lower frame(3) & handles using M8 Step 6 screw(12), M8 washer(11) and M8 cap nut(16). Note:The plug cable of gear motor can use A cable tie to fasten. Top Cover(13) M8*45 Screw(12) R14M8...
- Page 13 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. Handle Drum Mixer Blade Motor Support Leg Wheel General Operating Instructions WARNING! TO PREVENT SERIOUS INJURY : Do not operate the Mixer on slopes or uneven surfaces with an incline greater than 5º.
- Page 14 General Operating Instructions (Continued) 4. Add material to the Drum. Typical maximum quantities include: two 80lb bags of cement mix and up to 2 gallons of water. Refer to material manufacturer’s instructions. 5. Once materials are mixed, Tilt drum opening downward and dump materials where needed.
- Page 15 Cleaning, Maintenance, and Lubrication 1. BEFORE EACH USE, inspect the general condition of the tool. Check for: • Loose hardware • Misalignment or binding of moving parts • Cracked or broken parts • Damaged electrical wiring • Damaged or cracked belts •...
- Page 16 LIMITED WARRANTIES Our company makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
