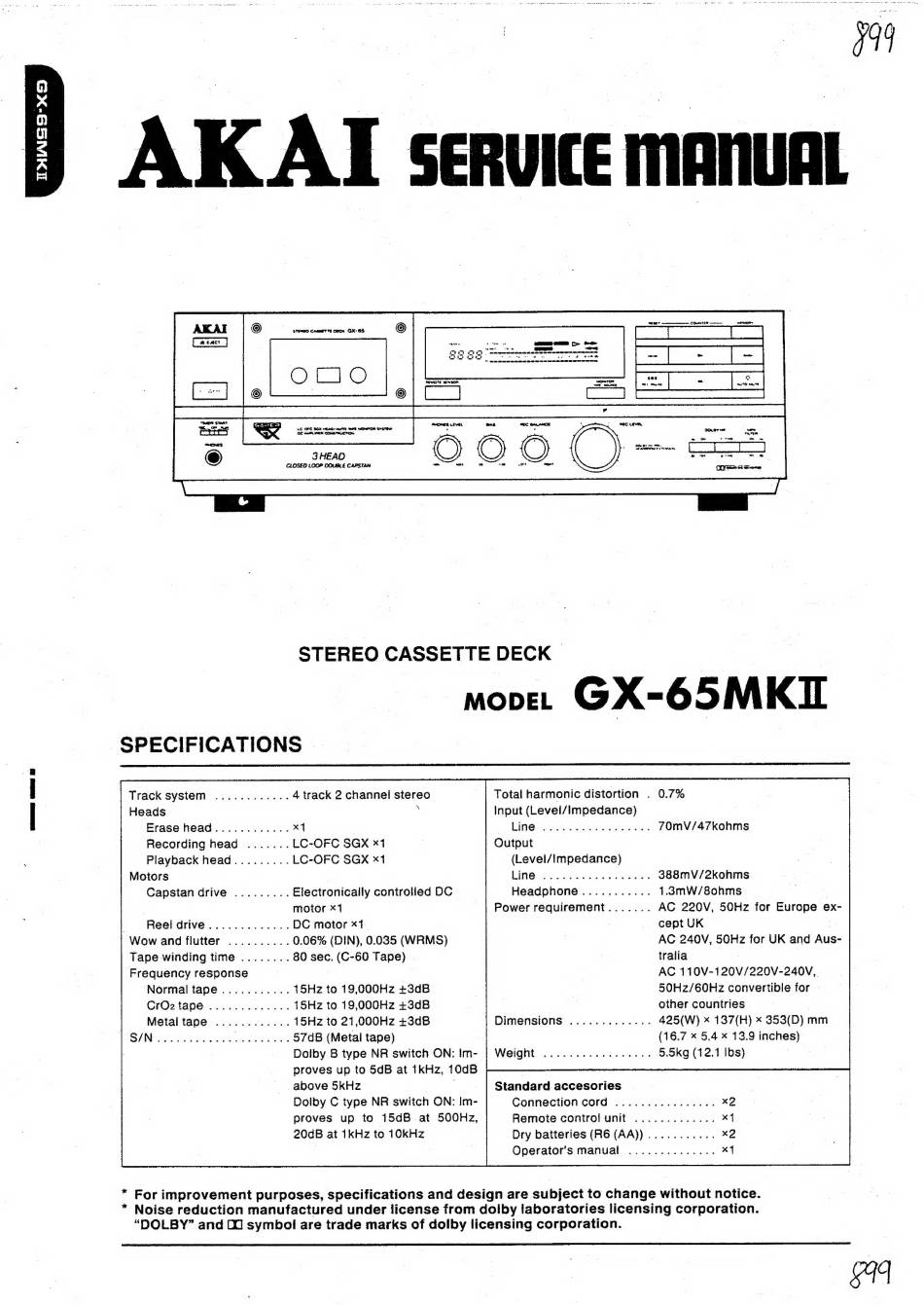

Akai GX-65MKII Service Manual

AC ОРС BOR «яла? AUTO Wet MONTOS затты
ОС мл ча соната сте
STEREO CASSETTE ОЕСК
мор. GX-65MKII
SPECIFICATIONS
Track system
Heads
Erase head
Recording head
Playback head
Motors
Capstan drive
. Reel drive
Wow and flutter
Tape winding time
Frequency response
Normal tape
CrO» tape
Metal tape
4 track 2 channel stereo
x1
LC-OFC SGX x1
LC-OFC SGX x1
Electronicaily controlled DC
motor x1
DC motor х1
0.06% (DIN), 0.035 (WRMS)
80 sec. (C-60 Tape)
15Hz to 19,000Hz 35308
15Hz to 19,000Hz +3dB
15Hz to 21,000Hz +ЗаВ
57dB (Меча tape)
Dolby B type NR switch ON: ዘጠ-
proves up to 595 at 1kHz, 10dB
above 5kHz |
Dolby C type NR switch ON: Im-
proves up to 15dB at 500Hz,
20dB at 1kHz to 10kHz
Total harmonic distortion .
Input (Level/Impedance)
Headphone
Power requirement
Dimensions
Weight
Standard accesories
Connection cord
Remote control unit
Dry batteries (R6 (AA))
Operator's manual
y
0.7%
70mV/47kohms
388mV/2konms
1.3mW/8ohms
AC 220V, 50Hz for Europe ex-
cept UK
AC 240V, 50Hz for UK and Aus-
tralia
AC 110V-120V/220V-240V,
50Hz/60Hz convertible for
other countries
425(W) x 137(H) x 353(D) mm
(16.7 x 5.4 x 13.9 inches)
5.5Ка (12.1 105)
* For improvement purposes, specifications апа design аге subject to change without notice.
* Noise reduction manufactured under license {гот doiby laboratories licensing corporation.
"DOLBY" and ПП symbol are trade marks of dolby licensing corporation.
249
