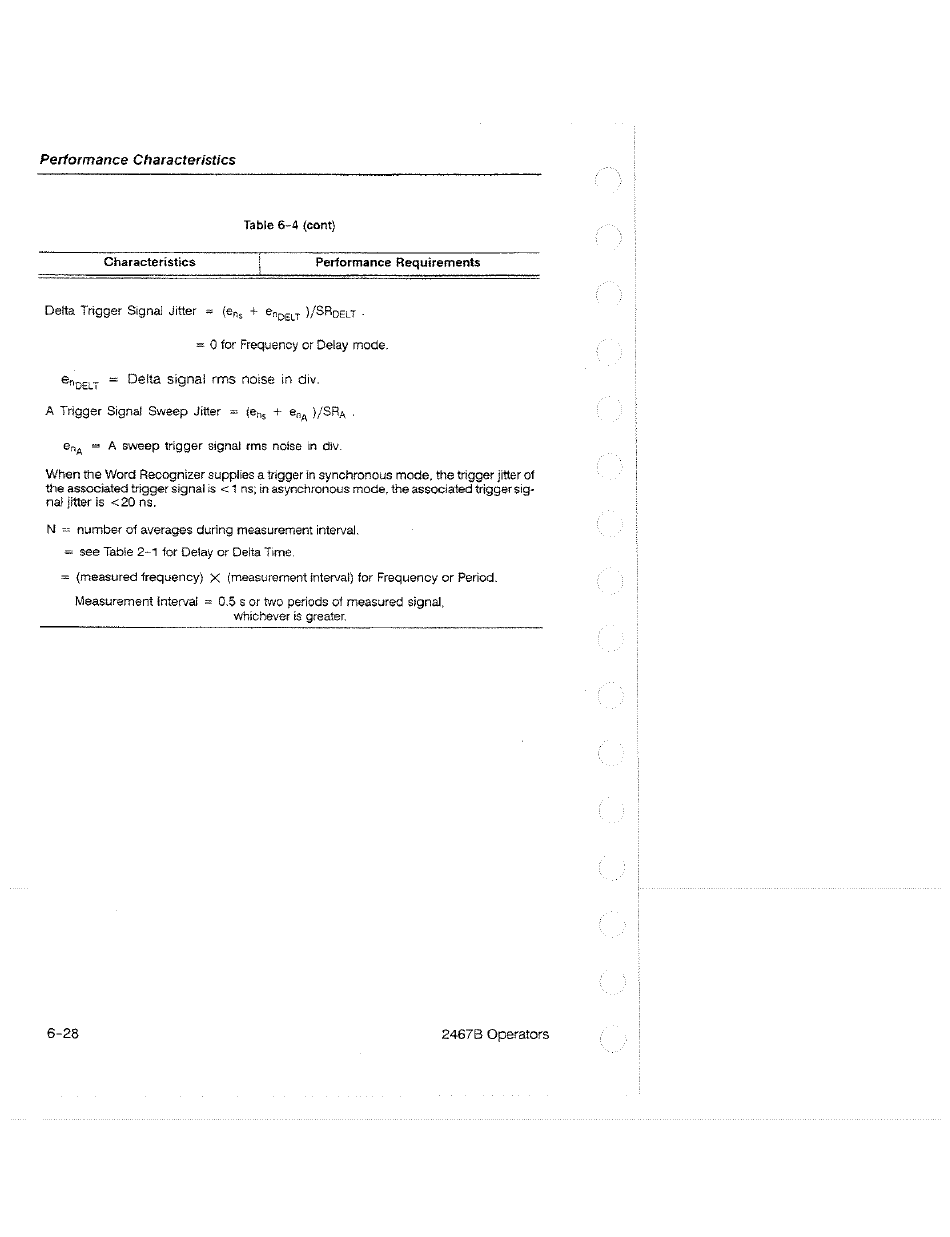

Tektronix 2467B Operator's Manual page 150

Table 6~4 (cant)
Characteristics Performance Requirements
Delta Trigger Signal Jitter = (@n, + Cage )/SRoeir -
= 0 for Frequency or Delay mode.
Snot = Delta signal rms noise in div.
A Trigger Signal Sweep Jitter = (eng + @np )/SRa .
€,, = A sweep tigger signal rms noise in div.
A
When the Word Recognizer supplies a trigger in synchronous mode, the trigger jitter of
the associated trigger signal is <1 ns; in asynchronous mode, the associated trigger sig-
N = number of averages during measurement interval.
= see Table 2-1 for Delay or Delta Time.
= (measured frequency) X (measurement interval) for Frequency or Period.
Measurement Interval = 0.5 s or two periods of measured signal,
whichever is greater.
6-28 2467B Operators
