Installation Guide 875-3012-000, Rev. A

Overview:

This installation guide lists all the parts in the

Bantam 2 GPS System kit and provides instructions on installing the

components, associated cables, and switches.

Read this manual thoroughly before beginning the installation.

If you have any questions, contact your local dealer or Satloc Customer Service.

Need help?

Do you have a question about the BANTAM 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Satloc BANTAM 2

Page 1 This installation guide lists all the parts in the Bantam 2 GPS System kit and provides instructions on installing the components, associated cables, and switches. Read this manual thoroughly before beginning the installation. If you have any questions, contact your local dealer or Satloc Customer Service.
Page 2 Satloc. Latest Version of the Bantam 2 Installation Guide Satloc is dedicated to providing updated versions of installation guidebooks for its customers. For the latest version of the Bantam 2 Installation Guide, visit www.Satloc.com.
Page 3 TABLE OF CONTENTS Safety Information Chapter 1: Getting Started Chapter 2: Mounting the Components Chapter 3: Connecting the CPU Appendix A: A21 GPS Antenna Mounting Dimensions...
Page 4 Read and Follow Safety Messages Satloc GPS systems are intended for VFR (visual flight rules) use only. Information provided is intended solely for recording aerial application activities and enhancing application guidance. Satloc is not a replacement for best pilot practices. Follow required procedures, flight rules, and regulations during use.
Page 5 Chapter 1: Getting Started 1.1 Parts Lists 1.2 Upgrade Kit Parts List 1.3 Component Weights 1.4 Planning the Installation Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...

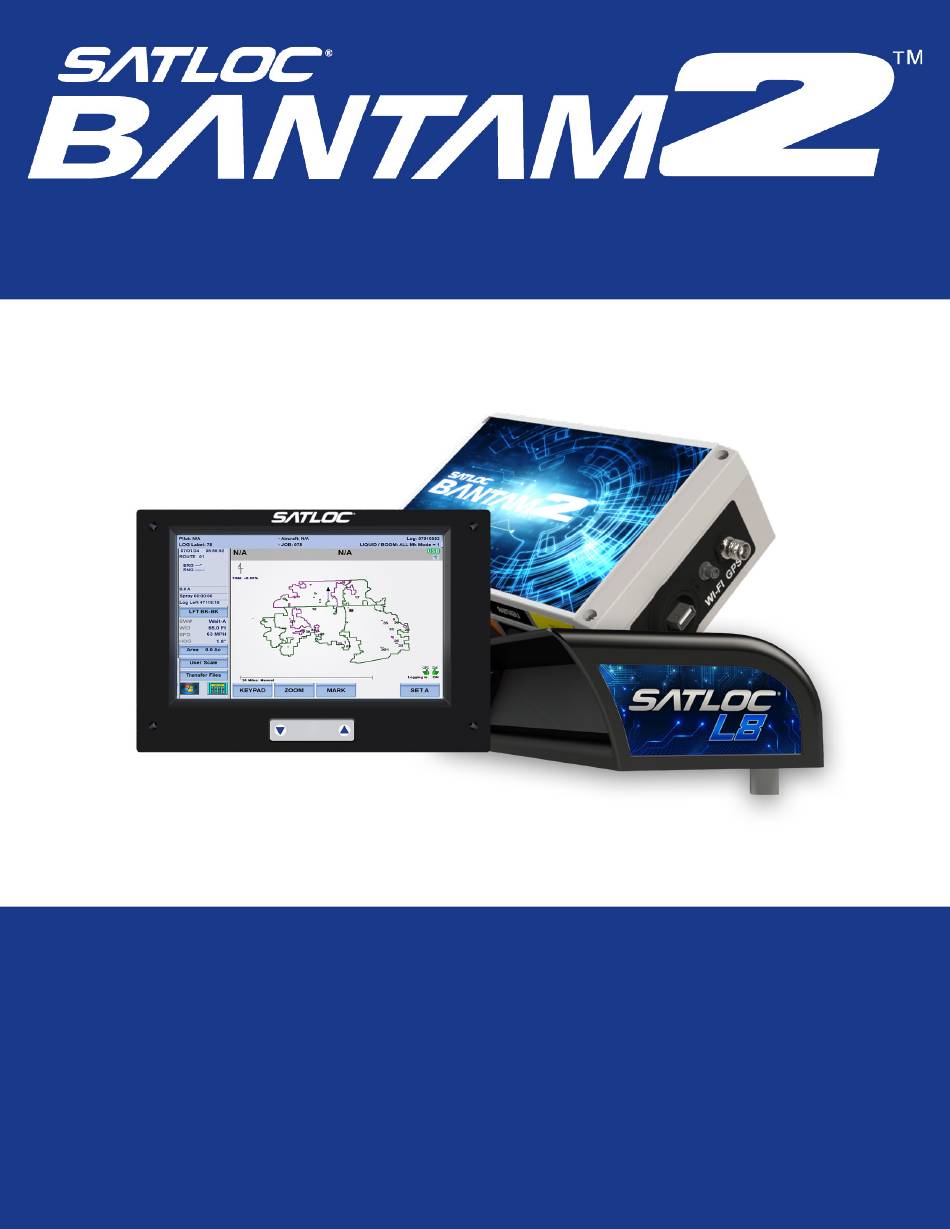

Page 6 The system modules that ship with the Bantam 2 and connect to the CPU are: • 7” or 9” color touchscreen • Lightbar • Antenna Read this entire manual before beginning installation. Failure to follow instructions in this manual could void your warranty.
Page 7 710-0031-000 1.2 UPGRADE KIT PARTS LIST Review the contents of your Bantam 2 purchase to ensure the components are not damaged. Tables 1-1 and 1-2 represent full kits with 9 inch or 7 inch displays. Optional upgrade kits are only included with additional purchase(s).
Page 8 1.3 COMPONENT WEIGHTS & DIMENSIONS Table 1-5: Bantam 2 Component Weights & Dimensions Component Weight Dimensions CPU with cables 11.4 lbs (1.99 kg) CPU Dimensions: 3.15” H x 8.65” W x 5.50” D (8 cm H x 21.97 cm W x 13.97 cm D) 9”...
Page 9 Chapter 2: Mounting the Components 2.1 Mounting the CPU 2.2 Mounting the Touchscreen 2.3 Installing Cockpit Parts 2.4 Mounting the L8 Lightbar 2.5 Mounting the A21 GPS Antenna Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 10 Before mounting (installing) components, read the short section, “Planning the Installation” in Chapter 1. Remember, the Bantam 2 CPU has no quick-release mechanism—it is a semi-permanent fixture once installed. Your decisions in the installation process carry significant weight. Install the CPU in any location inside the aircraft that has the necessary room and is sheltered from the elements, such as a storage compartment, in the cab, or behind the seat.
Page 11 Based upon different installs, screw size and length varies for hard mounting the touchscreen. Larger screws could crack or otherwise damage the screen. Do not drill holes in screen cover. This will void the warranty. Table 2-2: Bantam 2 Touchscreen Mount Parts PART NUMBER...
Page 12 Cable, USB-extender, Type A M/M, 5M In case WiFi is unavailable, a USB port can be installed for use with the Bantam 2. It is recommended to install USB port in cockpit where it can be easily accessed. The cable from the USB port is 5 meters long or 16.4 feet in length;...
Page 13 Nut, #10-32 2 (of 10) *81219 Washer, #10-32 050-2205-000 L8 Lightbar cable for Bantam 2 *Part of Hardware Kit A drill and 1/4" drill bit are required for this installation. P/N 710-2003-000 Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 14 Plus or minus 10 Do not hit any wires or degrees. Examples shown below. hydraulics while drilling. Check both sides of the aircraft before drilling. Figure 2-2: Tilting Angles of L8 Lightbar Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 15 DIMMER control provide additional support to Note: There are two size options knob on the Bantam 2 prevent the bolts from pulling for the Adel clamps. power panel located in through the surface under the cockpit.
Page 16 Positioning the antenna less than 5 ft (1.524 m) from transmitting antennas of any frequency may cause overloading of RF circuits. Satloc recommends flush mounting the antenna along the aircraft’s centerline, with an unobstructed view of the sky NOTE: and horizon.
Page 17 (PN 000# to antenna PN150-0056- 150- to the aircraft’s surface. 0056-01) Black RTV silicone can be used to seal around the antenna base. A doubler backing plate may be necessary. Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 18 Chapter 3: Connecting the CPU 3.1 Warnings 3.2 CPU Cable Installation 3.3 CPU Cable Connections 3.4 Powering the System On/Off Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 19 Do not coil excess cable length. Doing so can introduce noise and cause signal degradation. GPIO Cable Warnings • Do not connect Spray On/Off leads to a flow system if it contains live voltage. Table 3-1: Connections to the Bantam 2 CPU PART NUMBER DESCRIPTION PHOTOGRAPH...
Page 20 Table 3-1: Connections to the Bantam 2 CPU — Continued PART NUMBER DESCRIPTION PHOTOGRAPH Cable, Video, Signet LCD 051-0326-000# 804-4001-000 Antenna, WIFI, dual band 82404 Diode This diode provides transient voltage NOTE: suppression. In other words, it absorbs random and irregular bursts in the voltage.
Page 21 • Voiding of warranty. Don’t Cross Excess Cables Don’t Kink and Bundle Cables Don’t Run Cables Near High Current Devices Don’t Coil Cables! Never force cable connections, finger-tighten only (do not use tools). Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 22 Install each Bantam 2 cable between the CPU and a modular component. Each cable is labeled with its name and part number. A color band is also on each cable. The color matches a port on the Bantam 2 CPU port where the connection needs to be inserted.
Page 23 2. Connect the metal Bendix connector on the lightbar cable to the matching connector on the bottom of the lightbar. Figure 3-3: Lightbar Cable (PN 050-2205-000) to Bantam 2 CPU Lightbar Port Adjust the lightbar NOTE: brightness by turning the...
Page 24 3. Label power panel in the cockpit. 4. Connect the Conxall connector on the power cable (726-1096-000#) to Figure 3-8: Power Cable Harness (PN 726-1096-000#) to Bantam 2 CPU Power Port the CPU port labeled ‘POWER’ (see Figure 3-8). 5. Connect the red and black power...
Page 25 CPU. To place the WIFI antenna somewhere besides on side of the Bantam 2’s CPU, use optional cable PN 050- 2521-000. This cable will connect directly into the WIFI port on side of the Bantam 2’s CPU while the other end will connect to the WIFI antenna.
Page 26 3.4 POWERING THE SYSTEM ON/OFF Powering the System ON 1. The Bantam 2 power panel’s ON/OFF switch supplies power to the CPU and the touchscreen. Note that the touchscreen also has its own ON/OFF power button, which functions when the lever switch is ON.
Page 27 APPENDIX A: A21 GPS ANTENNA MOUNTING DIMENSIONS The “Antenna Mounting Dimensions” drawing is not a template. Instead, it gives the mounting dimensions. When mounting the antenna, measure off the center, where zero initiates. Satloc Bantam 2 Installation Guide 875-3012-000, Rev. A...
Page 28 Technical Support To find an authorized dealer near you, visit www.satloc.com. Satloc support@satloc.com Call or Text 833-4-Satloc (833) 472-8562 www.satloc.com 1206 Hatton Rd. Wichita Falls, TX 76302...
