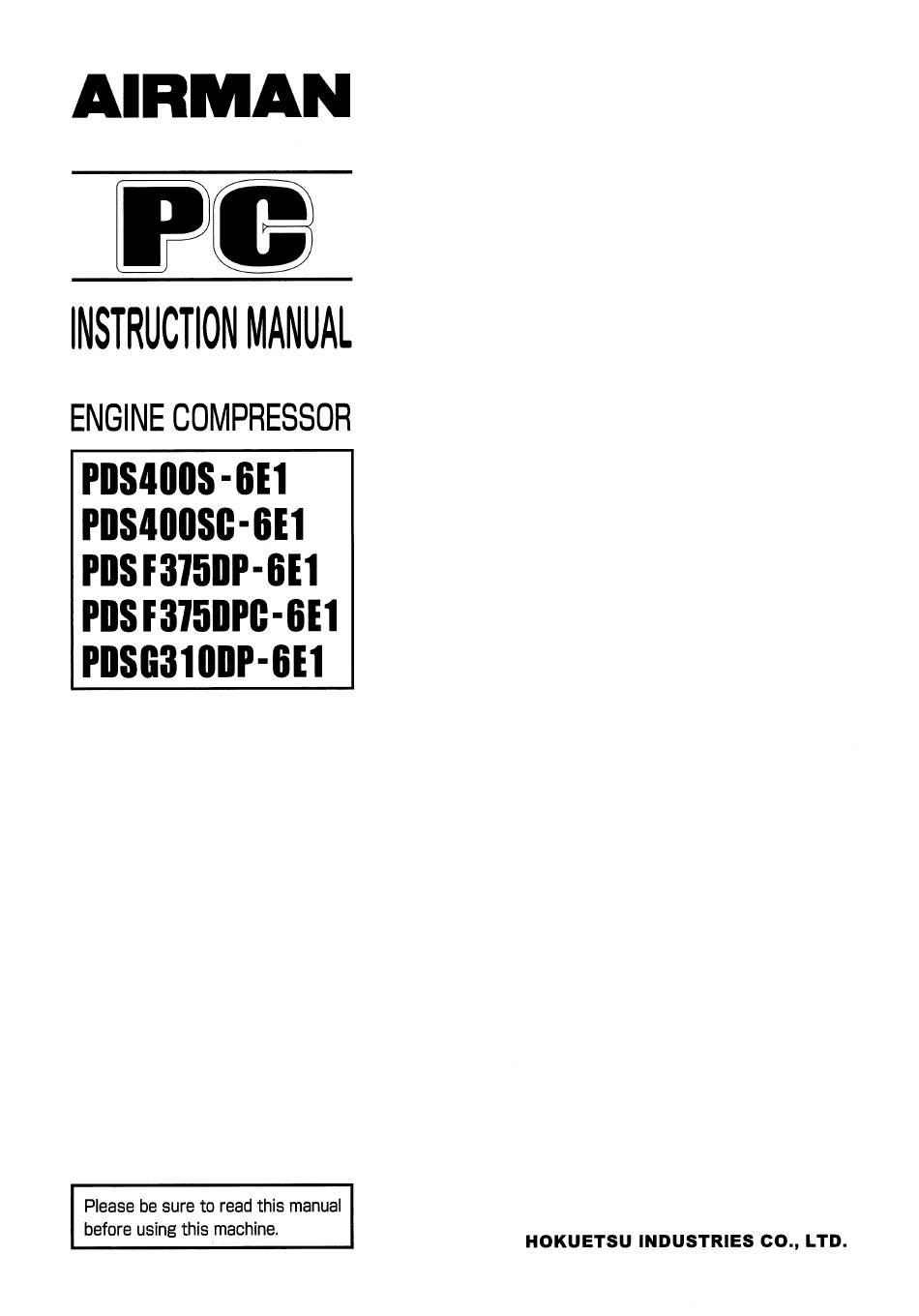

- Page 2 Preface / Table of Contents Thank you for having selected our “AIRMAN” product. Keep this manual at hand to refer to it always when necessary. When this manual is missing or damaged, order it from our office nearby or distributor. Make sure that the manual is included with the machine when it is handed over to another user.
- Page 15 2.Installation 2.3 Installation conditions The machine has to be parked horizontally on a level place. The machine has to be parked right-angled on a slope. The machine has to be parked on a slope within an angle of 15° ...
- Page 24 3.Operation 3.3.3 Check compressor oil level Place the machine on level ground when checking the Separator oil level. Receiver tank After checking and confirming that the residual Upper limit pressure in separator receiver tank is 0PSI replenish the tank with compressor oil so that the oil level is kept higher than the Lower limit of level Lower limit gauge plate.
- Page 42 3.Operation 3.6.4 MAINTENANCE The maintenance intervals for major maintenance items can be set at the user's discretion. <MAIN SCREEN> <Procedure> 1. Press “MAINTENANCE” on “HOME” screen-1/2. 2. “MAINTENANCE” screen is displayed. 3. Press “NEXT” to show engine items. 4. Press the scheduled time to display the numeric keypad. Set the desired times.
- Page 56 5.Periodic inspection/Maintenance 5.3 Periodic Inspection List (Unit:Hour) Maintenance Daily 250 500 1,000 2,000 3,000 6,000 12,000 Page Check compressor oil level. ○ Drain separator receiver tank. ○ Check for looseness in pipe connecting part, 3-10 ○ and wear and tear of pipe. Check oil, water, fuel and air leak.
- Page 57 5.Periodic inspection/Maintenance ◎Refer to engine operation manual for inspection and maintenance of an engine. For the details, contact our office nearby or distributor. (Unit:Hour) Maintenance Daily 1,000 2,000 3,000 6,000 Page Check engine oil level. ○ Check coolant level. ○ Check fuel ○...
- Page 70 5.Periodic inspection/Maintenance 5.5.19 Change oil separator 2,000 hours or every 2 years Even before the periodic interval time of replacement, replace the oil separator element whenever the oil consumption increases and also oil is found mixed in the discharge air. When replacing oil separator, contact directly us or distributor because it requires expert technical knowledge.
- Page 74 5.Periodic inspection/Maintenance 5.5.34 Change rubber coupling Every 3 years When replacing it, contact directly us or distributor because it requires expert technical knowledge. 5.5.35 Change oil seal/bearing Every 12,000 hours When replacing it, contact directly us or distributor because it requires expert technical knowledge. 5.5.36 Change solenoid valve Every 12,000 hours When replacing it, contact directly us or distributor because it requires expert technical knowledge.
- Page 76 7.Specifications 7.1 Specifications PDS400SC-6E1 Model PDS400S-6E1 （After-cooler type） Type Single-stage oil cooled, screw type compressor Free air delivery 400(11.3) /min) Working pressure psi(MPa) 100(0.69) Engine speed(full load) 2,600 Engine speed(unload) 1,300 Lubricating system Forced Lubrication by compressed pressure Driving system Direct driving with rubber coupling Receiver tank capacity cu in.(L)
- Page 77 7.Specifications PDSF375DPC-6E1 Model PDSF375DP-6E1 PDSG310DP-6E1 （After-cooler type） Type Single-stage oil cooled, screw type compressor 330/375 270/310 Free air delivery /min) (9.3)/(10.6) (7.6)/(8.7) 150/100 200/150 Working pressure psi(MPa) (1.03)/(0.69) (1.4)/(1.03) Engine speed(full load) 2,400/2,700 Engine speed(unload) 1,300 Lubricating system Forced Lubrication by compressed pressure Driving system Direct driving with rubber coupling Receiver tank capacity...
- Page 78 7.Specifications 7.2 Outline drawing PDS400S-6E1 PDSF375DP-6E1 PDSG310DP-6E1...
- Page 79 7.Specifications PDS400S-6E1 PDSF375DP-6E1 PDSG310DP-6E1...
- Page 80 7.Specifications PDS400SC-6E1 (After-cooler type) PDSF375DPC-6E1 (After-cooler type)
- Page 81 7.Specifications PDS400SC-6E1 (After-cooler type) PDSF375DPC-6E1 (After-cooler type)
- Page 83 7.Specifications 7.3 Wiring Diagram PDS400S, SC-6E1 / PDSF375DP,DPC-6E1 / PDSG310DP-6E1 A191059E...
- Page 84 7.Specifications A191060E...
- Page 85 7.Specifications 7.4 Piping Diagram 7.4.1 Compression air・Compressor oil PDS400S-6E1...
- Page 86 7.Specifications PDSF375DP-6E1 7-10...
- Page 87 7.Specifications PDSG310DP-6E1 7-11...
- Page 88 7.Specifications PDS400SC-6E1 (After-cooler type) 7-12...
- Page 89 7.Specifications PDSF375DPC-6E1 (After-cooler type) 7-13...
- Page 90 7.Specifications 7.4.2 Fuel Piping A180470E 7-14...
- Page 93 发行者 总公司 工厂 新泻县燕市下粟生津 3074 TEL 0256-93-5571 FAX 0256-94-7567 （禁止擅自复印以及转载） ＨＯＫＵＥＴＳＵ ＩＮＤＵＳＴＲＩＥＳ ＣＯ., ＬＴＤ. 8TH FLOOR SHINJUKU SAN-EI BLDG, 22-2 NISHI-SHINJUKU 1-CHOME,SHINJUKU-KU TOKYO 160-0023 JAPAN TEL:81-3-3348-7281 FAX:81-3-3348-7289 URL:http//www.airman.co.jp Copyright(C)2020 HOKUETSU INDUSTRIES CO., LTD. All Rights Reserved. 39600 38442 Printed NOV.2024...
