barbas BOX 35-40-105 Installation And Maintenance Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Installation and maintenance manual
BOX 35-40-105 / BOX 35-40-85 / BOX 35-40-70
BOX 40-40-85 / BOX 40-40-70

This product is not suitable for primary heating purposes
Serial number:
Production date:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BOX 35-40-105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for barbas BOX 35-40-105

Summary of Contents for barbas BOX 35-40-105

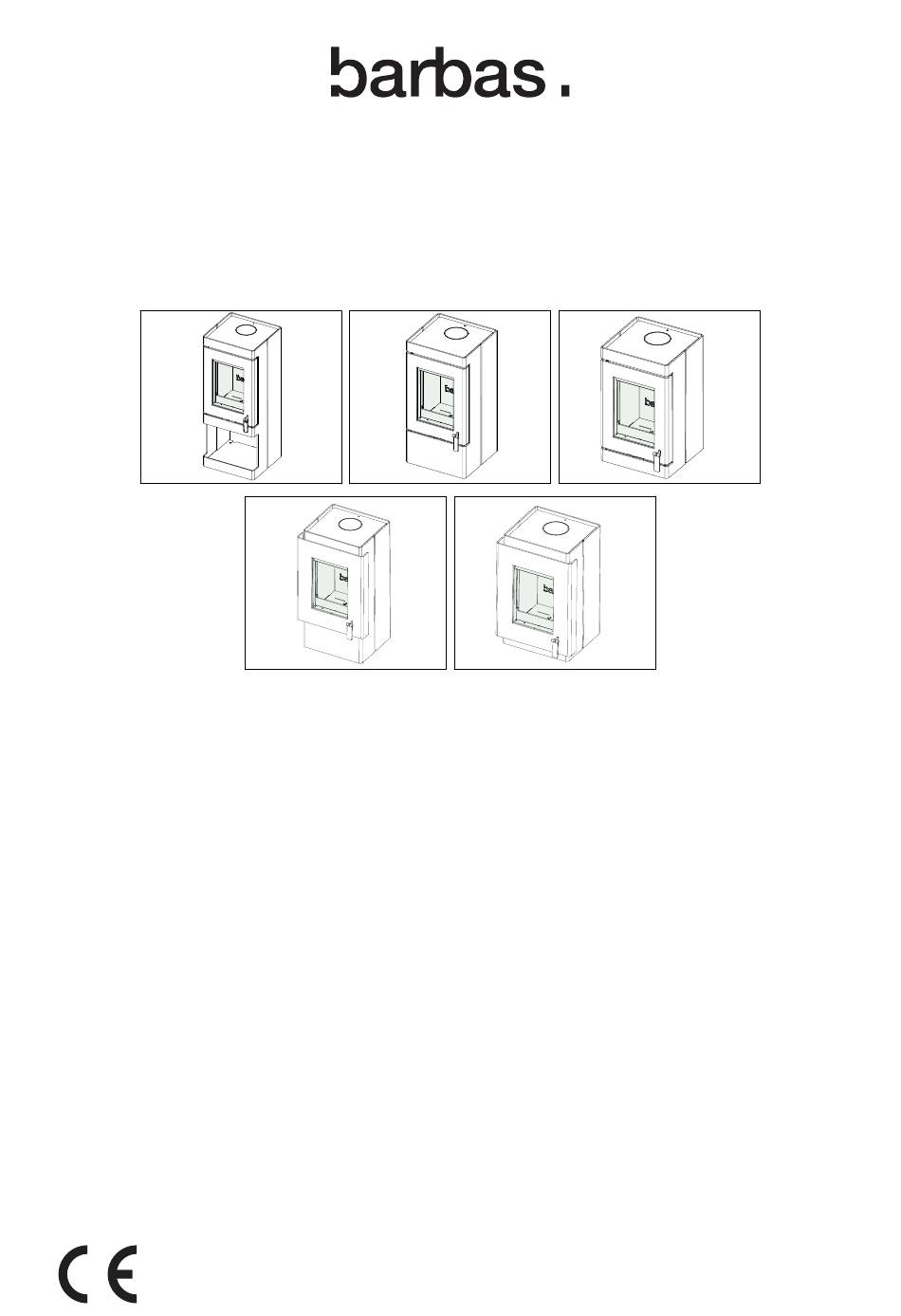

  • Page 1 Installation and maintenance manual BOX 35-40-105 / BOX 35-40-85 / BOX 35-40-70 BOX 40-40-85 / BOX 40-40-70   This product is not suitable for primary heating purposes Serial number: Production date:...
  • Page 2 Barbas Bellfires BV. This document could contain technical inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document from time to time in the contents thereof.
  • Page 3 Contents Contents Declaration of Performance..............5 BOX 35-40-105..........................5 BOX 35-40-85..........................6 BOX 35-40-70..........................7 BOX 40-40-85..........................8 BOX 40-40-70..........................9 About this document................10 How to work with this document....................10 Warnings and cautions used in this document................10 Related documentation......................10 Description..................... 11 Overview of the front of the appliance..................11 Overview of the bottom of the appliance..................13...
  • Page 4 Installation of the baffles......................27 8.7.1 Install the baffle....................... 27 8.7.2 Install the heat shield...................... 27 Technical data..................29 Technical data BOX 35-40-105, BOX 35-40-85, BOX 35-40-70..........29 Technical data BOX 40-40-85, BOX 40-40-70................31 Product information according regulation (EU) 2015/1185............33 Dimensions.................... 34 10.1...
  • Page 5 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 6 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 7 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 8 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 9 Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5)
  • Page 10 About this document About this document This document shows the necessary information to do the installation and maintenance on: . • BOX 35-40-105 • BOX 35-40-85 • BOX 35-40-70 • BOX 40-40-85 • BOX 40-40-70 in this document referred to as 'the appliance'. This document is an essential part of your appliance.
  • Page 11 Description Description Overview of the front of the appliance BOX 35-40-105 BOX 35-40-85 BOX 35-40-70 Door handle Glass Primary air inlet Grate Log guard Ash tray (under the grate) Combustion chamber panels Flue connection Control lever Wood log storage module...
  • Page 12 Description   BOX 40-40-85 BOX 40-40-70 Door handle Glass Primary air inlet Grate Log guard Ash tray (under the grate) Combustion chamber panels Flue connection Control lever BOX 35 40...
  • Page 13 Description Overview of the bottom of the appliance BOX 35-40-105 BOX 35-40-85 BOX 35-40-70 Air wash inlet Heat hield Baffle Secondary air inlet Connection for external combustion air supply BOX 35 40...
  • Page 14 Description   BOX 40-40-85 BOX 40-40-70 Air wash inlet Heat hield Baffle Secondary air inlet Connection for external combustion air supply BOX 35 40...
  • Page 15 Description Overview of the rear of the appliance BOX 35-40-105 BOX 35-40-85 BOX 35-40-70 Connection for external combustion air supply Rear flue connection BOX 35 40...
  • Page 16 Description   BOX 40-40-85 BOX 40-40-70 Connection for external combustion air supply Rear flue connection Intended use The appliance is intended for indoor use to heat the room wherein it is installed. Do not use it for other purposes. It is not allowed to use the appliance as primary heating appliance. The appliance is intended for use with wood logs or wood briquettes as fuel.
  • Page 17 Safety Safety Safety instructions for installation Warning: • Installation must be done by a qualified installer. • Install the appliance in accordance with the following installation instructions and the national and local applicable regulations. • Make sure that the area around the fireplace is free of flammable material at all times.
  • Page 18 Clearances Clearances Warning: • Obey the instructions in this section. Failure to follow these instruction can create a fire hazard. • Do not put the appliance directly against a flammable or non-flammable wall. Caution: Make sure that flammable materials near the appliance can never reach a temperature above 85 degrees centigrade Safety distances BOX 35 40...
  • Page 19 Clearances BOX 35-40-105 Minimum dis- Minimum dis- tance to flamma- tance to nonflam- Label Remark ble materials in mable materials in cm Install a non-flammable floor plate (floor stone) in front of the appliance when put on a flammable floor. The floor plate must have a minimum depth...
  • Page 20 Installation requirements Installation requirements Requirements on the installation of the appliance • Make sure that the location agrees with the safety requirements. Refer to section • Make sure the floor is made of concrete or a solid pedestal of non-combustible material.
  • Page 21 Installation requirements • Only connect the appliance to a chimney that is also connected with other appliances if it is permitted by local regulations and if the chimney allows to connect multiple appliances to it. Ask your installer for advice. •...
  • Page 22 Installation Installation Install the appliance Put the appliance in the designated position. Obey the safety distances. Refer to section If necessary, put a nonflammable floor plate in front of the appliance. Refer to section Make sure that the flue connection on on top of the appliance is correct in line with the flue pipe to the ceiling.
  • Page 23 Installation 7.2.2 Connect the optional external air supply (bottom connection) Remove the round break out plate at the bottom of the appliance with a hammer. If necessary, put the connection ring in the open external air inlet opening. Bend out the 3 lips on the connection ring to attach the connection ring on the inlet opening.
  • Page 24 Clean the inside of the appliance with a soft brush. Clean the metal parts on the outside of the appliance with a dry lint free cloth. Use Barbas heat resistant paint spray to repair lacquer damage. Combustion air supply Make sure that the inlet of the pipe of the external combustion air supply is not blocked by leaves or other debris.
  • Page 25 Maintenance Lift the grate and remove from the combustion chamber. Lift the ash tray and remove from the combustion chamber. Make sure ashes do not fall onto the air valve. Empty the ash tray an dispose the ashes as rest waste. Removal of the heat shield and baffle Note: Make sure to remove all ashes and unburnt wood from the combustion...
  • Page 26 Maintenance Push up the front of the heat shield (1) and pull it forward (2) and move downward to a vertical position (3). Remove the heat shield from the appliance. 8.5.2 Remove the baffle 8.5.1 Only do this procedure after finish of the procedure in section Push up the rear side of the baffle and move it as far back as possible.
  • Page 27 Maintenance Installation of the baffles 8.7.1 Install the baffle. Refer to section 8.7.2 Install the heat shield. Refer to section 8.7.1 Install the baffle Move the baffle up under an angle into the combustion chamber (1) and put the right side of the baffle above the side panels (2) on the right.
  • Page 28 Maintenance Turn the screw down with a 3 mm hexagonal key until it is in the screw hole in the heat shield. Turn the nut up with a 10 mm fork spanner and tighten it. BOX 35 40...
  • Page 29 Technical data Technical data Technical data BOX 35-40-105, BOX 35-40-85, BOX 35-40-70 Name Barbas Model BOX 35-40-105 BOX 35-40-85 BOX 35-40-70 EPREL registration number 2037687 2072565 2075857 EN 13240:2001-A2:2004 EN16510-1 annex D, E, F Tested in accordance with BS 3841-2:1994...
  • Page 30 Technical data • side wall • back wall • floor Refer to section • ceiling Used materials • Combustion chamber back and Vermiculite 750 kg/m / Heat resistant ceramic 1600 side panels kg/m • Combustion floor and grate Steel Heat resistant ceramic 2000 kg/m / Vermiculite 750 •...
  • Page 31 Technical data Technical data BOX 40-40-85, BOX 40-40-70 Name Barbas Model BOX 40-40-85 BOX 40-40-70 EPREL registration number 2110567 2110577 EN 13240:2001-A2:2004 EN16510-1 annex D, E, F Tested in accordance with BS 3841-2:1994 Energy efficiency index Energy efficiency class Fuel...
  • Page 32 Technical data • Combustion floor and grate Steel Heat resistant ceramic 2000 kg/m / Vermiculite • Baffle 750 kg/m • Heat shield Steel • Front glass Heat resistant ceramic glass The specific precautions that shall be taken Installation and maintenance manual when the local space heater is assembled, in- stalled or maintained, are listed in the attached User manual...
  • Page 33 Technical data Product information according regulation (EU) 2015/1185 Model identifier BOX 35-40-105 Equivalent models BOX 35-40-85; BOX 35-40-70; BOX 40-40-85; BOX 40-40-70 Indirect heating function Direct heat output 5.3 kW Indirect heat output - kW Emissions at nominal heat Emissions at minimum heat...
  • Page 34 Dimensions Dimensions 10.1 Dimensions BOX 35-40-105 166** *) Optional chimney connection (Ø 130) at the rear. **) Combustion air inlet openings (Ø 80 mm) at the rear and bottom of the appliance. BOX 35 40...
  • Page 35 Dimensions 10.2 Dimensions BOX 35-40-85 166 ** *) Optional chimney connection (Ø 130) at the rear. **) Combustion air inlet openings (Ø 80 mm) at the rear and bottom of the appliance. BOX 35 40...
  • Page 36 Dimensions 10.3 Dimensions BOX 35-40-70 166 ** *) Optional chimney connection (Ø 130) at the rear. **) Combustion air inlet openings (Ø 80 mm) at the rear and bottom of the appliance. BOX 35 40...
  • Page 37 Dimensions 10.4 Dimensions BOX 40-40-85 201** *) Optional chimney connection (Ø 130) at the rear. **) Combustion air inlet openings (Ø 80 mm) at the rear and bottom of the appliance. BOX 35 40...
  • Page 38 Dimensions 10.5 Dimensions BOX 40-40-70 201** *) Optional chimney connection (Ø 130) at the rear. **) Combustion air inlet openings (Ø 80 mm) at the rear and bottom of the appliance. BOX 35 40...
  • Page 39 Dimensions BOX 35 40...
  • Page 40 Warranty Terms Warranty Terms To make a claim under the warranty, it is important to register the Barbas appliance after pur- chase via www.barbasbellfires.com. Barbas Bellfires Warranty Terms Barbas Bellfires B.V. guarantees the quality of the supplied Barbas appliance and the quality of the materials used.
  • Page 41 Article 5: Warranty period This warranty will only be granted during the warranty period. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase. For other parts of the Barbas appliance, a similar warranty applies from the moment of purchase for a period of two years.
  • Page 42 Warranty Terms BOX 35 40...
  • Page 43 Warranty Terms BOX 35 40...
  • Page 44 Your Barbas dealer 23.09.2024 - 355362 - 410-004...
