Forms + Surfaces VAO BOLLARD Installation/Wiring Instructions

MOUNTING KIT (SOLD SEPARATELY)
a
7/32" hex bit for tamper-
resistant bolts

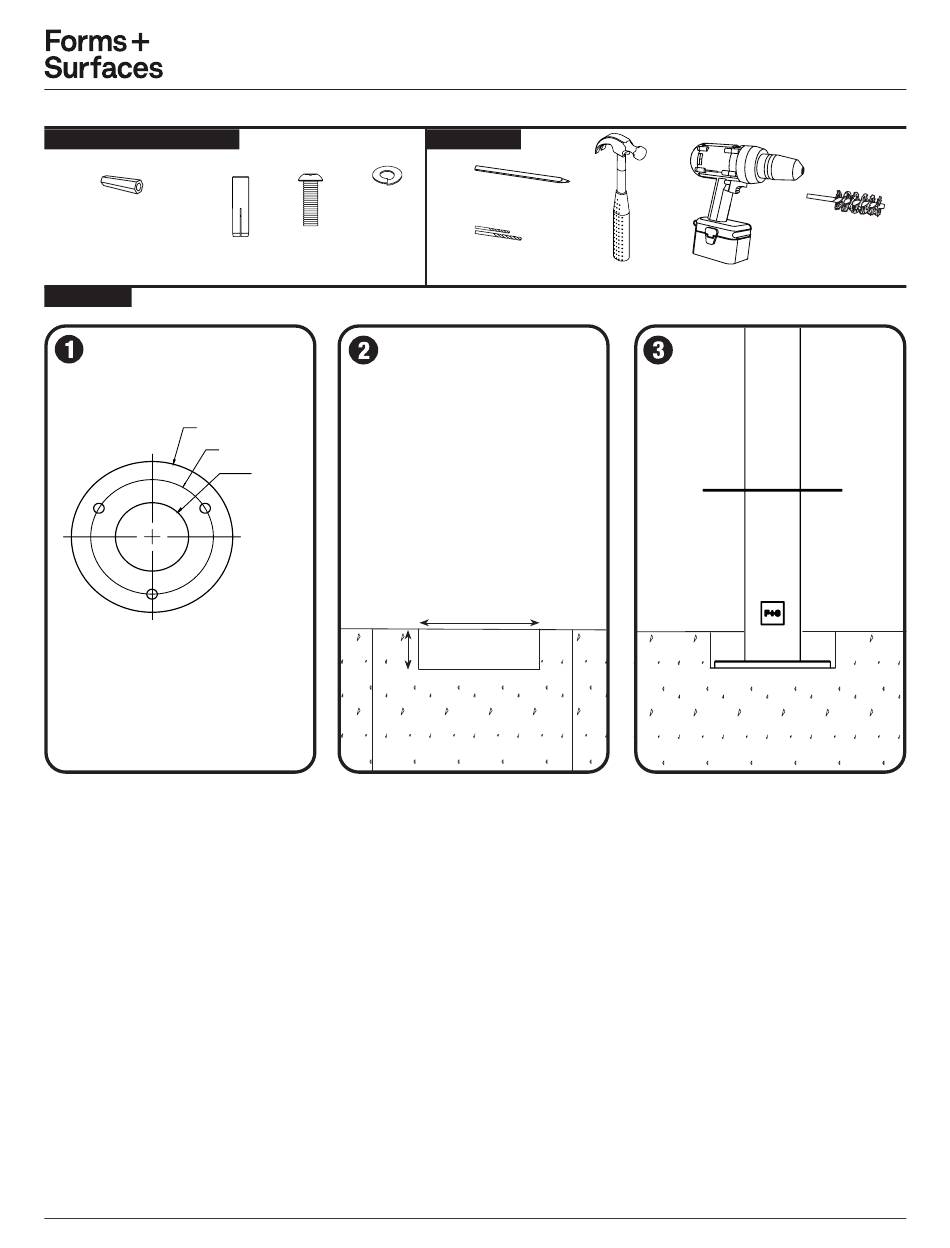

STEP BY STEP FOR ALL LOW PROFILE MOUNTED VAO BOLLARDS
6.25"
Prepare the incoming power
• Before pouring concrete footer, run
properly sized conduit and cabling to
each luminary location according to local
code requirements. Refer to figure above
for dimensions for conduit entry envelope
size and location on luminary.
Note: Conduit should not protrude
more than 2" above mounting surface.
Forms+Surfaces is not responsible for
site preparation and footings.
