Summary of Contents for Hokuetsu AIRMAN SDG150S-8E1

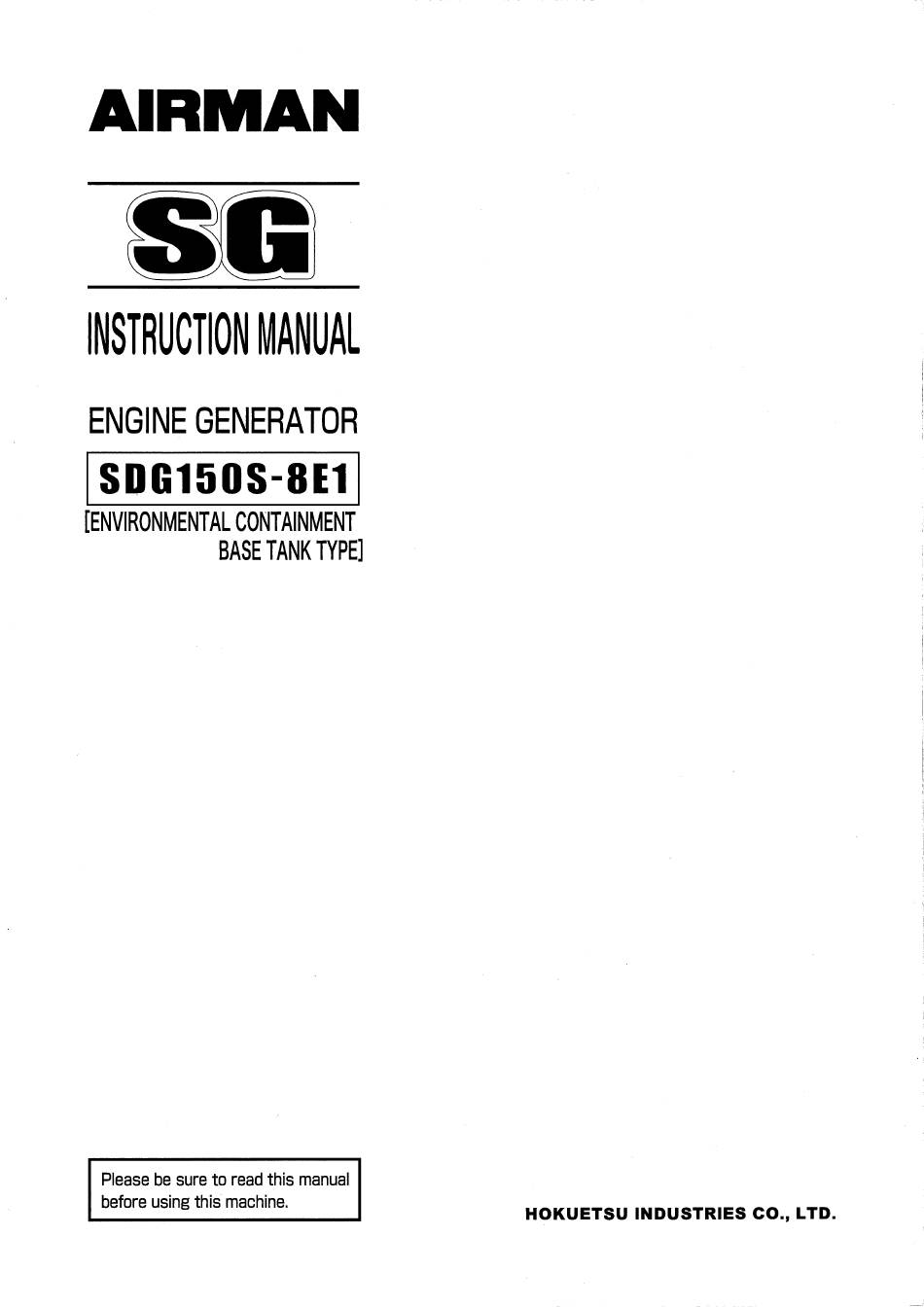

- Page 2 Preface / Table of Contents Thank you for choosing our “AIRMAN” product. Keep this manual at hand and refer to it as necessary. If this manual is missing or damaged, order a new copy from our office or distributor. Make sure that the manual is included with the machine when it is handed over to another user.
- Page 49 5. Periodic Inspection/Maintenance 5.4 Maintenance 5.4.1 Change Engine Oil At 100 hours for the first change and every 500 hours thereafter When checking, replenishing, and draining the engine oil, be sure to wait 10 to 20 minutes after engine stops to allow it to cool down. <Procedure>...
- Page 61 5. Periodic Inspection/Maintenance 5.4.22 Change Coolant (LLC) Every 2 years When removing the surge tank pressure cap, be sure to stop the machine and wait until the coolant cools down. <Procedure> Remove the two bolts securing the inspection cover on top of bonnet [A]. To drain coolant, remove surge tank pressure cap [B], and then loosen the radiator drain valve.
- Page 64 7. Specifications Specifications Model SDG150S-8E1 Exciting system Brushless Armature connection Star with Neutral ZigZag Phase number 3 Phase-4 wires 1 Phase-3 wires Power factor Frequency Rated output kVA (kW) 150(120) 87(87) Voltage 240/120 Amps Model JOHN DEERE 6068HFG05 Type 4 Cycle, water cooled, direct injection, Turbocharged, EGR Aftertreatment DOC＋SCR Number of cylinders...
- Page 65 7. Specifications 7.2 Outline drawing [Unit : in.] A180103E-1_in.
- Page 66 7. Specifications [Unit : mm] A180103E-1_mm...
- Page 67 7. Specifications 7.3 Generator Wiring Diagram A180075E-1...
- Page 68 7. Specifications 7.4 Engine Wiring Diagram A180074E...
- Page 69 7. Specifications Piping Diagram [Fuel piping] A1800117 [DEF piping] A210117...
- Page 70 7. Specifications [Coolant piping] A210118...
- Page 73 发行者 总公司 工厂 新泻县燕市下粟生津 3074 TEL 0256-93-5571 FAX 0256-94-7567 （禁止擅自复印以及转载） ＨＯＫＵＥＴＳＵ ＩＮＤＵＳＴＲＩＥＳ ＣＯ., ＬＴＤ. 8TH FLOOR SHINJUKU SAN-EI BLDG, 22-2 NISHI-SHINJUKU 1-CHOME,SHINJUKU-KU TOKYO 160-0023 JAPAN TEL:81-3-3348-7281 FAX:81-3-3348-7289 URL:http//www.airman.co.jp Copyright(C)2022 HOKUETSU INDUSTRIES CO., LTD. All Rights Reserved. 39600 04851 Printed JUL.2023...
