SUBWOOFER (ELEPHANT) ALIGNMENT

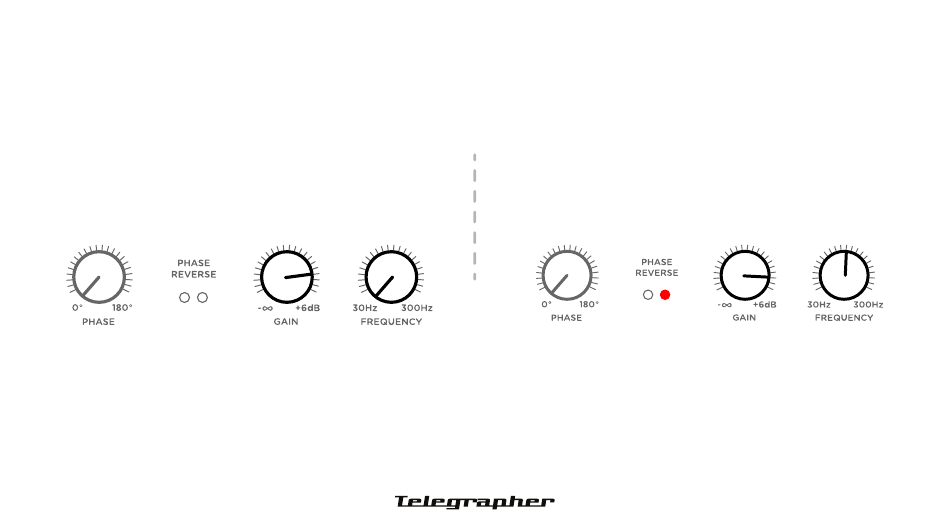

Here are the quick settings* for Gorilla and Fox, to start with.
FOX
GORILLA
Phase: Reversed using the button
Gain: 0 dB (set at 80% of the pot)
Gain: +2 dB (set at 90% of the pot)
Frequency: 30 Hz
Frequency: 150 Hz
* Depending on the placement of the speakers and the subwoofer, these settings need adjustment. Always use a
measurement microphone for precise subwoofer alignment to ensure the best audio performance.
Attention: Do not start with the Frequency at 300 Hz and Gain at maximum. This is never necessary and may damage
your driver.
