Summary of Contents for Telegrapher GORILLA
- Page 1 USER MANUAL GORILLA...
- Page 2 TELEGRAPHER LOUDSPEAKERS...
- Page 3 HAND MADE WITH LOVE IN ISTANBUL SERIAL NO INSPECTED BY...
- Page 4 We take great pride in our work, and we hope these monitors allow you to realize your audio endevours at the very highest level.

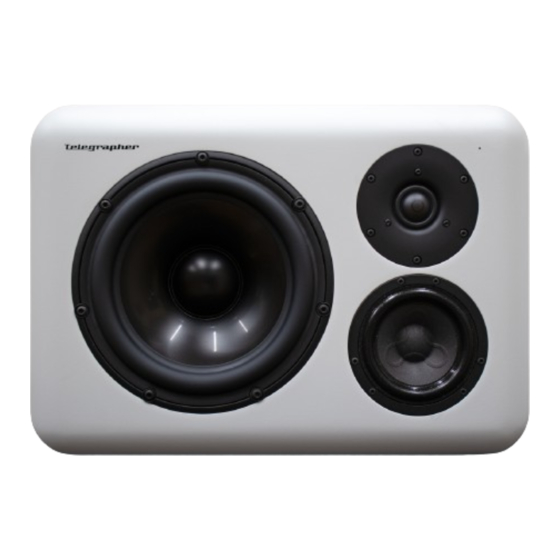

- Page 5 ABOUT GORILLA Gorilla is an analog mid-field monitor designed for critical mixing and mastering applications.
- Page 6 SAFETY PRECAUTIONS Your speakers operate at mains voltage and carries hazardous voltages. Do not expose your speakers to rain, water or This symbol indicates that this product moisture to reduce the risk of fire or electric shock. should not be disposed of with your household waste.
- Page 7 Operating Voltage Min Voltage: 100-120 Volts AC ±10% Max Voltage: 200-240 Volts AC ±10% Voltage Frequency: 47 - 63 Hz Connector: 3-pin IEC 250 Volts AC, 10A male This symbol is intended to alert the user to Input power: 800W max the prescence of uninsulated “dangerous voltage”...
- Page 8 Amplifiers Dimensions 318 x 450 x 275 Tweeter 100 Wrms all dimensions are in mm ( H x W x D) 350 Wrms Woofer 350 Wrms Weight Load-Independent Frequency Response 27 Kg each Frequency-Independent THD Over Current / Thermal Protection Auto Standby...
- Page 9 Tweeter: 2.5 cm coated textile diaphragm Patented Symmetrical Drive (SD-2) Mid: 12 cm paper cone Patented Symmetrical Drive (SD-3) LEFT RIGHT Woofer : 22 cm aluminium cone The tweeters should stay inside Patented Symmetrical Drive of your listening point.
- Page 10 LET’S GET STARTED!
- Page 11 INPUT SELECT STAND BY 1: SHIELD UNBALANCED 2: HOT 3: COLD BALANCED...
-
Page 12: Source Selection
SOURCE SELECTION Please use the input select button at the back panel to choose your input. You can use balanced XLR cable and unbalanced RCA cable. INPUT SELECT STAND BY... -
Page 13: Stand By On/Off
STAND BY ON/OFF Using the selection button at the back panel, set your stand by on or o . The Gorilla turns o after 120 mins if the stand by function is on and there is no signal. INPUT SELECT... - Page 14 Balanced Analog Input Pin 1: Shield Pin 2: Positive (+ or hot) Pin 3: Negative (- or cold) Input impedance: Di erential: 500 KOhm Common Mode: 300 KOhm Nominal level: TBD...
- Page 15 Unbalanced Analog Input Sleeve: Shield (Ground) Tip: Positive (+ or hot) Input impedance: 300 kOhm Nominal level: TBD...
- Page 16 SERVICE Modifications by any persons other than Telegrapher Loudspeakers authorized personnel voids the warranty!
- Page 17 Do not leave your loudspeakers on at night unmonitored! Turn o after use!
- Page 18 In this case, unplug the power cord, wait for the back panel cool down and red light go o (usually 3 minutes), plug the power cord and power on the Gorilla. The Gorilla should resume normal operation. If not, please contact Telegrapher Loudspeakers.
- Page 19 CLIPPING...
-
Page 20: Troubleshooting
NO POWER Check the power outlet. The internal fuse may be blown. This fuse is not user replaceable. Please contact Telegrapher Loudspeakers for more information about service and repair. NO SOUND A protection might be triggered. Is the module overheated? Try cycling the mains power. - Page 21 SUPPORT We will be happy to assist you! The latest manuals, datasheets and some fun stu can be found in our web site. You can also contact us for any questions using the form on our web site.
-
Page 22: Connect With Us
CONNECT WITH US www.telegrapherloudspeakers.com telegrapherloudspeakers telegrapherloudspeakers... - Page 23 LIMITED WARRANTY Telegrapher Loudspeakers warrants this device for a period of two years after the original date of purchase against defects due to faulty workmanship or materials arising from normal use of the device. The warranty covers working parts that a ect the function of the device. It does NOT cover cosmetic deterioration caused by fair wear and tear, or damage caused by accident, misuse, neglect or transporting.
- Page 24 TELEGRAPHER LOUDSPEAKERS...
