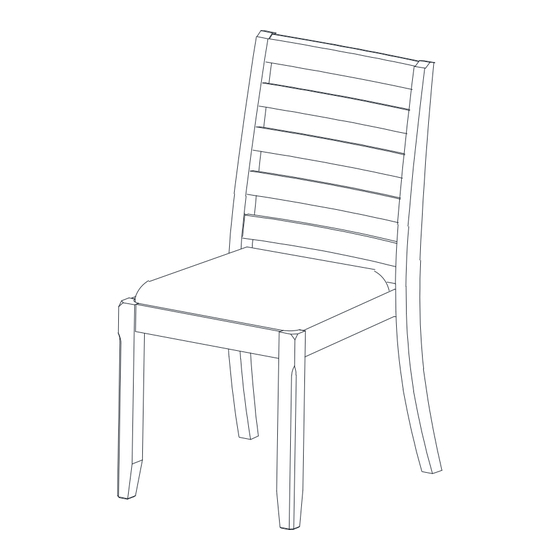

- Page 1 ASSEMBLY INSTRUCTIONS SKU: X1P Description: XTENCZAR CUSHIONED CHAIR-LADDER BACK Product Dimension: 19.4"W x 22.3"D x 35.4"H Cube Size : 38.2”x 21.8”x11.6” NW: 31.9 LBS GW: 38.5 LBS XTENCZAR CUSHIONED CHAIR-LADDER BACK - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing our product. This product has been designed for easy assembly and long lasting use. Please take the time to read and follow the assembly instructions carefully. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware.
- Page 3 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Long bolt Medium bolt (M6x70mm) (M6x60mm) Lock Washer Short bolt (M6x40mm) 6.5X9) ∅...
- Page 4 STEP 2 Attach frame (B) to the back (A) by using short bolts (3) long bolts (1) lock washers (4) flat washers (5). Tighten with Allen Key (6). Note: DO NOT fully tighten any of the bolts until the last step. STEP 3 Attach front legs (C) to the seat frame.
- Page 5 STEP 4 Put the chair on a flat level surface to make sure the chair is level and then tighten the all bolts. XTENCZAR CUSHIONED CHAIR-LADDER BACK - 5 -...
