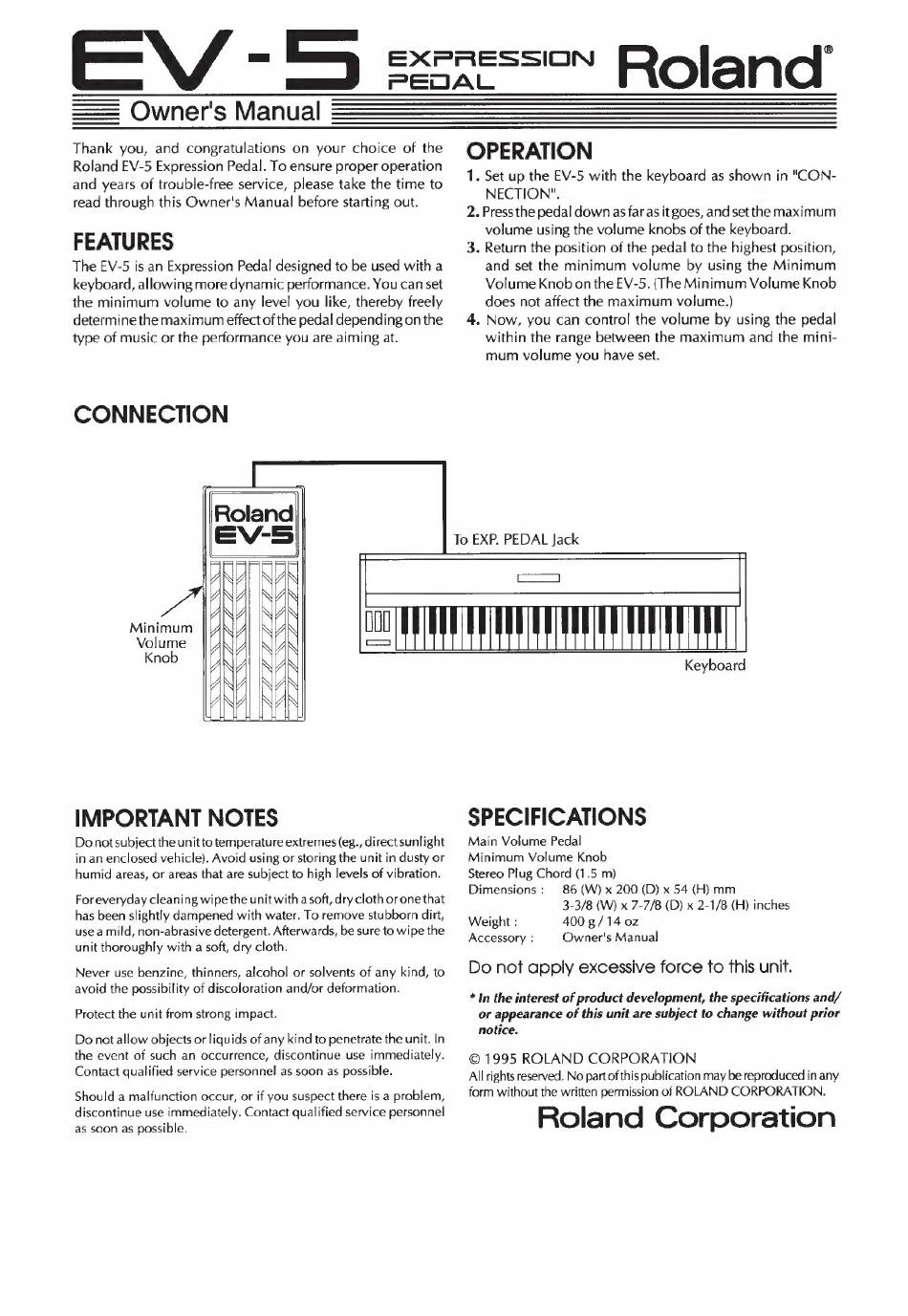

Roland EV-5 Owner's Manual

EV -5
== Owner's Manual
EXPRESSION
PEdAL
Roland
Thank you, and congratulations on your choice of the
Roland EV-5 Expression Pedal. To ensure proper operation
and years of trouble-free service, please take the time to
read through this Owner's Manual before starting out.
FEATURES
The EV-5 is an Expression Pedal designed to be used with a
keyboard, allowing more dynamic performance. You can set
the minimum volume to any level you like, thereby freely
determine the maximum effect of the pedal depending on the
type of music or the performance you are aiming at.
CONNECTION
Minimum
Volume
Knob
IMPORTANT NOTES
Do not subjectthe unit to temperature extremes (eg., direct sunlight
in an enclosed vehicle). Avoid using or storing the unit in dusty or
humid areas, or areas that are subject to high levels of vibration.
For everyday cleaning wipe the unit with a soft, dry cloth or one that
has been slightly dampened with water. To remove stubborn dirt,
use a mild, non-abrasive detergent. Afterwards, be sure to wipe the
unit thoroughly with a soft, dry cloth.
Never use benzine, thinners, alcohol or solvents of any kind, to
avoid the possibility of discoloration and/or deformation.
Protect the unit from strong impact.
Do not allow objects or liquids of any kind to penetrate the unit. In
the event of such an occurrence, discontinue use immediately.
Contact qualified service personnel as soon as possible.
Should a malfunction occur, or if you suspect there is a problem,
discontinue use immediately. Contact qualified service personnel
as soon as possible.
SUNT db Abdbddbbdaddbbsddbna
OPERATION
1. Set up the EV-5 with the keyboard as shown in "CON-
NECTION".
2. Press the pedal down as far as it goes, and set the maximum
volume using the volume knobs of the keyboard.
3. Return the position of the pedal to the highest position,
and set the minimum volume by using the Minimum
Volume Knob on the EV-5. (The Minimum Volume Knob
does not affect the maximum volume.)
4. Now, you can control the volume by using the pedal
within the range between the maximum and the mini-
mum volume you have set.
To EXP. PEDAL Jack
Keyboard
SPECIFICATIONS
Main Volume Pedal
Minimum Volume Knob
Stereo Plug Chord (1.5 m)
Dimensions: 86 (W) x 200 (D) x 54 (H) mm
3-3/8 (W) x 7-7/8 (D) x 2-1/8 (H) inches
Weight : 400 g/14 oz
Accessory : Owner's Manual
Do not apply excessive force to this unit.
* In the interest of product development, the specifications and/
or appearance of this unit are subject to change without prior
notice.
© 1995 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any
form without the written permission of ROLAND CORPORATION.
Roland Corporation
