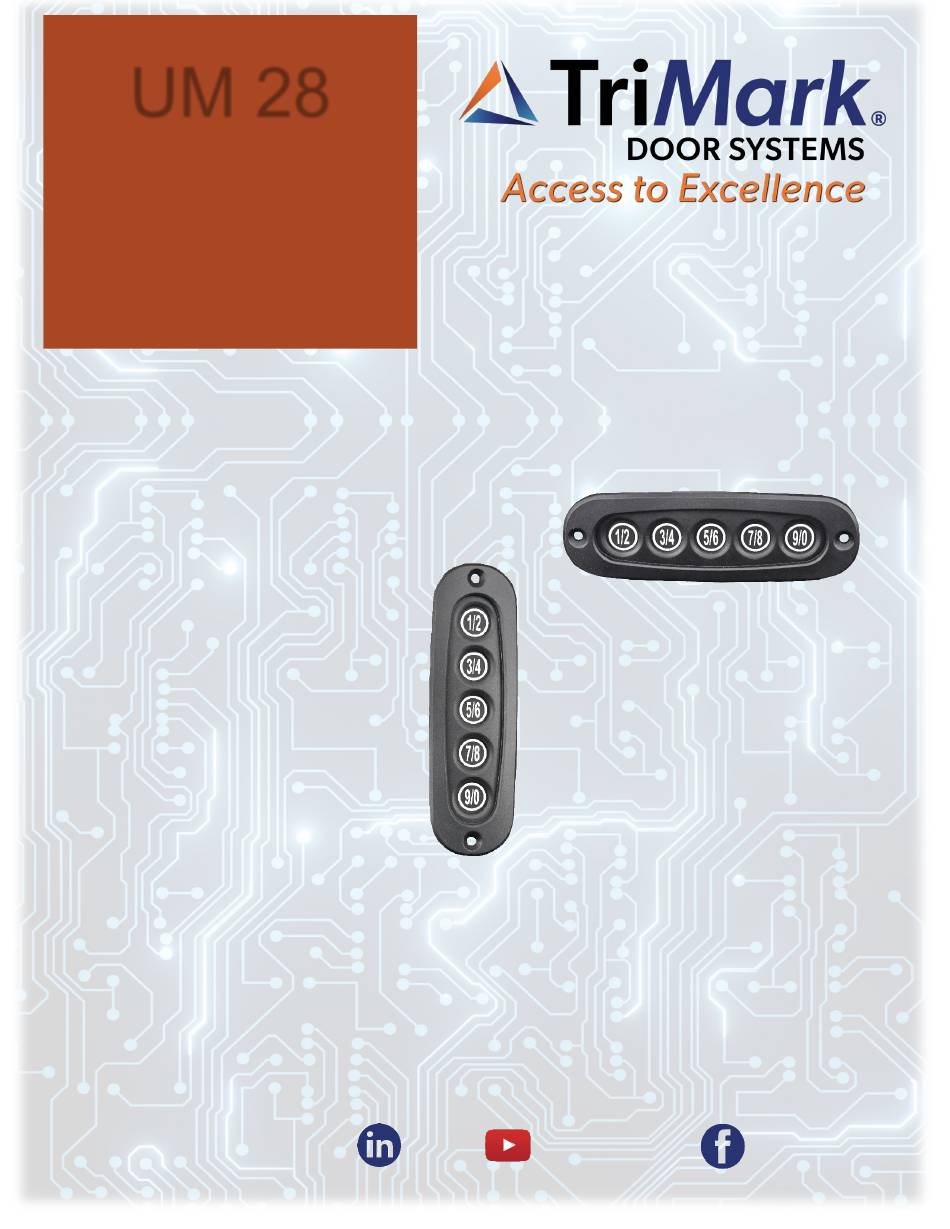

UM 28
Installation Manual
540-0125 e-PAD Power Keypad
40490-01 Power Keypad Horizontal
40490-02 Power Keypad Vertical
TriMark Corporation
500 Bailey Avenue
New Hampton, Iowa 50659
United States
www.trimarkcorp.com
TriMark
TriMark Corporation
TriMark Corporation
12/24-5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TriMark e-PAD 540-0125
Summary of Contents for TriMark e-PAD 540-0125
- Page 1 UM 28 Installation Manual 540-0125 e-PAD Power Keypad 40490-01 Power Keypad Horizontal 40490-02 Power Keypad Vertical TriMark Corporation 500 Bailey Avenue New Hampton, Iowa 50659 TriMark United States TriMark Corporation TriMark Corporation www.trimarkcorp.com 12/24-5...
- Page 2 Appendix C: Warranty ........................7 Appendix D: Trademark Statement ....................7 TriMark makes every attempt to assure that information contained in the User Manual is correct and accurate; however, changes in design, dimension and specifications may occur at any time and without notice.
- Page 3 Introduction This manual provides the necessary information for the proper installation and use of TriMark’s 540- 0125 e-PAD Power Keypad. This stand-alone keypad has recently been redesigned for improved water/dust resistance and solid- state circuit drivers replacing relays capable of driving a 15 Amp momentary output for simple power door lock/unlock or unlatch control.
- Page 4 Keypads Can Store Multiple Entry Codes This allows for the owner to have one code and make separate codes for someone else. • Entry codes can be stored as one Entry code per numbered. • These Entry codes do not allow different functions they only allow for multiple users Doorbell Keypad Numbered Button Entry Code Position...
- Page 5 Programming the Authority Code 1. With the keypad still plugged in providing power and ground, short the yellow wire to the black wire (GND) for a minimum of 5 seconds. This causes the keypad to beep for three seconds. 2. Enter the desired New 5-digit Authority Code, the keypad will beep twice per button press and three times after the 5 digit is entered to indicated receipt of the 5 digit code.
- Page 6 Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Default Authority Default Entry Your Authority Code Your Entry Code 1 Your Entry Code 2 Your Entry Code 3 Your Entry Code 4 Your Entry Code 5 Appendix A: Wiring Details Appendix B: Installing Components Keypad cut-out and mounting information.
- Page 7 If any product supplied by TriMark is found to be defective by TriMark in its sole discretion, TriMark reserves the right to replace, rework, repair, or give credit for defective product. Upon confirmation of the defective condition of the subject part either with return of subject part and/or proper documentation, TriMark will replace such defective product exclusive of any labor, shipping, transportation, or delivery cost associated with the replacement.
