Page 1

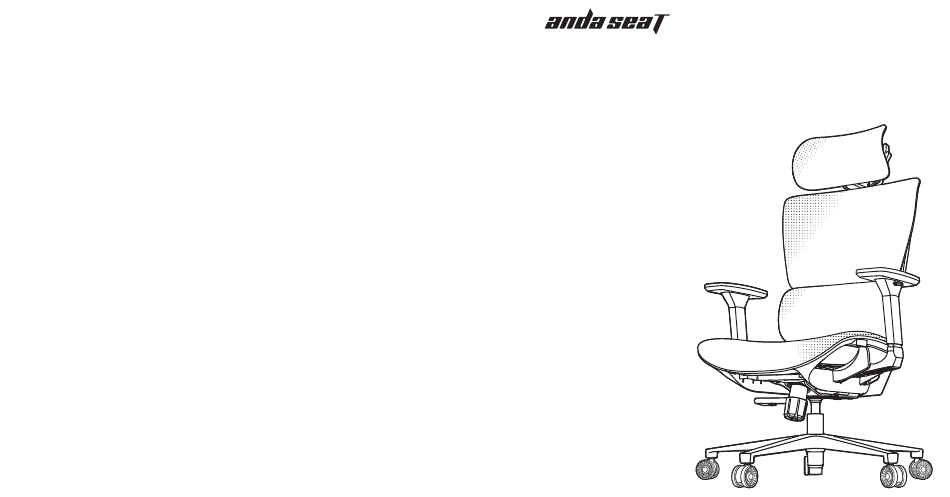

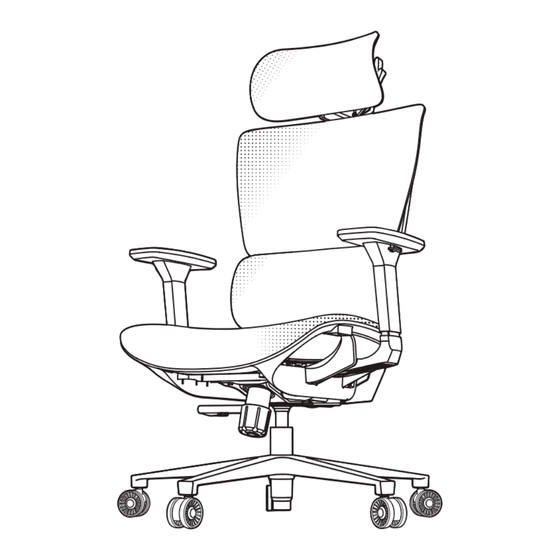

X-AIR MESH CHAIR ASSEMBLY INSTRUCTIONS AND USER GUIDE FOR THE WINNERS’ CIRCLE...
Page 2
Thank you for choosing AndaSeat! Before using this product, please read this manual carefully and keep it available for future reference.
Page 3
WHAT'S IN THE BOX ASSEMBLY STEPS ① Flip the wheelbase over and press the casters into the wheelbase. Headrest ×1 Backrest ×1 Seat Base ×1 Armrests×2 Tilt Mechanism×1 Gas Piston×1 ② Turn the wheelbase right side up, then insert the gas piston in the middle. M8×16 Wheelbase×1 Casters×5...
Page 4
③ ⑤ Flip the seat base over, remove the pre-installed M6×16 bolts and washers. Align the backrest to the seat base and secure them with M8×16 bolts and washers. pre-installed ④ ⑥ Install the tilt mechanism using the M6×16 bolts and washers removed in step ③. Mount the armrests with M6×25 bolts and washers.
Page 5
⑦ ⑨ Attach the headrest onto the backrest with M6×16 bolts. Turn the chair upright to complete the assembly. ⑧ Lift the assembled wheelbase and correctly insert the gas piston into seat.
Page 6
FEATURES HOW TO ADJUST Seat Height: Turn the handle under the right side of the seat clockwise to adjust and release it to lock at ideal heights. 3D Headrest: Up-down adjustability with double-pivot rotation. Headrest: Backrest Recline Hold with both hands to move it up-down or rotate 30° &...
Page 7
ASSEMBLY TIPS 1. Closely follow the Assembly Steps and refer to the illustrations for correct assembly. 2. Check every component in the box and confirm they are in working condition. 3. Safety gloves are recommended for assembly. 4. To prevent accidental component damage, assemble on a clean, even surface with a protective layer. 5.
