Page 1

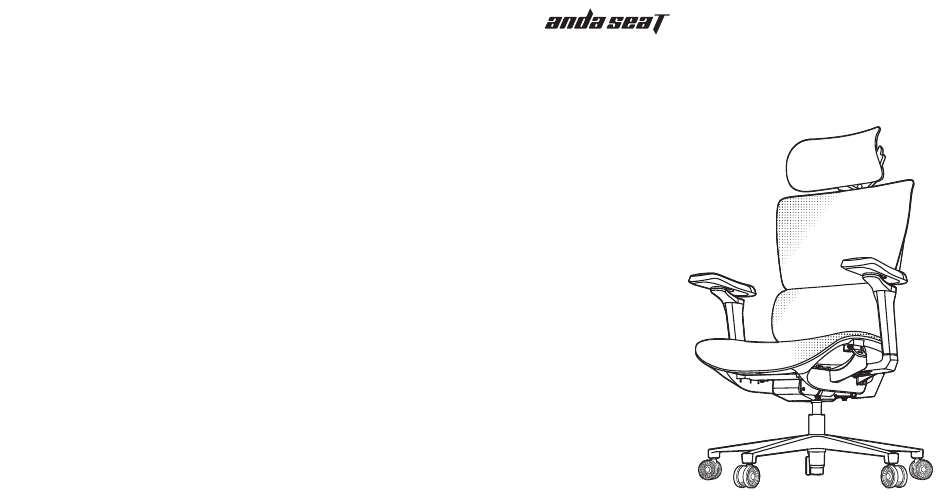

X-AIR PRO MESH CHAIR ASSEMBLY INSTRUCTIONS AND USER GUIDE FOR THE WINNERS’ CIRCLE...
Page 2
Thank you for choosing AndaSeat! Before using this product, please read this manual carefully and keep it available for future reference.
Page 3
WHAT'S IN THE BOX ASSEMBLY STEPS ① Flip the wheelbase over and press the casters into the wheelbase. Headrest ×1 Backrest ×1 Seat Base ×1 Tilt Mechanism ×1 Tilt Mechanism Wire Cover ×1 Armrests ×2 ② Turn the wheelbase right side up, then insert the gas piston in the middle. Gas Piston ×1 Wheelbase ×1 Casters ×1...
Page 4
③ ⑤ Flip the seat base over, remove the pre-installed M6×16 bolts and washers. Thread the tilt mechanism's levers through the hole on the seat base frame and secure them with ST4×35 screws. pre-installed ④ ⑥ Install the tilt mechanism using the M6×16 bolts and washers removed in step ③. Arrange the tilt mechanism wires to the hole's sides.
Page 5
⑦ ⑨ Align the backrest to the seat base and secure them with M8×16 bolts and washers. Attach the headrest onto the backrest with M6×16 bolts. ⑧ ⑩ Mount the armrests with M6×25 bolts and washers. Make sure to correctly identify the left and Lift the assembled wheelbase and correctly insert the gas piston into seat.
Page 6
FEATURES ⑪ Turn the chair upright to complete the assembly. 3D Headrest: Up-down adjustability with double-pivot rotation. Backrest Recline: 105°~126° adaptive recline Backrest Height Adjustment: with a 4-position tilt lock for 8cm up-down range in 7 different different postures. levels for customizable support. Rotating Armrests with 9-Level Heights: Double-pivot rotation: 360°...
Page 7
HOW TO ADJUST ASSEMBLY TIPS 1. Closely follow the Assembly Steps and refer to the illustrations for correct assembly. 2. Check every component in the box and confirm they are in working condition. Headrest: 3. Safety gloves are recommended for assembly. Hold with both hands to move it up-down or rotate 30°...
