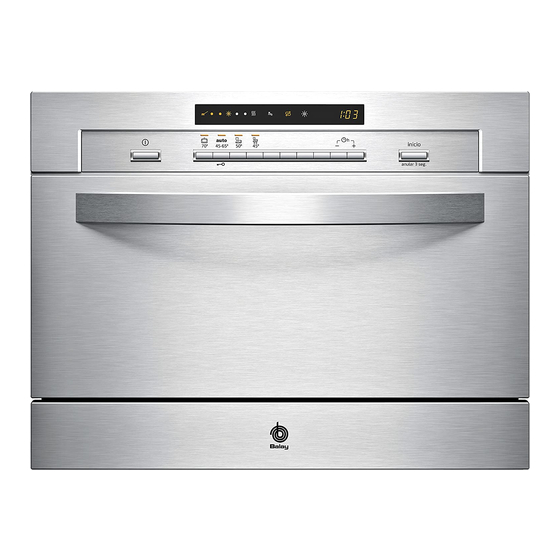

- Page 1 instruction manual Dishwasher w w w . b a l a y . e s...
- Page 2 3 4 5 Reset 3 sec.
-
Page 3: Table Of Contents
en Table of contents Safety instructions ....4 Washing the dishes ....13 Delivery . -
Page 4: Safety Instructions
ã= Safety instructions Warning Knives and other utensils with sharp points Delivery must be placed in the cutlery basket with the points downwards or horizontally on – Check the packaging and dishwasher immediately for damage caused in the knife shelf *. transit. -
Page 5: Damage
Damage Getting to know your – The appliance may be repaired and appliance opened up by a technician only. To do this, disconnect the appliance from the Diagrams of the control panel and the power supply. Pull out the mains plug interior of the appliance can be found in or switch off the fuse. -
Page 6: Water Softening System
Water hardness table Water softening system Water Hardness mmol/l Set value To ensure good washing results, the hardness range on the dishwasher requires soft water, i.e. value machine containing low amounts of lime, otherwise °Clarke white limescale will be deposited on the 0‒8 soft 0‒1.1... -
Page 7: Special Salt
Switching off salt refill indicator/ Special salt water softening system If the salt refill indicator @ is impaired Using special salt (e.g. when using combined detergents Always refill with special salt immediately containing salt component), it can be before switching on the appliance. This switched off. -
Page 8: Rinse Aid
Setting amount of rinse aid Rinse aid The amount of rinse aid dispensed can be set from : to : . This is the factory As soon as the rinse-aid refill indicator H setting : is lit on the fascia, there is still a rinse-aid Do not change the amount of rinse aid reserve of 1 –... -
Page 9: Utensils
Unloading the dishwasher Utensils Hot utensils are sensitive to shock! Therefore, when the programme ends, Not suitable leave the utensils to cool down in the – Cutlery and utensils made of wood. dishwasher until they can be handled. – Delicate decorative glasses, craft and Basket 1B antique utensils. -
Page 10: Folding Spikes
Folding spikes * Detergent * depending on model The spikes can be folded down to improve You can use tablets as well as powder arrangement of pans, bowls and glasses. or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. -
Page 11: Adding Detergent
Adding detergent Combination detergent – If the detergent dispenser 1R is still Apart from conventional detergents (Solo), closed, press the lock 1Z to open the a number of products are offered with detergent dispenser. additional functions. These products contain not only the detergent but also Pour detergent into the dry detergent rinse-aid and salt replacement substances dispenser 1R only (insert tablet flat,... -
Page 12: Overview Of Programmes
Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of utensils Type of soiling Programme Possible additional Programme sequence options Prerinse pots and pans, very adhesive burned- Clean 70°... -
Page 13: Additional Options
Additional options Washing the dishes Programme data * depending on model Additional options can be set with the The programme data (consumption buttons X. values) can be found in the summary of instructions. They refer to normal Ÿ Express Wash * conditions and the water hardness set value : . -
Page 14: Remaining Running Time Display
Remaining running time display Interrupting the programme – Switch off ON/OFF switch (. When the programme is selected, the remaining running time of the programme The LEDs go out. The programme is is indicated on the digital display )". saved. The running time is determined during the If the door was opened on an programme by the water temperature, the... -
Page 15: Intensive Drying
Intensive drying Maintenance and care The final rinse uses a higher temperature which improves the drying result. The A regular inspection and maintenance of running time may increase slightly. your machine will help to prevent faults. (Caution if utensils are delicate!) This saves time and prevents problems. -
Page 16: Filters
Filters Spray arm The filters 1* keep large foreign objects Limescale and dirt from the rinsing water in the rinsing water away from the pump. may block nozzles and the bearing assemblies of the spray arm 1". These foreign objects may occasionally block the filters. -
Page 17: Waste Water Pump
Waste water pump Troubleshooting Large food remnants in the rinsing water not retained by the filters may block the The majority of faults which could occur in waste water pump. The rinsing water is daily operation can be rectified by the then not pumped out and covers the filter. -
Page 18: On The Appliance
Refill indicator for salt @ and/or rinse- ... on the appliance aid H is not lit. Spray arm rotates sluggishly. – Refill indicator/s switched off. – Spray arm blocked. – Adequate salt/rinse-aid available. Cover on the detergent dispenser cannot Refill indicator for special salt @ is lit. be closed. -
Page 19: Customer Service
White stains on the utensils/glasses Customer service remain milky. If phosphate-free detergents are used with If the advice given does not resolve your hard tap water, white deposits may be problem, please contact your customer deposited more easily on utensils and service. -
Page 20: Installation
– Some models: Installation The plastic housing on the water connection contains an electric valve, The dishwasher must be connected the connecting cables are in the supply correctly, otherwise it will not function hose. Do not cut through this hose, properly. -
Page 21: Waste-Water Connection
Waste-water connection Electrical connection – The required work sequence can be – Connect the appliance to an alternating found in the installation instructions. If current only, ranging from 220 V to required, fit a siphon with an drainage 240 V and 50 Hz or 60 Hz via connection. -
Page 22: Transportation
Transportation Waste disposal Empty the dishwasher and secure loose parts. Both the packaging of new appliances and Drain the appliance according to the the old appliances themselves contain following steps: valuable raw materials and recyclable materials. – Turn on the tap. Please dispose of the individual parts –... - Page 23 Childproof lock (door lock) * To open the door, move lever to right and pull door handle. Always close the appliance door completely when you leave the appliance. This is the only way you can protect your children from potential dangers.
- Page 24 CIF: A-28893550 Parque Empresarial PLA-ZA Ronda del Canal Imperial, 18-20 50197 Zaragoza ESPAÑA www.balay.es/en To book an engineer visit and product advice Please find the contact data of all countries 9000 453 964 en (8908-1) in the enclosed customer service list.
