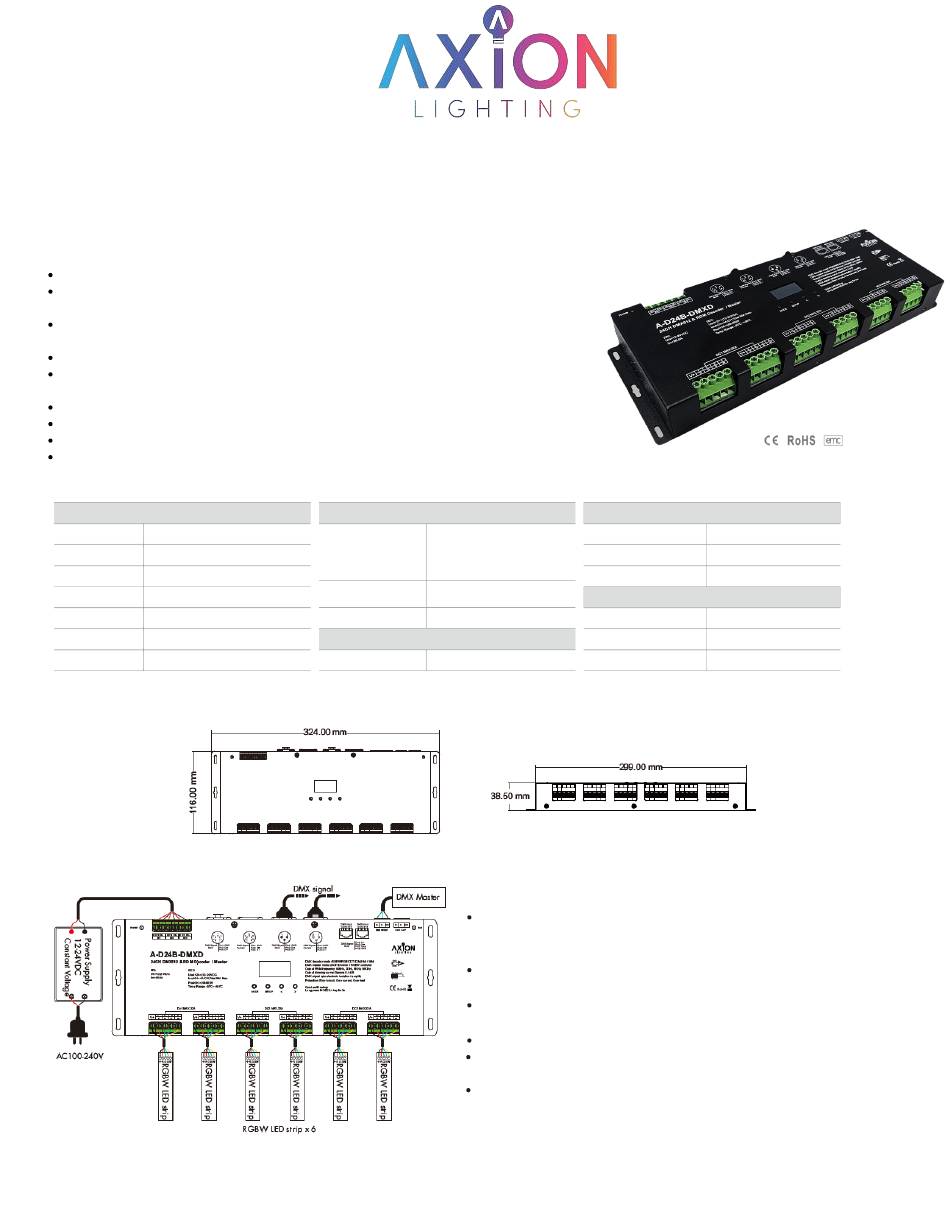

Axion A-D24B-DMXD Quick Start Manual

24 Channel Constant Voltage DMX512 & RDM Decoder
SKU: A-D24B-DMXD
The Axion Lighting 24 Channel DMX Decoder offers a great way to control single color, tunable white, RGB, RGBW or even RGBWW fixtures.
With 24 independent channels you can mix and match LED strips, recessed lights, or more to create multiple independent zones
Features
Fully compliant with the DMX512 standard protocol.
No DIP switches! Use the integrated buttons and OLED display to configure the DMX address and
settings.
Supports RDM functionality for those DMX masters or controllers that take advantage of this
enhanced protocol.
16 bit (65536 levels) or standard 8 bit (256) level selection.
PWM dimming frequency selection: 500 / 2000 / 8000 / 16000 Hz options for reduced power
noise and LED flickering.
Output dimming curve gamma value of 0.1 to 9.9 selectable.
Over-heat, over-load and short circuit protection with automatic recovery.
CE, EMC, and LVD certified.
5 year warranty
Input and Output
12-24VDC
Input voltage
Input current 96.5A
12 x (12-24)VDC
Output voltage
24CH, 4A/CH
Output current
Output power 24 x (48-96)W
Output type
Constant voltage
Mechanical Structures and Installations
Wiring Diagram
Safety and EMC
EN55032:2015,
EN61000-3-2:2014,
EMC standard (EMC)
EN61000-3-2:2013,
EN55024 :2010/A1:2015
EN 61347-1:2015
Safety standard (LVD)
EN 61347-2-11:2015
Certification
CE,EMC,LVD
Warranty
Warranty 5 years
Note
A DMX signal amp is typically required if more than 10-15 decoders are
connected. This is especially true if the distance between the decoders is
very long (250 ft+).
If there appears to be signal loss, you can try connecting a 0.25 watt 90-
120 Ohm terminal resistor at the end of the DMX signal line.
If the display reads OLA, that indicates an overload alarm (wattage to
high).
If the display reads OHA, that indicates an overheating alarm.
Alarms should clear automatically if the problem is resolved (may take up to
30 seconds).
Up to 3 different power supplies may be connected to power 2 full phoenix
connectors each. This can be of varying DC voltages if needed (eg: 12 and
24).
1
Environment
Operation temp.
Ta: -30° C ~ +55° C
Max case temp.
Tc: +85°C
IP rating IP20
Package
Size L13.19 x W5.31 x H1.81in
Gross weight
2.87 lbs
LVD
