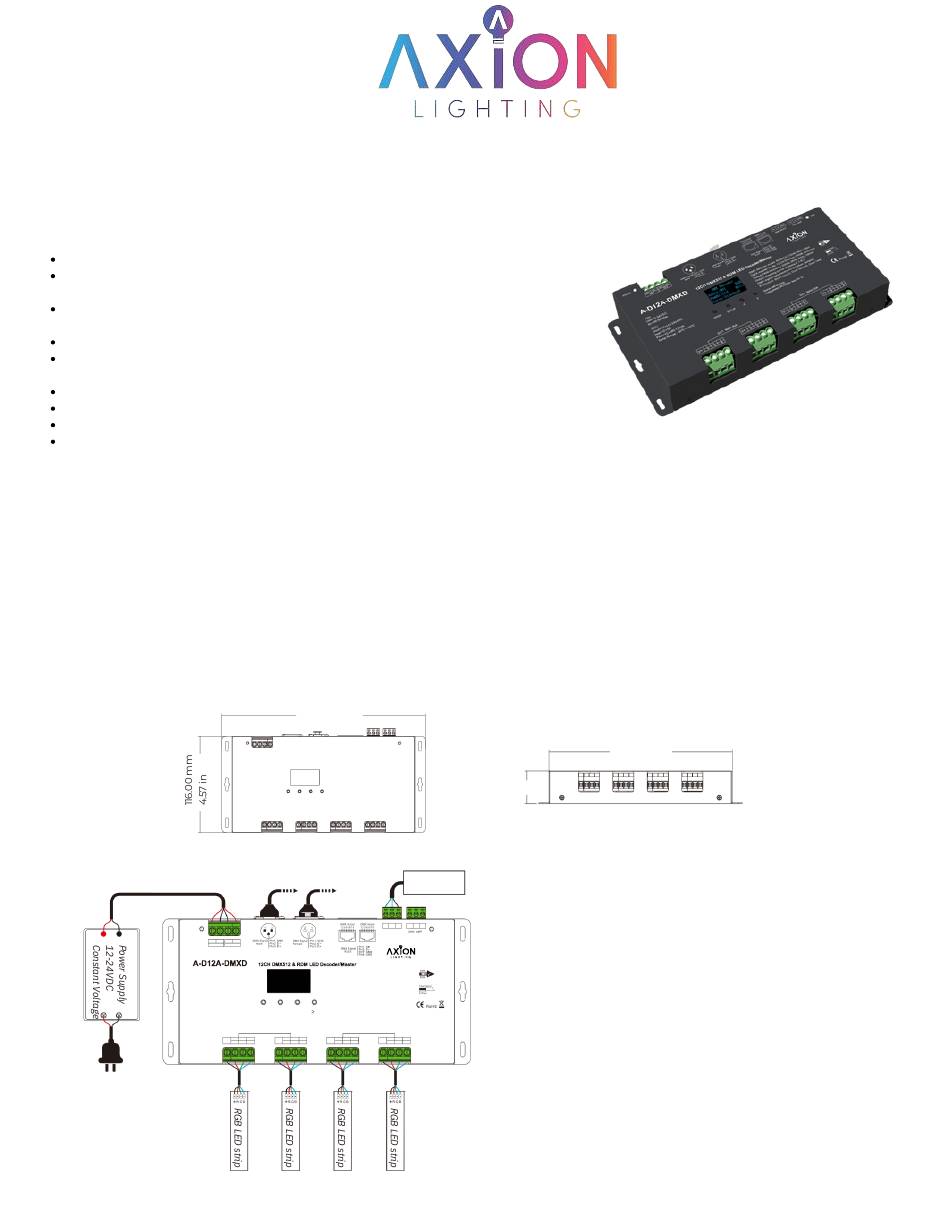

Axion A-D12A-DMXD Quick Start Manual

12 Channel Constant Voltage DMX512 & RDM LED Decoder / Master
SKU: A-D12A-DMXD
RDM / Stand-alone functionality / 8 bit or 16bit decoding/ Four PWM frequencies / Multiple dimming curves / OLED display
Features
Fully compliant with the standard DMX512 protocol.
No DIP switches! Use the integrated buttons and OLED display to configure the DMX address and
settings.
Supports RDM functionality for DMX masters or controllers that take advantage of this enhanced
protocol.
16 bit (65536 levels) or standard 8 bit (256) level selection.
PWM dimming frequency selection: 500 / 2000 / 8000 / 16000 Hz options for reduced power
noise and LED flickering.
Output dimming curve gamma value of 0.1 to 9.9 selectable.
Over-heat, over-load and short circuit protection with automatic recovery.
CE, EMC, and LVD certified.
5 year warranty
Input and Output
12-24VDC
Input voltage
Input current 60.5A
12 x (12-24)VDC
Output voltage
12CH, 5A/CH
Output current
Output power 12 x (60-120)W
Output type
Constant voltage
Mechanical Structures and Installations
Wiring Diagram
POWER
DC+ DC-
DC1
PRI:
Uin=12-24VDC
Iin=60.5A Max
SEC:
Uout=12×(12-24)V D C
Iout=12×5A
Pout=12×(60-120)W
Temp Range: -30~55 ℃ + ℃
V+
AC100-240V
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Certification
Warranty
Warranty
246.00 mm
9.69 in
DMX signal
D+ D- GND
DMX IN/OUT
DC+ DC-
DC2
DMX decoder mode: RGB/CCT/DIM, 8bit / 16bit
DMX Decoder
DMX master mode: 12CH Dimmer / RGB controller
Addrs:001 RGB
Output PWM frequency: 500Hz, 2KHz, 8KHz, 16KHz
PwmHz:Std
8bit
Output dimming curve: Gamma 0.1-9.9
Curve:Standard
DMX signal optoelectronic isolation / amplify
Protection: Short circuit, Over current, Over heat
Quick self-testing:
Long press MODE&> key for 3s
<
MODE SETUP
DC1 MAX.30A DC2 MAX.30A
1 2 3 4 5 6 7 8 9 10 11 12
G R G R G B R G B
R B V+ B V+ V+
RGB LED strip x 4
EN55032:2015,
EN61000-3-2:2014,
EN61000-3-2:2013,
EN55024:2010/A1:2015
EN61347-1:2015
EN61347-2-11:2015
CE,EMC,LVD
5 years
38.50 mm
1.52 in
DMX Master
D+ D- GND
RUN Note:
1. Using the green terminal (DMX AMP) will be needed
when more than 12 decoders are connected, or the
signal line is over 1000'. Signal amplification should not
be done more than 5 times on a single line.
2. If signal loss occurs because of a longer signal line or bad
line quality, try connecting a 0.25W 90-120Ω terminal resistor
at the end of each DMX signal line.
1
Environment
Operation temp.
-30°C~+55°C
Case temp.
+85°C
IP rating IP20
Package
Size L10.08 x W4.72 x H7.81 in
Gross weight
2.23 lb
221.00 mm
8.70 in
LVD
