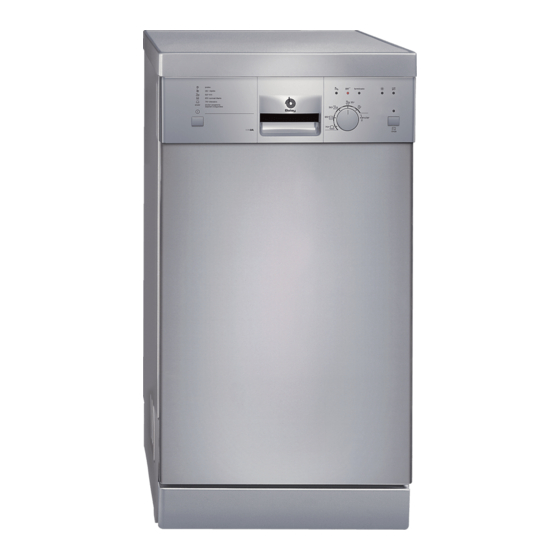

BALAY 3VB350ID - annexe 1 Instructions

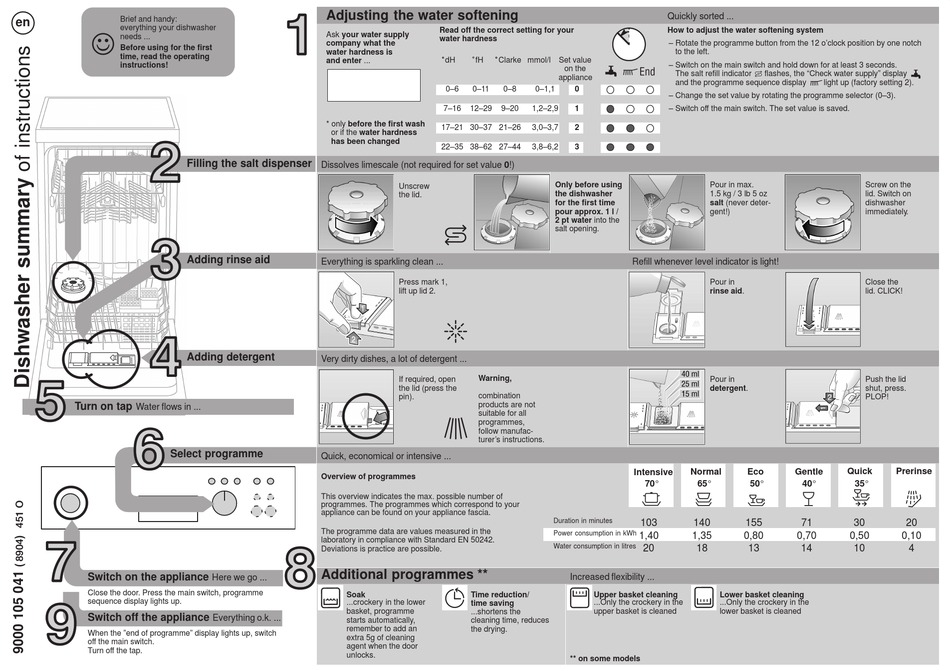

Brief and handy:
en
everything your dishwasher
needs ...
Before using for the first
time, read the operating
instructions!
Filling the salt dispenser
Adding rinse aid
Adding detergent
Turn on tap
Water flows in ...
Select programme
Switch on the appliance
Close the door. Press the main switch, programme
sequence display lights up.
Switch off the appliance
When the "end of programme" display lights up, switch
off the main switch.
Turn off the tap.
Adjusting the water softening
system *
Ask your water supply
company what the
water hardness is
and enter ...
* only before the first wash
or if the water hardness
has been changed
Dissolves limescale (not required for set value 0!)
Everything is sparkling clean ...
Very dirty dishes, a lot of detergent ...
Quick, economical or intensive ...
Overview of programmes
This overview indicates the max. possible number of
programmes. The programmes which correspond to your
appliance can be found on your appliance fascia.
The programme data are values measured in the
laboratory in compliance with Standard EN 50242.
Deviations is practice are possible.
Additional programmes **
Here we go ...
Soak
...crockery in the lower
basket, programme
Everything o.k. ...
starts automatically,
remember to add an
extra 5g of cleaning
agent when the door
unlocks.
Read off the correct setting for your
water hardness
°dH °fH °Clarke mmol/l
Set value
on the
appliance
0–6 0–11 0–8 0–1,1 0
7–16 12–29 9–20 1,2–2,9 1
17–21 30–37 21–26 3,0–3,7 2
22–35 38–62 27–44 3,8–6,2 3
Only before using
Unscrew
the dishwasher
the lid.
for the first time
pour approx. 1 l /
2 pt water into the
salt opening.
Press mark 1,
lift up lid 2.
Warning,
If required, open
the lid (press the
combination
pin).
products are not
suitable for all
programmes,
follow manufac-
turer's instructions.
Duration in minutes
Power consumption in kWh
Water consumption in litres
Increased flexibility ...
Time reduction/
time saving
...shortens the
cleaning time, reduces
the drying.
** on some models
Quickly sorted ...
How to adjust the water softening system
– Rotate the programme button from the 12 o'clock position by one notch
to the left.
– Switch on the main switch and hold down for at least 3 seconds.
The salt refill indicator flashes, the "Check water supply" display
and the programme sequence display
– Change the set value by rotating the programme selector (0–3).
– Switch off the main switch. The set value is saved.
Pour in max.
1.5 kg / 3 lb 5 oz
salt (never deter-
gent!)
Refill whenever level indicator is light!
Pour in
rinse aid.
Pour in
detergent.
Normal Eco
Intensive
70_ 65_ 50_
103 140 155
1,40 1,35 0,80
20 18 13
Upper basket cleaning Lower basket cleaning
...Only the crockery in the ...Only the crockery in the
upper basket is cleaned lower basket is cleaned
light up (factory setting 2).
Screw on the
lid. Switch on
dishwasher
immediately.
Close the
lid. CLICK!
Push the lid
shut, press.
PLOP!
Quick Prerinse
Gentle
40_ 35_
71 30 20
0,70 0,50 0,10
14 10 4
