- Page 1 DT426B Series DIRECT THERMAL BARCODE PRINTER USER’S MANUAL...
- Page 2 Contents ....................... 1 OPYRIGHT ECLARATION ......................... 1 OMPLIANCES 1. Introduction ......................... 3 2. Getting Started ......................3 2.1 Unpacking and Inspection ..................3 2.2 Equipment Checklist ....................3 2.3 Printer Parts......................5 2.3.1 Front View ....................... 5 2.3.2 Rear View ......................5 3 Setup ..........................
- Page 3 Copyright Declaration Information in this subject to change without notice and does not represent a commitment on the part of Shenzhen Maifeng Packing Co.,Ltd.. No part of this manual may be reproduced or transmitted in any form by any means, for any purpose other than the purchaser’s personal use, without the expressed written permission of Zhuhai Hengquan Barcode equipment Co., Ltd..
- Page 4 CAUTION 1. THE MAIN BOARD INCLUDES REAL TIME CLOCK FEATURE HAS LITHIUM BATTERY CR2032 INSTALLED. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. 2. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER INSTRUCTIONS.
- Page 5 1. Introduction Thank you for purchasing the DT426B Series Direct Thermal BarCode Printer. Although it is a compact desktop printer, it is reliable and with Superior throughput performance. This printer provides direct thermal printing at user selectable speed of: 2.0, 3.0, 4.0, 5.0, inches per second.
- Page 6 Dealer option None User option External roll mount, media OD. 214 mm (8.4”) with 3” core label spindle ...
- Page 7 2.3 Printer Parts 2.3.1 Front View Clear Window Feed Button LED Indicator Top Cover Label Outlet Front Panel Cover Open Lever 2.3.2 Rear View 1. Power Switch 2. SD Card 3. Power Jack 4. USB Interface 5. RS-232C DB-9 Interface Note: The interface picture here is for reference only.
- Page 8 3 Setup 3.1 Setting Up the Printer 1. Place the printer on a flat, secure surface. 2. Make sure the power switch is off. 3. Connect the printer to the computer with the RS-232 or USB cable. 4. Plug the DC power cord into the power jack at the rear of the printer, and then plug the AC power cord into a properly grounded receptacle.
- Page 9 3.2 Loading Label Stock 1. Insert a 1” label spindle into a paper roll (If your paper core is 1 inch, remove the 1.5 inch core adapter from the fixing tab). Label Roll 1.5” Core Adapter Fixing Tab Printing Side Face up 1”...
- Page 10 6. Close the printer cover slowly and make sure the cover locks levers securely.
- Page 11 3.3 External Label Roll Mount Installation (Option) 1. Attach an external label roll mount on the bottom of the printer. 2. Install a roll of label on the external label roll mount. Label External Label Roll Mount 3. Feed the label to the external label feed opening through the rear label guide. 4.
- Page 12 3.4 Diagnostic Tool The Diagnostic Utility is a toolbox that allows users to explore the printer’s settings and status; change printer settings; download graphics, fonts, and firmware; create printer bitmap fonts; and to send additional commands to the printer. Using this convenient tool, you can explore the printer status and settings and troubleshoot the printer.
- Page 13 3.4.2 Printer Function (Calibrate sensor, Ethernet setup, RTC setup………) 1. Select the PC interface connected with barcode printer. 2. Click the “Function” button to setting. 3. The detail functions in the Printer Function Group are listed as below. Function Description Calibrate the sensor specified in the Printer Calibrate Sensor Setup group media sensor field...
- Page 14 4. Power on Utilities There are four power-on utilities to set up and test printer hardware. These utilities are activated by pressing FEED button and by turning on the printer power simultaneously. The utilities are listed as below: Gap/Black mark sensor calibration Gap/black mark sensor calibration, Self-test and Dump mode Printer initialization Skip AUTO.BAS...
- Page 15 4.2 Gap/Black Mark Calibration, Self-test, Dump Mode While calibrate the gap/black mark sensor, printer will measure the label length, print the internal configuration (self-test) and then enter the dump mode. Please follow the steps as below. 1.Turn off the power switch. 2.
- Page 16 Self-test Printer will print the printer configuration after gap/black mark sensor calibration. Self-test printout can be used to check if there is any dot damage on the heater element, printer configurations and available memory space. Self-test printout Print head check pattern Model name and F/W version Printed mileage (meter) Firmware checksum...
- Page 17 Note: 1. The physical flash memory for RoHS compliant version is 8MB Flash and 8MB SDRAM (DT426B Model) 2. System occupies 8192 KB in Flash memory so total flash memory space for user downloading is 2560 KB 3. System occupies 8192 KB in DRAM so total DRAM memory space for user downloading is 128...
- Page 18 Dump mode Printer will enter dump mode after printing printer configuration. In the dump mode, all characters will be printed in 2 column s as following. The left side characters are received from your system and right side data are the corresponding hexadecimal value of the characters.
- Page 19 4.3 Printer Initialization Printer initialization is used to clear DRAM and restore printer settings to defaults. The only one exception is ribbon sensitivity, which will note be restored to default. Printer initialization is activated by the following procedures. 1. Turn off the power switch. 2.
- Page 20 4.4 Skip AUTO.BAS XPL programming language allows user to download an auto execution file to flash memory. Printer will run the AUTO.BAS program immediately when turning on printer power. The AUTO.BAS program can be interrupted without running the program by the power-on utility.
- Page 21 5. Maintenance 5.1 Cleaning This session presents the clean tools and methods to maintain your printer. Please use one of following material to clean the printer. Cotton swab (Head cleaner pen) Lint-free cloth Vacuum / Blower brush ...
- Page 22 cloth Interior Use a gas brush or a vacuum As needed cleaner to remove dust from the sensor Note: Do not touch printer head by hand. If you touch it careless, please use ethanol to clean it. Please use medicinal alcohol. Do not use industrial alcohol, industrial alcohol may damage the print head. ...
- Page 23 6. Troubleshooting The following guide lists the most common problems that may be encountered when operating this barcode printer. If the printer still does not function after all suggested solutions have been invoked, please contact the Customer Service Department of your purchased reseller or distributor for assistance.
- Page 24 Print Quality `Problem Possible Cause Recovery Procedure Check if interface cable is well Re-connect cable to interface. connected to the interface connector. The serial port cable pin configuration Please replace the cable with pin to is not pin to pin connected. pin connected.
- Page 25 7. LED and Button Operation This printer has one button and one three-color LED indicator. By indicating the LED with different color and pressing the button, printer can feed labels, pause the printing job, select and calibrate the media sensor, print printer self-test report, reset printer to defaults (initialization).
- Page 26 Gap/Black Mark 1. Turn off the power switch. Sensor Calibration 2. Hold on the button then turn on the power switch. 3. Release the button when LED turns red after 5 green/amber blinks. (Any red/amber will do during the 5 blinks).
- Page 27 Printer 1.Turn off the power switch. Initialization 2. Hold on the button then turn on the power switch. 3 Release the button when LED becomes bule and blinking. (Any red will do during the 5 blinks). It will calibrate the gap/black mark sensor sensitivity. ...
- Page 28 Revise History Date Content Editor...
Need help?
Do you have a question about the DT426B Series and is the answer not in the manual?
Questions and answers

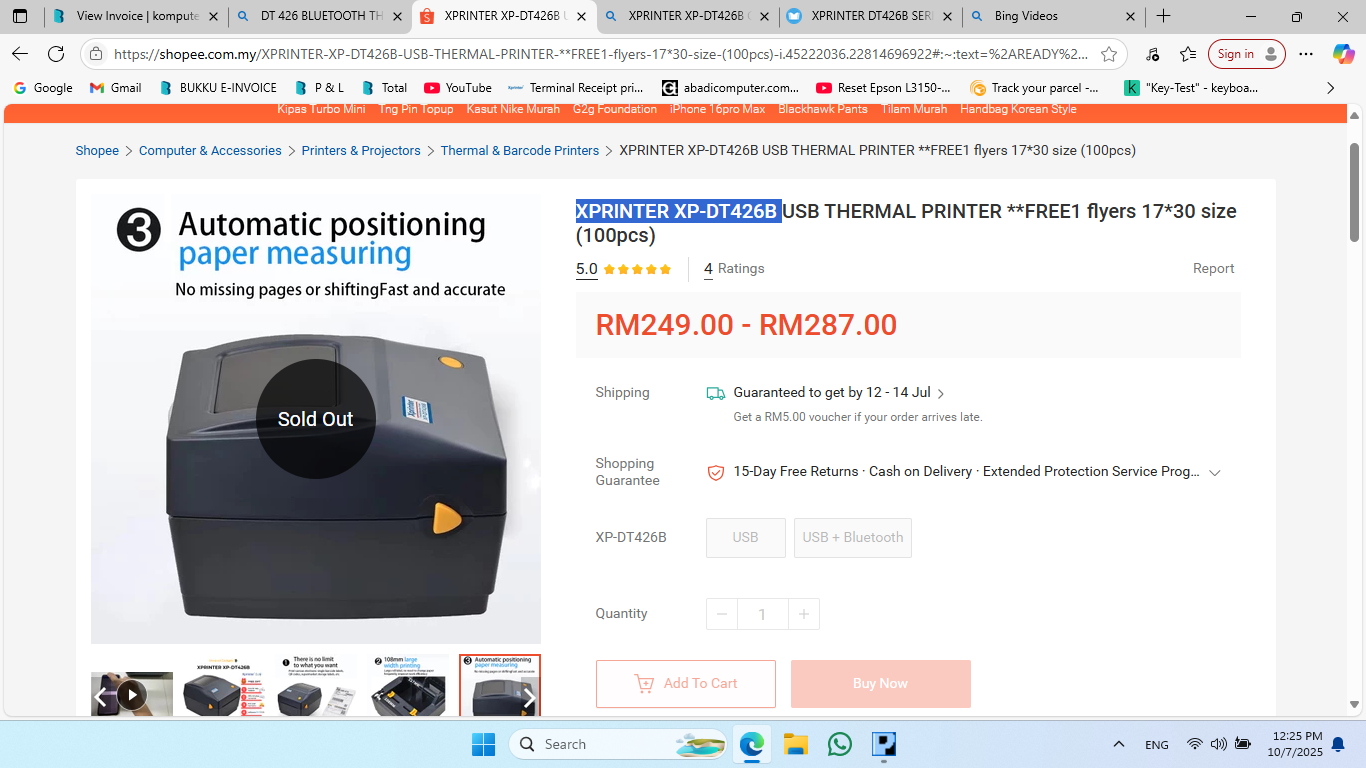

XPRINTER XP-DT426B CAN CONNECT HOW MANY DEVICE SAME TIME
