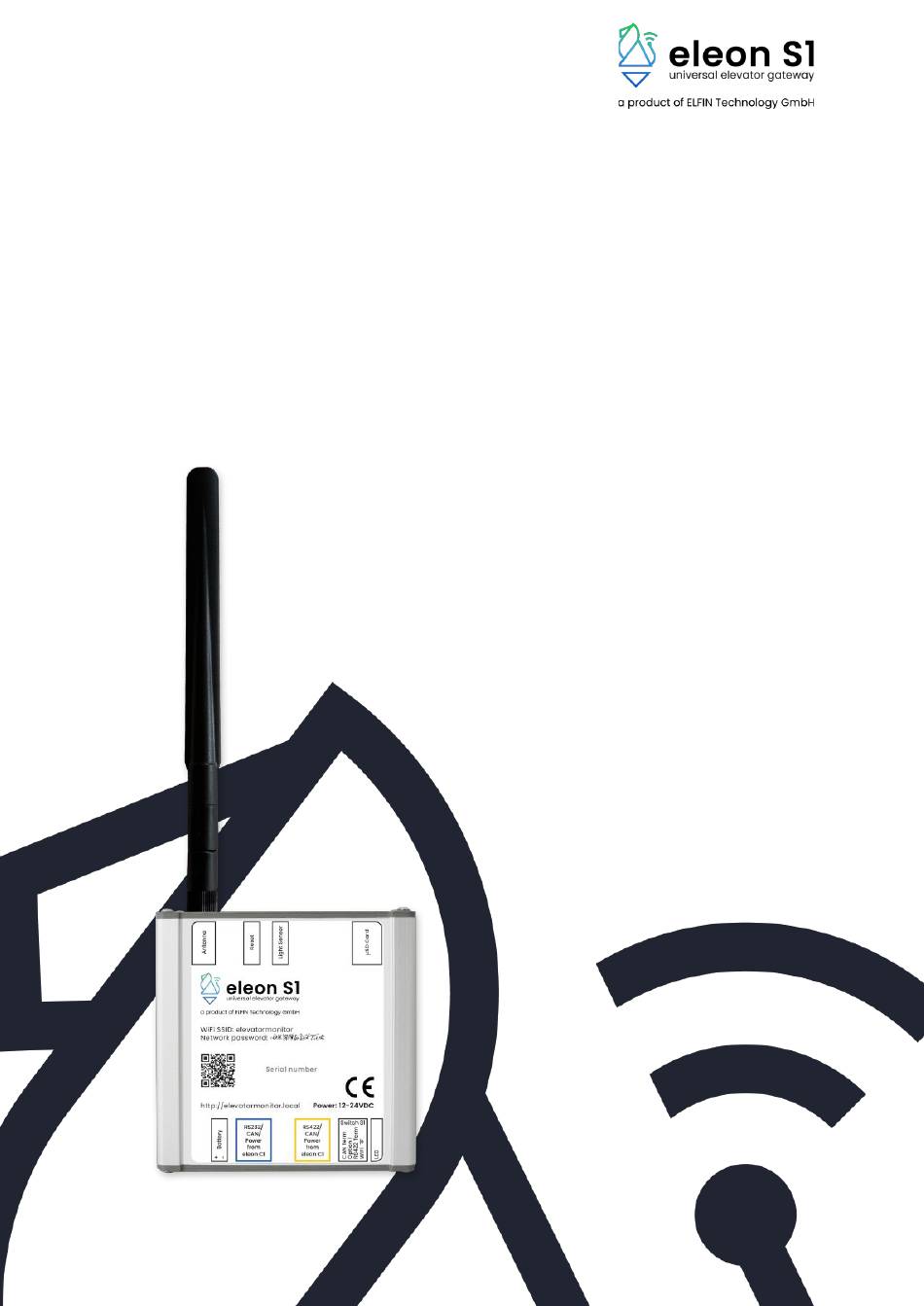

- Page 1 Version 20250120 INSTALLATION & CONFIGURATION MANUAL eleon S1 CONTROLLER: Schindler Miconic...
-
Page 2: Table Of Contents
3. Troubleshooting .......................... 15 3.1. Blinking LED 1st boot ..................... 15 3.2. Troubleshooting after reloading website ............15 3.3. Check signal strength ....................16 3.4. Failed controller connection test ................ 17 Contact............................... 19 © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120... -
Page 3: About
About The eleon S1 is a universal gateway for connecting elevators for monitoring, remote monitoring and maintenance purposes. It is compatible with a wide range of elevator control systems and provides operation- maintenance-relevant information to elevator companies via an MQTT interface. -
Page 4: Firmware Update
ELFIN Technology GmbH may be used for installation. ● In order to safely install the eleon S1, use wires with a cross-section of 0.25 mm² to 0.75 mm² (AWG23-18) for the connection of the power supply. -
Page 5: Procedure For Installation
Procedure for installation Schema © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120... -
Page 6: Wiring
5. Connect the power cable to eleon C1 by using the green plug. Vin: 12- 24 VDC GND: to the ground 6. Connect eleon C1 with eleon S1 by using the RJ45 patch cable and the blue labelled connector (RS232/CAN):... - Page 7 7. Attach the antenna to the eleon S1. 8. Locate the D-Sub9 connector on the motherboard. © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120...
- Page 8 9. Use the D-Sub9 cable to connect the CPU board and the eleon C1 blue labelled connector (RS232 from controller). © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120...
- Page 9 CPU board to the eleon C1 (blue input port) with the XTELE adapter cable. Activate the XTELE mode with the switch S3 on (see picture below). Otherwise move on with next step. 11. Locate the XCAN-CAR on the CPU board. © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120...
- Page 10 • XCAN-CAR PIN 2 -> Connect to eleon C1 – Green Connector CH • XCAN-CAR PIN 1 -> Connect to eleon C1 – Green Connector CL 13. Turn on the power of the controller and eleon S1 will start automatically.
- Page 11 14. Check green LED on the bottom of eleon S1. ➜ 1x per second blinking: ➜ off or irregular blinking: ➜ Fast blinking (4x per second): normal operation. not operational: modem is scanning for Proceed with the next step. see chapter 3: networks.
-
Page 12: Configuration
2. Configuration When eleon S1 is wired and powered, WiFi is activated and will turn off automatically after 30 minutes. If you can’t find WiFi network, please toggle switch 4. Any position change of the switch will activate the WiFi for 30 min. - Page 13 6. If signal strength is sufficient, use two stripes of the velcro mounting set to mount eleon S1 in its final position and make sure that the signal strength is still sufficient. Choose the SCHINDLER-MICONIC controller from the dropdown menu on the website.
- Page 14 10. Check signal strength (see above in section 5 for pictures and details). 11. eleon S1 performs a controller connection test and the website shows if the controller connection was successful or not. In case controller connection has failed: see chapter 3: Troubleshooting –...
-
Page 15: Troubleshooting
Check for reversed - "min. 200mA at polarity, wiring short 24 V"). circuits, or broken wires. Check for suspicious noises in eleon C1 or eleon S1. 3.2. Troubleshooting after reloading website © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120... -
Page 16: Check Signal Strength
In case the Website does not update automatically: Check if the connection to WiFi “elevatormonitor” is active. If not, please connect to WiFi using the SSID and WiFi PW (see eleon S1). A login to the Website might be required again by using Onboarding PIN (see package leaflet). -
Page 17: Failed Controller Connection Test
Make the controller selection suitable to your controller and click ● “Save”. Follow instruction from chapter 2 - section 9. ● This troubleshooting process can be repeated until the correct ● controller is chosen. © ELFIN Technology GmbH | eleon.elfin.de | Version 20250120... - Page 18 3.4.4. Check the functionality of the D-Sub9 port or XTELE connector & the CAN connector of the CPU board and reconnect the controller and the eleon C1. Please press the reset button on the eleon S1. The restart of eleon S1 will trigger another controller connect...
-
Page 19: Contact
Contact Even an extensive documentation cannot answer every question. Do you still have questions or suggestions concerning our eleon S1 universal elevator gateway? Please have the following information ready for our customer support: • customer name • adress of installation site •...
