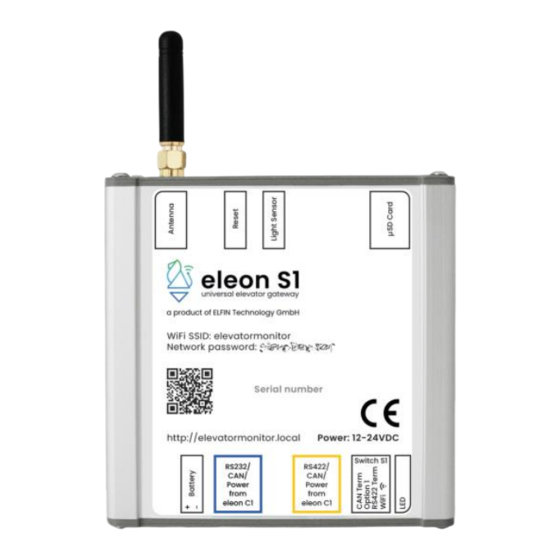

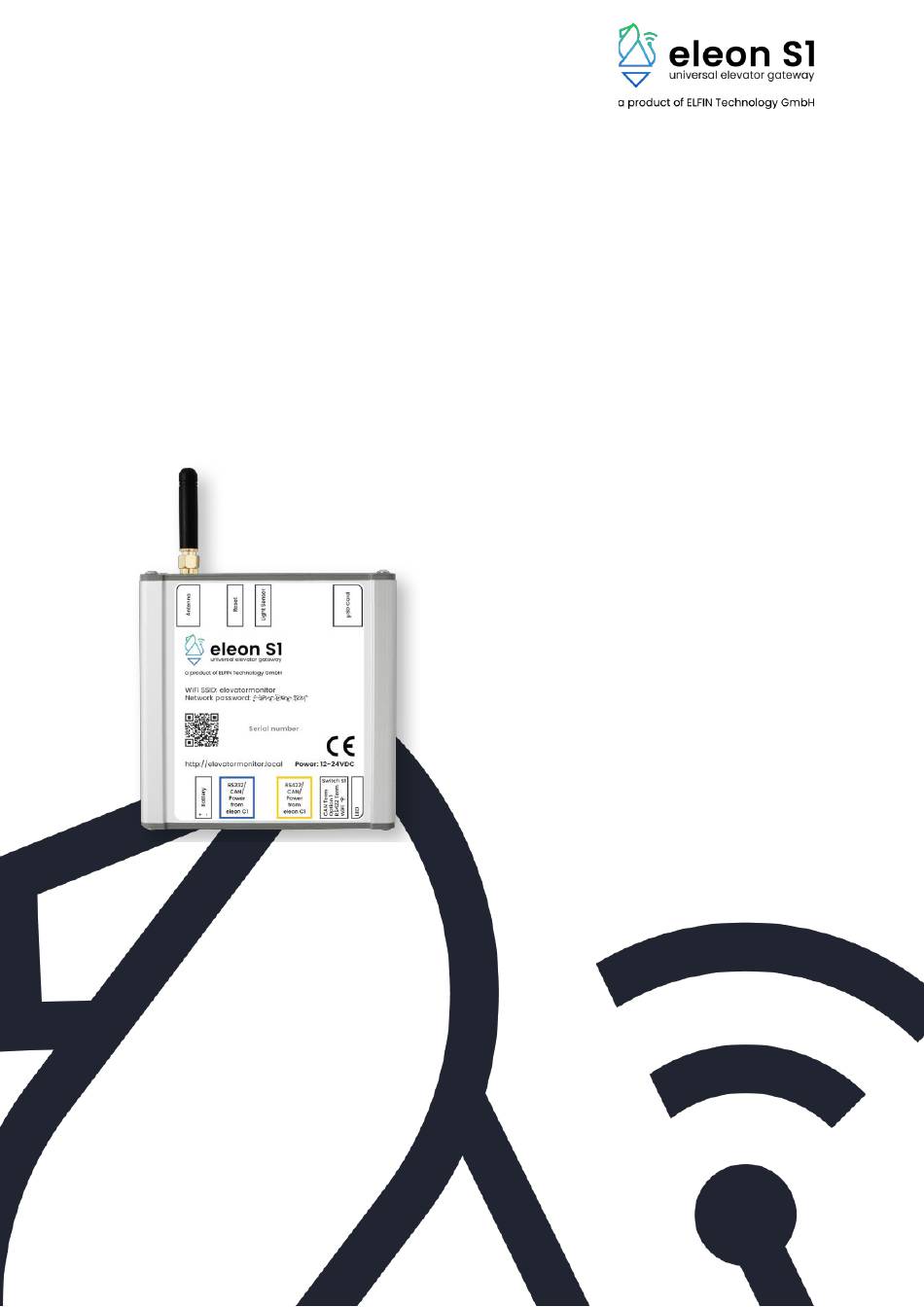

- Page 1 Version 101224 INSTALLATION & CONFIGURATION MANUAL eleon S1 CONTROLLER: Otis LB II...
-
Page 2: Table Of Contents
Chapter 2: Configuration ......................... 8 Chapter 3: Troubleshooting ......................11 Blinking LED 1st boot: ......................11 Troubleshooting after reloading website: ............. 11 Check Signal strength: ....................... 12 Failed controller connection test: ................13 Questions? ..............................15 eleon S1 Installation & Configuration Manual | eleon.elfin.de... -
Page 3: Package Contents
ELFIN Technology GmbH may be used for installation. ● In order to safely install the eleon S1, use wires with a cross-section of 0.25 mm² to 0.75 mm² (AWG23-18) for the connection of the power supply. -
Page 4: Procedure For Installation
1. Locate a 12-24V DC (200mA at 24V) power source inside the machinery to power the gateway. 2. For safety reasons, turn off the power supply completely. 3. Connect Power and GND to the 24V power supply. eleon S1 Installation & Configuration Manual | eleon.elfin.de... - Page 5 5. Connect the power cable to eleon C1 by using the green plug. Vin: 12- 24 VDC GND: to the ground 6. Connect eleon C1 with eleon S1 by using the RJ45 patch cable and the orange connector (RS422). 7. Attach the antenna to the eleon S1.
- Page 6 8. Locate the DSub9 connector on the motherboard. 9. Use the Dsub9 cable to connect the controller and eleon C1 via orange labelled connector (RS422). 10. Turn on the power of the controller and eleon S1 will start automatically. eleon S1 Installation & Configuration Manual |...
- Page 7 11. Check green LED on the bottom of eleon S1. ➜ 1x per second blinking: ➜ off or irregular blinking: ➜ Fast blinking (4x per second): normal operation. not operational: modem is scanning for Proceed with the next step. see chapter 3: networks.
-
Page 8: Chapter 2: Configuration
QRcode ➜ For Android devices prior to version 12, please type in the IP address as follows 192.168.4.1 in the browser. 4. Access the website using Onboarding PIN (see package leaflet). eleon S1 Installation & Configuration Manual | eleon.elfin.de... - Page 9 Controller and click “Save”. 6. Use two stripes of the velcro mounting set to mount eleon S1 in its final position and make sure that the signal strength is still sufficient. Choose the OTIS-LB2 controller from the dropdown menu on the website.
- Page 10 11. eleon S1 performs a controller connection test and the website shows if the controller connection was successful or not. In case controller connection has failed: see chapter 3: Troubleshooting – section 4. 12. Arrange the final position for the DSub9 cable, power cable and eleon C1.
-
Page 11: Chapter 3: Troubleshooting
Check for reversed - "min. 200mA at polarity, wiring short 24 V"). circuits, or broken wires. Check for suspicious noises in eleon C1 or eleon S1. 2. Troubleshooting after reloading website: eleon S1 Installation & Configuration Manual | eleon.elfin.de... -
Page 12: Check Signal Strength
In case the Website does not update automatically: Check if the connection to WiFi “elevatormonitor” is active. If not, please connect to WiFi using the SSID and WiFi PW (see eleon S1). A login to the Website might be required again by using Onboarding PIN (see package leaflet). -
Page 13: Failed Controller Connection Test
If you are sure, you have selected the right controller, but the controller connection test still fails, please continue as follows: Ensure that only cables supplied by ELFIN Technology GmbH are used. eleon S1 Installation & Configuration Manual |... - Page 14 Check the functionality of the DSub9 port of the controller and reconnect the controller and the eleon C1. Please press the reset button on the eleon S1. The restart of eleon S1 will trigger another controller connection test. eleon S1 Installation & Configuration Manual |...
-
Page 15: Questions
Questions? Contact ELFIN Technology GmbH Im Zollhafen 22 50678 Köln Germany Phone: +49 (0) 221 67789320 service@elfin.de www.elfin.de eleon S1 Installation & Configuration Manual | eleon.elfin.de...
