Summary of Contents for Diatest Diatron 1500

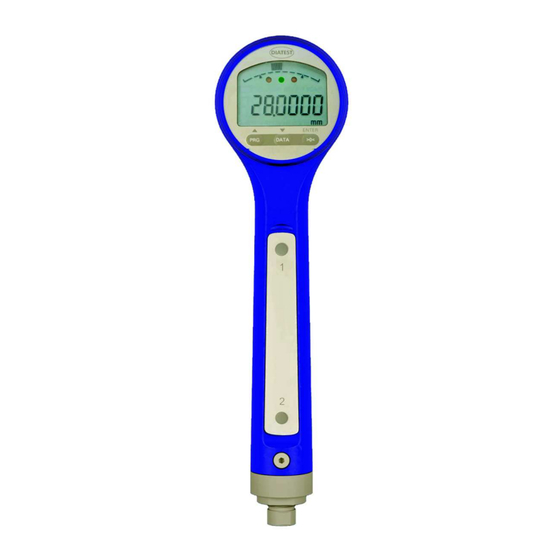

- Page 1 Diatron 1500 User Instruction Document No. : DT1500QS2501E Revision : 01/25...
- Page 2 It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Diatest GmbH, nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the in- formation that is contained herein.
- Page 3 Note : This manual is valid for software release V3.2. After the battery is inserted, the sensor display Diatron1 500 shows the release version ( e.g. r3.2 ). If no release number is displayed, the software in the Diatron 1500 is an older release.
- Page 4 All information in this manual is correct at the time of printing. Diatest GmbH reserves the right to make technical changes that serve to improve the product or increase the safety standard. The information is intended for the operating company and the operating and service personnel.
- Page 5 Only use reliable and trained or instructed personnel. 1.3. Intended use The Diatron 1500, with the accessories provided, is used for : calculating and displaying measured values received by connected measuring mechanics (e.g. BMD). Output of the displayed measured values via the integrated radio module to an external system ...
- Page 6 Instruction manual Diatron 1500 1.5. Cleaning and maintenance The following specifications must be observed : Switch off the device before cleaning. Never allow liquids to penetrate the inside of the device. Do not use any plastic-dissolving cleaning agents.
- Page 7 Instruction manual Diatron 1500 2. Technical information 2.1. Technical data Mechanical characteristics Case Plastic Front plane Autoflex plyester foil (scratch resistant) Dimensions / Weight ( W x H x D ) 71 x 262 x 48mm / 600 g Electrical characteristics...
- Page 8 Instruction manual Diatron 1500 2.2. Dimensions Diatron 1500 2.3. Components / Control elements Analoganzeige 53 Segmente Toleranzanzeige LEDs: rot/grün/gelb Ziffernanzeige 7 Stellen Button function in programming menu Button function in measurement mode...
- Page 9 Instruction manual Diatron 1500 2.4. Display 1. Calibration request blinks when a timer forced or temperature forced calibration has to be executed ( a data transmission is not possible while this display segment blinks ) 2. Tolerance LEDs are lighted ( depending on the tolerance state ) when the “DATA”...
- Page 10 Instruction manual Diatron 1500 3. First start-up Only authorised personnel is allowed to perform the first start-up. 3.1. Inserting / changing the battery 1. Loosen the screw with an Allen key (2,5mm). 2. Loosen the cover and remove the battery 3.
- Page 11 Instruction manual Diatron 1500 4. Configuration The Diatron 1500 can be configured directly in the programming menu or via the PC software DT1500_PC. The access to the separate menu items in the programming menu can be restricted via the PC software / web application.
- Page 12 Instruction manual Diatron 1500 Entering a preset value ( = master value ) All digits have to be entered one after the other via the buttons . The button can be pressed to change to the next digit. When the button is pressed for more than 2 seconds, the en- tered number is confirmed, regardless of which digit is currently active.
- Page 13 Instruction manual Diatron 1500 Measurement modes There are several different measurement modes available : StAtic : static measurement dyn. ( MAX ) : dynamic measurement of the Max value dyn. ( MIN ) : dynamic measurement of the Min value ...
- Page 14 Instruction manual Diatron 1500 Grading mode / number of grades If the measuring values have to be assigned to grades, this can be activated here and the required number of grades can be selected ( 1 … 30 ). The entered tolerance range is distributed evenly over the selected number of grades.
- Page 15 > 1.6 µm or when the DATA button is pressed in the measurement mode. Column display The Diatron 1500 allows to switch between a column display and a single segment display. If the column display is selected, the starting point of the column can be selected ( centre / left / right ).
- Page 16 Instruction manual Diatron 1500 Freezing the display during a static measurement For static measurements can be activated that the current measuring value is frozen when the DATA button is pressed ( see chapter 5.2 ). When data is requested via the interface or when the DATA button is pressed again, the freezing is stopped.
- Page 17 Instruction manual Diatron 1500 Favourite buttons / >0< button pressed for > 2 seconds in the measurement mode See “Favourite buttons / PRG button”. Button 1 and 2 in the handle One of the following functions can be assigned to each of these buttons.
- Page 18 Instruction manual Diatron 1500 Auto power off time A time can be selected after which the Diatron 1500 is automatically switched off. Times from 5 to 95 minutes can be selected. For the automatic switch off is checked for how long the measuring value has not changed by more than 0,3µm.
- Page 19 The installation file can be downloaded from our website: http://www.diatest.com Note : The Diatron 1500 has to be switched on and has to be in the measurement mode. While the Dai- tron 1500 is in the programming menu, no connection can be established. Setting up the software...
- Page 20 In the fourth ( right ) column, the names of the corresponding menu items in the programming menu of the Diatron 1500 are shown for the individual settings. Note : In the programming menu, only the activated measuring inputs ( in the right column ) can be configured, even if the boxes in the middle column are checked.
- Page 21 Instruction manual Diatron 1500 4.3. Reset to factory settings The Diatron 1500 allows to reset the configuration to the factory settings. For this, the buttons have to be pressed together for more than 2 seconds. Afterwards, all settings are returned to default.
- Page 22 Instruction manual Diatron 1500 5. Measuring operation 5.1. Button functions during the measurement Calling the programming menu > 2 sec. Freely programmable favourite button Data Transmission Start / Stop dynamic measurement > 2 sec. Freely programmable favourite button Zero adjustment >...
- Page 23 The display shows the result of the last dynamic measurement until the next measurement is started, a calibration is executed, the programming menu is called or the Diatron 1500 is switched off. If the Tolerance LEDs are activated ( see chapter 4.1 ), the LED that corresponds to the tolerance state of the dynamic measurement result is lighted ( for the selected duration ) after the end of the dynamic measurement.
- Page 24 Then, “CAL.” and a “2” are blinking in the display, which shows that now the second master has to be measured and the >0< button has to be pressed again. Afterwards, the Diatron 1500 calculates the new offset and factor. The timer-forced and temperature-forced calibration works as described in chapter 5.3 5.5.
- Page 25 Please check the settings of the transmitter and the receiver (USB-R2). 6. Interface The Diatron 1500 has a Triple-I interface. This interface allows to transmit measuring values via radio or cable or to change the configuration via a PC software or web application ( see chapter 4.2 ).
