Neptronic SKH4 User Manual

Bacnet communication module
Hide thumbs Also See for SKH4:

Advertisement

Quick Links

Download this manual

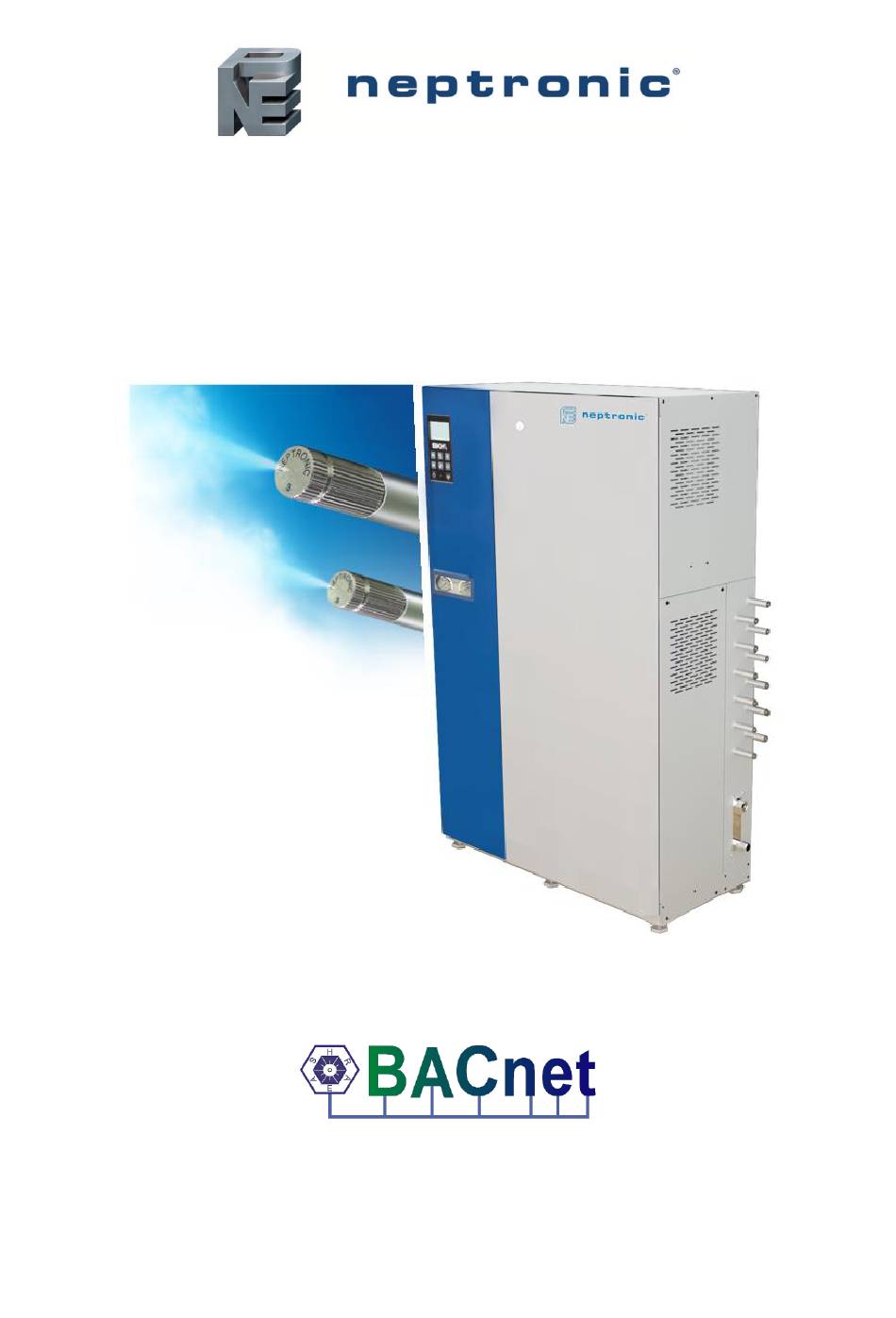

SKH4 High-Pressure Atomizer
BACnet Communication Module User Guide
SKH4-BACnet Guide-240126 (V1.00)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKH4 and is the answer not in the manual?

Questions and answers

Related Manuals for Neptronic SKH4

Summary of Contents for Neptronic SKH4

  • Page 1 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide SKH4-BACnet Guide-240126 (V1.00)
  • Page 2 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Contents Introduction ..............................1 Pre-requisites ............................1 Advantages of BACnet ..........................1 BACnet Properties Configuration ......................2 Configuration Options ........................... 3 Quick Setup .............................. 3 Manual Setup ............................3 IP Port ............................... 4 Network Reset ............................
  • Page 3 BACnet Communication Module User Guide Introduction The SKH4 High-Pressure Atomizer BACnet Communication Module User Guide provides information about using the humidifiers with BACnet communications feature. The BACnet communication protocol for building automation and control networks enables communication between client devices within a network. The humidifier provides a BACnet network interface between BACnet client devices and Neptronic humidifiers.
  • Page 4 Device Object.Max_Master. For more information, refer to the MAC Address and Max_Master section. • Device Name of the Configure the name of the device through the WriteProperty service to Object.Object_Name device Device Object.Object_Name. For example, SKH4. www.neptronic.com Page | 2...
  • Page 5 Configuration through the Write Property service. See Table 1 - BACnet Properties Configuration. Repeat the steps for each humidifier. Manual Setup Configure the humidifier for BACnet communication using the SKH4 controller, by using the following steps: Press the Enter key. Enter the Integration menu password: 5544.
  • Page 6 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Example 3 • MAC=0, Max_Master=1 • MAC=2, Max_Master=2 This is an incorrect configuration. The MAC=0 will never find MAC=2 because it will never poll for the master MAC address=2. Example 4 •...
  • Page 7 • The device instance must be unique system-wide • The default value for the device instance= 153001 (Vendor_Identifier*1000 + MAC) Object_Name SKH4, programmable up to 32 Bytes Description Programmable up to 32 Bytes (default: SKH4 Controller) Object_Type Device System_Status Operational...
  • Page 8 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Property Value Writable Property_List List of properties that exist within the object. Object Types Supported The following table lists all the BACnet properties supported for each object type. Most of the properties are locked. The exception is Present_Value, which represents the dynamic operating values of the device, and the Status_Flag, Event_State, and Reliability properties, which reflect the availability of the Present_Value.
  • Page 9 Out_of_Service Property Neptronic humidifiers offer the use of the Out_of_Service writable property. When the value of this property is set to True, it disconnects the object from the physical input, enabling you to input other values. This is useful for special applications or while troubleshooting.
  • Page 10 Object Table Information The SKH4 uses the following BACnet object tables, categorized on the basis of their ID. The type is the BACnet Object type, the instance is the BACnet Object. Together, the type and instance form the BACnet Object_Identifier for an object according to the following C-language algorithm: •...
  • Page 11 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Analog Output (AO) Table 5 - Object Table Information: Analog Output (AO) Name List Description Notes Out_of_Service AO.1 Power Output Feedback Signal Integrator Value of the power output feedback signal. Relinquish_Default 0V to 10V, Resolution 0.001V...
  • Page 12 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Out_of_Service AV.51 Room RH Max Integrator Maximum value of the room humidity analog input. 0% to 100%, Resolution 1% Present_Value COV_Increment Out_of_Service AV.52 Room RH Bias Integrator Bias value of the room humidity analog input.
  • Page 13 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Out_of_Service AV.86 Power Output Feedback Min Integrator Minimum value of the power output feedback signal. 0V to 10V, Resolution: 0.001V Present_Value COV_Increment Out_of_Service AV.87 Power Output Feedback Max Integrator Maximum value of the power output feedback signal.
  • Page 14 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value RH Supply High Limit Network Out_of_Service AV.122 Integrator Value of the supply high limit reading received from the network. 0% RH to 100% RH, Resolution 1% RH...
  • Page 15 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service -40°F to 302°F or -40°C to 150°C AV.152 Room Temperature Max Integrator Maximum value of the room temperature signal. COV_Increment Resolution 0.018.°F or 0.01°C Relinquish_Default Present_Value -18.0∆°F to 18.0∆°F or -10.0∆°C to 10.0∆°C,...
  • Page 16 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Out_of_Service -40°F to 500°F or -40°C to 260°C AV.170 HRL Temperature Integrator Displays the room temperature value measured by the HRL24 controller. COV_Increment Resolution 0.18.°F or 0.1°C Relinquish_Default Out_of_Service AV.171...
  • Page 17 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Temp Supply High Limit Derivative Out_of_Service AV.182 Integrator Configuration value of the supply high limit temperature derivative time. 0 second to 60 seconds, Resolution: 0.1 second Time...
  • Page 18 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service AV.234 Control Timer Integrator Configuration value of the control timer. 0 second to 120 seconds, Resolution: 1 second COV_Increment Relinquish_Default Out_of_Service AV.235 Zone A Demand Integrator Displays the value of the demand for Zone A.
  • Page 19 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service -40°F to 302°F or -40°C to 150°C AV.251 Zone D Temperature Integrator Configuration value of the temperature for Zone D. COV_Increment Resolution 0.018.°F or 0.01°C Relinquish_Default...
  • Page 20 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service AV.265 Stage 2 Capacity Integrator Configuration value of the capacity for stage 2. 0l/h to 3000l/h, Resolution 1l/h COV_Increment Relinquish_Default Present_Value Out_of_Service AV.266 Stage 2 Drain Volume Integrator Configuration value of the drain volume for stage 2.
  • Page 21 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Out_of_Service AV.279 Stage 1 Drain Time Integrator Displays the value of the drain time for stage 1. COV_Increment 0 second to 9999 seconds, Resolution: 1 second Relinquish_Default Present_Value Out_of_Service AV.280...
  • Page 22 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Out_of_Service 0 second to 21474836.47 seconds, Resolution: 0.01 AV.313 Stage 1 Run Time Integrator Displays the value of the run time for stage 1. COV_Increment second Relinquish_Default Out_of_Service 0 second to 21474836.47 seconds, Resolution: 0.01...
  • Page 23 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service AV.382 Stage 1 Max On Time Integrator Set the maximum on time for stage 1. 0 second to 1200 seconds, Resolution: 1 second COV_Increment Relinquish_Default Present_Value Out_of_Service AV.383...
  • Page 24 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service AV.392 Stage 5 Pause Time Integrator Set the pause time for stage 5. 0 second to 1200 seconds, Resolution: 1 second COV_Increment Relinquish_Default Present_Value Out_of_Service AV.393...
  • Page 25 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Out_of_Service AV.403 Drain 4 Cycle Count Integrator Displays the value of the drain cycle count for stage 4. COV_Increment 0 to 999999999, Resolution: 1 Relinquish_Default Out_of_Service AV.404 Drain 5 Cycle Count Integrator Displays the value of the drain cycle count for stage 5.
  • Page 26 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service AV.416 Zone C MAC Integrator Set the value of the MAC address for Zone C. 0 to 127, Resolution: 1 COV_Increment Relinquish_Default Present_Value Out_of_Service AV.417 Zone D MAC Integrator Set the value of the MAC address for Zone D.
  • Page 27 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Binary Input (BI) Table 7 - Object Table Information: Binary Input (BI) Name List Description Notes Out_of_Service 0 = Closed Integrator Displays the status of the airflow switch. If the switch is Open, it indicates that the BI.1...
  • Page 28 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Binary Output (BO) Table 8 - Object Table Information: Binary Output (BO) Name List Description Notes Present_Value Out_of_Service Polarity 0 = Off BO.2 Alarm Warning Relay Integrator Status value for the alarm warning relay.
  • Page 29 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service Polarity 0 = Off BO.10 Valve 6 Integrator Status value for valve 6. Relinquish_Default 1 = On Minimum_Off_Time Minimum_On_Time Present_Value Out_of_Service Polarity 0 = Off BO.11 Valve 7 Integrator Status value for valve 7.
  • Page 30 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service Polarity 0 = Off BO.19 Power LED Integrator Status value for the power LED. Relinquish_Default 1 = On Minimum_Off_Time Minimum_On_Time Present_Value Out_of_Service Polarity 0 = Off BO.20...
  • Page 31 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Binary Value (BV) Table 9 - Object Table Information: Binary Value (BV) Name List Description Notes Present_Value Configuration value that enables or disables the alarm buzzer sound when there Out_of_Service 0 = Normal BV.3...
  • Page 32 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes Present_Value Out_of_Service 0 = No BV.70 Stage 1 Diagnostic Enable Integrator Select the status of the diagnostic enable for stage 1. Minimum_Off_Time 1 = Yes Minimum_On_Time Present_Value Out_of_Service 0 = No BV.71...
  • Page 33 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Character String Value (CV) Table 10 - Object Table Information: Character String Value (CV) Name List Description Notes CV.10 HMI Overwrite Integrator Overwrite the value displayed on the local display menu. Present_Value CV.22...
  • Page 34 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Multi State Value (MSV) Table 11 - Object Table Information: Multi State Value (MSV) Name List Description Notes 1 = None 2 = Emergency 3 = Alert 4 = Critical Present_Value MSV.5 System Log Verbose Level Integrator Configuration value to select the type of information to be stored on the log file.
  • Page 35 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes 1 = Disabled 2 = ExternAnalog 3 = ExternNetwork Configuration value to select a preconfigured control mode profile for the 4 = InternHumAnalog MSV.29 Modulating High Limit Profile...
  • Page 36 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes 1 = None Room Temperature Setpoint Present_Value MSV.67 Integrator Configuration value to select the room temperature setpoint source. 2 = Internal Source Out_of_Service 3 = ControlInput 1 = None...
  • Page 37 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes 1 = Occupied Present_Value MSV.98 Zone B Occupancy Integrator Select the occupied status for zone B. 2 = Unoccupied Out_of_Service 3 = Off 1 = Off 2 = Normal Present_Value MSV.99...
  • Page 38 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes 1 = Drain7 2 = Drain8 Present_Value 3 = Drain9 MSV.108 Stage1 Drain Integrator Select the stage 1 drain. Out_of_Service 4 = Drain10 5 = Drain11 6 = Drain12...
  • Page 39 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes 1 = ZoneA 2 = ZoneB Present_Value 3 = ZoneC MSV.115 Stage 5 Zone Integrator Select the stage 5 zone. Out_of_Service 4 = ZoneD 5 = ZoneE 6 = ZoneF...
  • Page 40 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Other Table 12 - Object Table Information: Other Name List Description Notes Program_Change Program Change, only LOAD (1) and RESTART (4) PGM.1 NSDF Core Program Advanced NSDF Core Program. Out_of_Service are supported.
  • Page 41 SKH4 High-Pressure Atomizer BACnet Communication Module User Guide Name List Description Notes FIL.16 System Log File Integrator System Log file. File_Size File size is accepted for 0 value only. FIL.19 UpdatePackageFile Advanced Update Package file. File_Size File size is accepted for 0 value only.
  • Page 42 Notes...
  • Page 44 400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada www.neptronic.com Toll free in North America: 1-800-361-2308 Tel.: (514) 333-1433 Fax: (514) 333-3163 Customer service fax: (514) 333-1091 Monday to Friday: 8:00am to 5:00pm (Eastern time)
