TRIGA TR-RD2G Product Installation Document

TRIGA Life Safety Systems, LLC
7600 Olde Eight Rd, Hudson, Ohio, 44236-1057
Tel: +1 330-577-5199, Email: info@trigaglobal.com
1 Description
The TR-RD2R/G is an optional 4x40 remote annunciator that can be sur-
face or flush-mounted. TR-RD2R is the red model. TR-RD2G is the gray
model.
BACK
NEXT

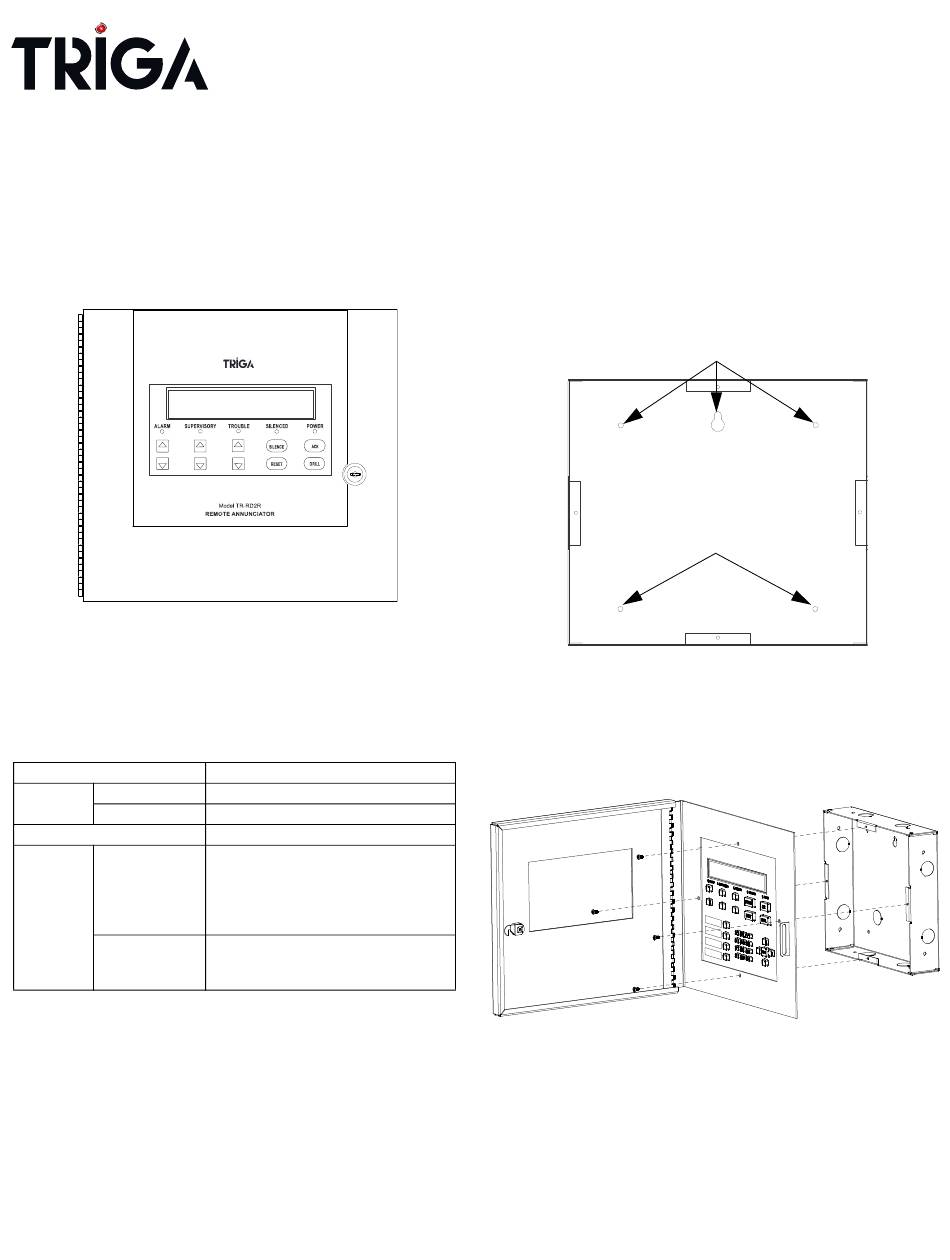

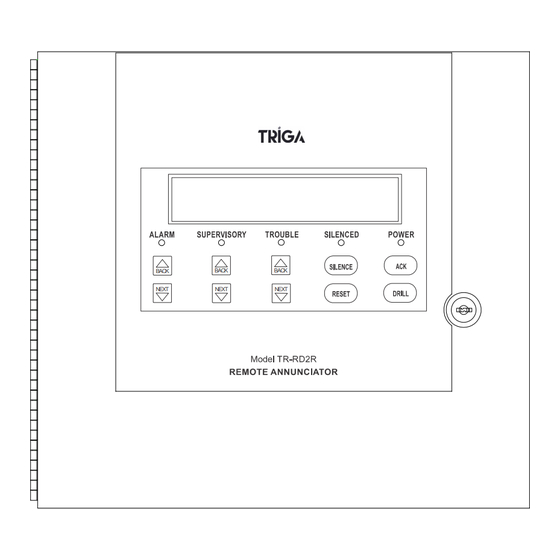

Figure 1 TR-RD2G/R Remote Annunciator
1.1 Compatibility
The TR-RD2R/G is compatible with the Triga Series FACPs. For more
information, refer to the FACP Manual.
1.2 Specifications
Operating Voltage:
Current Standby Current: 27mA
Alarm Current:
Operating Temperature:
Dimensions Flush Mount:
Surface Mount:
Table 1 Specifications
2 Installation
1. Ensure power is turned off at the panel.
2. Mount the TR-RD2R/G in the desired location. See Section 2.1.
3. Connect the TR-RD2R/G to the panel. See Figure 5.
4. Use the DIP switches on the back of the TR-RD2R/G to assign an
ID number. Refer to the FACP manual.
5. The TR-RD2R/G module must be added to the system through
FACP programming. JumpStart can be used to automatically add
the module or it may be added manually. Refer to the FACP Manual
for more information.
BACK BACK
NEXT NEXT
24VDC
53mA
32° to 120° F (0° to 49° C)
Overall:
12.25" W x 11.5" H x 0.875" D
(31.1 cm W x 29.2 cm H x 2.2 cm D)
Backbox: 9.25" W x 8.375"H
(23.5cm W x 21.27cm H)
Including trim ring:
12.25" W x 11.5" H x 3.0" D
(31.1 cm W x 29.2 cm H x 7.6 cm D)
TR-RD2G/R Annunciator
Product Installation Document
PN LS10261-002TR-E:B 5/25/2022 ECN: 00003637
2.1 Mounting
2.1.1 Flush Mounting
Follow these steps to flush mount the TR-RD2R/G.
1. The backbox dimensions are 9.25" W x 8.375" H. The minimum
depth required is 2". Mount the backbox using the mounting holes
shown below.
Figure 2 TR-RD2R/G Backbox Mounting
2. Remove knockouts as needed for wires. There are 10 knockouts
available, two on each side and two in the back of the cabinet.
3. Wire the annunciator board to the main control panel as shown in
Figure 5.
4. Attach the annunciator and door assembly to back box as shown
below using the supplied screws.
Figure 3 Attaching Annunciator/Door Assembly
mounting holes
mounting holes
