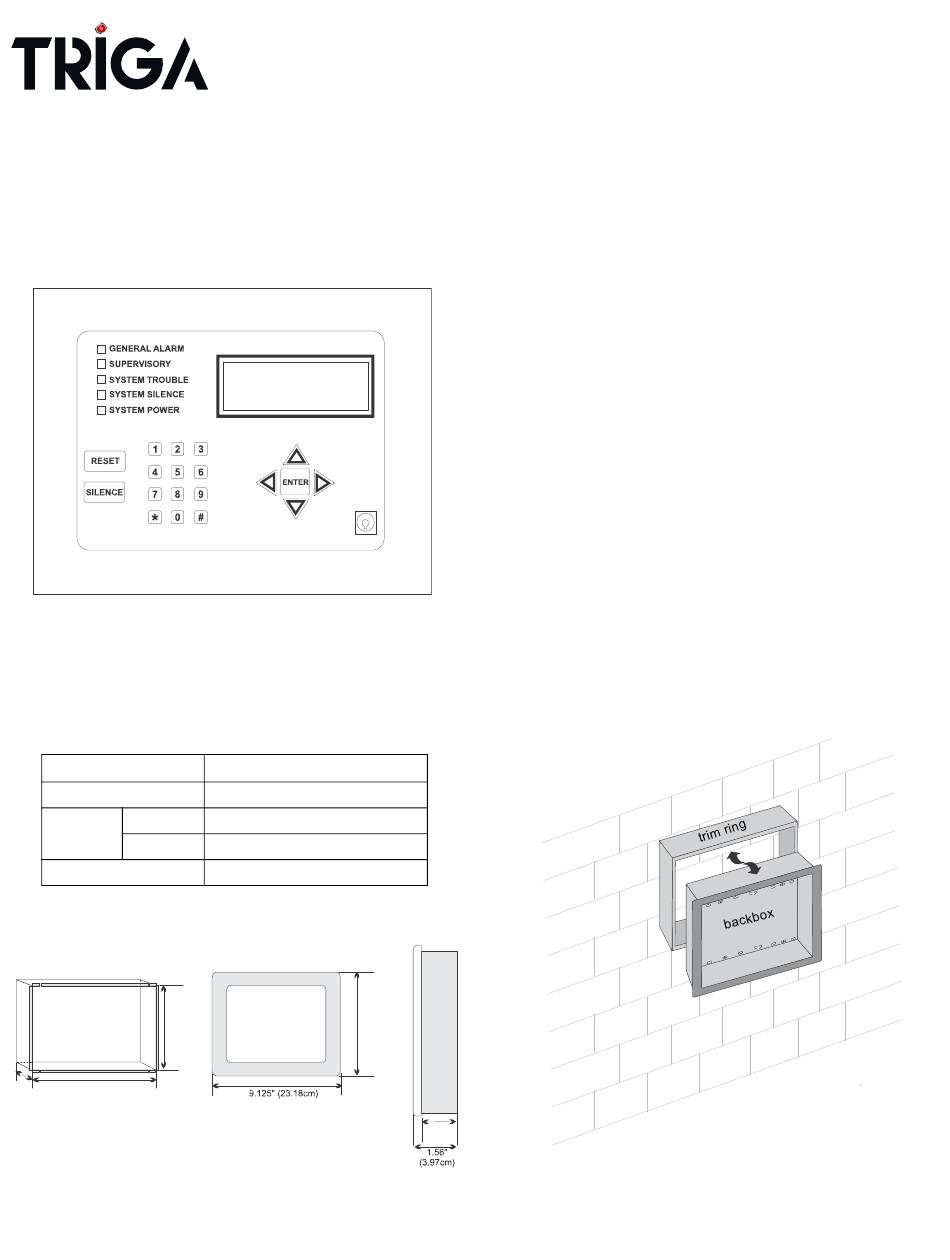

TRIGA TR-RD1G Product Installation Document

TRIGA Life Safety Systems, LLC
7600 Olde Eight Rd, Hudson, Ohio, 44236-1057
Tel: +1 330-577-5199, Email: info@trigaglobal.com
1 Description
The TR-RD1G (gray) and TR-RD1R (red) are optional 4x20 remote
annunciators that can be surface or flush-mounted.

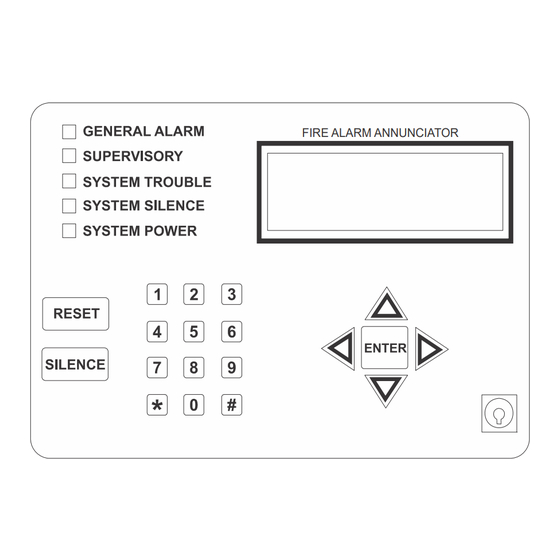

Figure 1 TR-RD1G/R Remote Annunciator
2 Compatibility
The TR-RD1G/R is compatible with Triga FACPs. For more informa-
tion, see the FACP Installation manual.
3 Specifications
Parameter
Operating Voltage:
Current Standby:
Alarm:
Operating Temperature:
backbox
6.44"
(16.35cm)
1 .25 " 8 .125 " (20.64cm)
(3.175cm)
Figure 2 Annunciator Dimensions
FIRE ALARM ANNUNCIATOR
Value
24 VDC
58 mA
68 mA
0° to 49° C (32° to 120° F)
bezel
7 .375 "
(18.73cm)
TR-RD1G/R Remote Fire Annunciator
Product Installation Document
PN LS10258-002TR-E:B 5/25/2022 ECN: 3637
4 Installing the TR-RD1G/R
TR-RD1G/R installation involves the following steps:
1. Ensure power is turned off at the panel.
2. Mount the TR-RD1G/R in the desired location.
3. Connect the TR-RD1G/R to the panel (see Figure 5).
4. Use the DIP switches on the back of the TR-RD1G/R to assign an
ID number. See the FACP Manual for more details.
5. The new TR-RD1G/R module must be added to the system through
programming. The JumpStart
the module automatically. Refer to the FACP Manual for more
information.
5 Mounting
The TR-RD1G/R comes from the factory fully assembled. You must dis-
assemble it for mounting. To disassemble the annunciator, use a 2mm
hex wrench to remove the set screws, located on the bottom of the
annunciator bezel.
5.1 Surface Mounting
The TR-RD1G/R can be mounted directly to a surface or can be attached
to a single, double, or four-square electrical box. Trim Ring Kit TR-
5860TG (gray) and TR-5860TR (red) are available for use when surface
mounting.
1. Drill holes in the surface to match the screw holes on the backbox.
Refer to Figure 4.20 for locations.
2. Fit the trim ring over the backbox, if used.
3. Attach the backbox to the wall using screws provided.
side
view
1 .25 "
(3.175cm)
Figure 3 Trim Ring for Surface-mounting
®
Auto-programming feature will add
