Wireless room unit
QMA230KT
A6V15004474_en--_a
2024-09-17
Wireless room unit
●
Wireless communication KNX IoT over Thread
●
LED touch display
●
Temperature setpoint operation
●
Integrated temperature sensor
●
Easy mounting (wall, flush, tape mount)
●
COV functionality
●
Battery-powered: 2 x alkaline batteries type AA, 1.5 V
●
Temperature accuracy: ±0.5 K @ 25 °C
Smart Infrastructure
Advertisement
Related Manuals for Siemens QMA230KT
Summary of Contents for Siemens QMA230KT

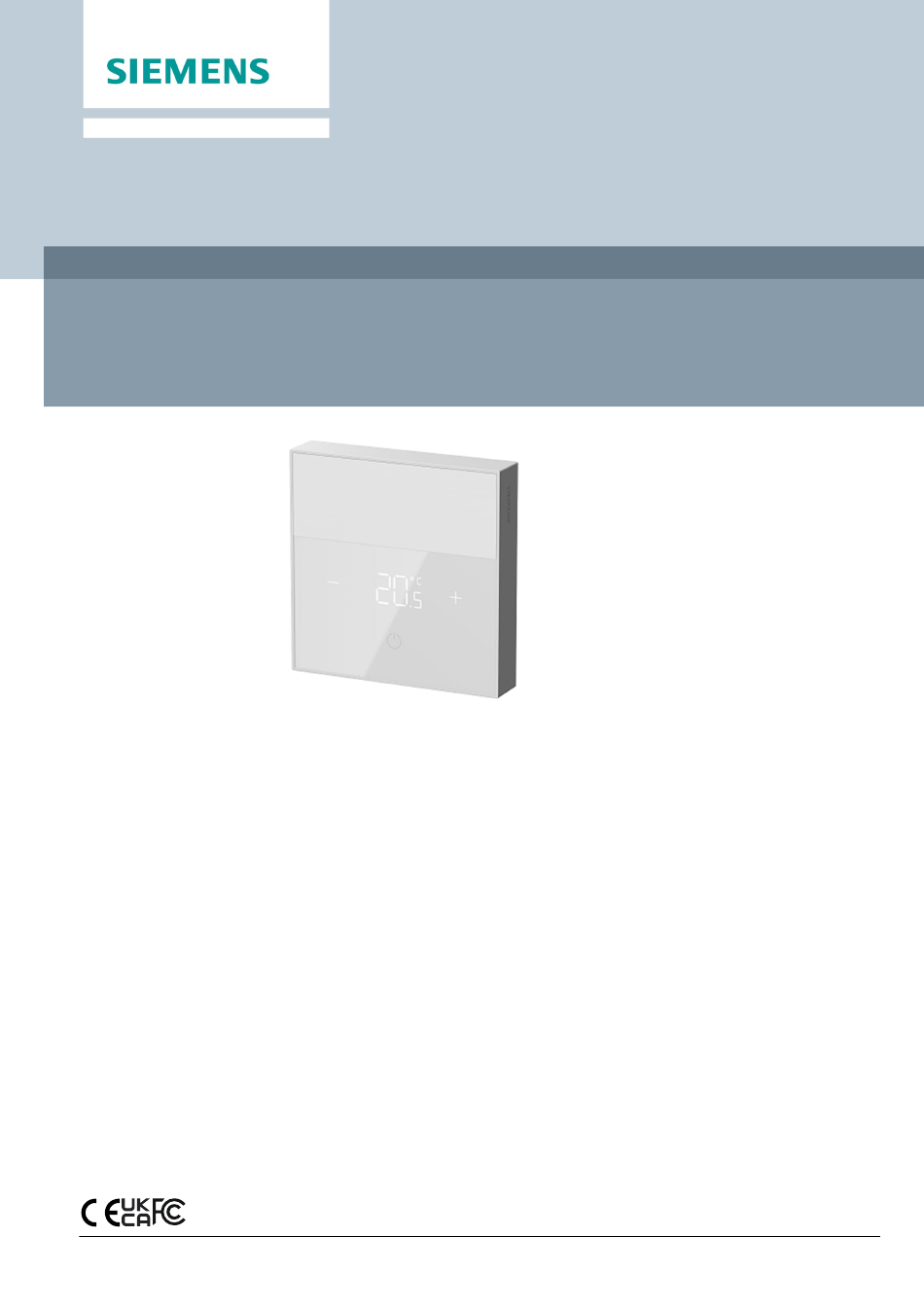

- Page 1 Wireless room unit QMA230KT Wireless room unit ● Wireless communication KNX IoT over Thread ● LED touch display ● Temperature setpoint operation ● Integrated temperature sensor ● Easy mounting (wall, flush, tape mount) ● COV functionality ● Battery-powered: 2 x alkaline batteries type AA, 1.5 V ●...
- Page 2 The wireless room unit QMA230KT is part of the Siemens IoT ecosystem and controls the room temperature in heating and cooling systems. Typical applications: ● Office buildings ● Educational buildings ● Public buildings QMA230KT exchanges data with controllers, room devices and tools via wireless communication KNX IoT over Thread.
- Page 3 OCT100.R S55812-Y101 Wireless room sensors QAA2890/WI S55720-S550 QFA2890/WI S55720-S551 QPA2892/WI S55720-S552 Wireless radiator actuator SSA911.02TH S55181-A102 All documents can be downloaded at http://siemens.com/bt/download. Product documentation Title Document ID Mounting instruction A6V15004458 Operation manual A6V13058284 CE declarations A5W00757582A UKCA A5W02631188A Environmental product declaration A5W00753715A Related documents such as the environmental declarations, declarations of conformity, etc.,...
- Page 4 Radio frequency energy Interference to radio communications ● Install and use equipment in accordance with installation guide. ● Read all regulatory compliance information. Mounting Location ● The device is designed for wall mounting and flush mounting. Siemens A6V15004474_en--_a Smart Infrastructure 2024-09-17...
- Page 5 Temperature (room temperature or setpoint) and unit switching between °C and °F ● Relative setpoint setting and unit is °F, display value only ● When the measured temperature is out of measuring range (0...50 °C/32...122 °F), flashes until temperature is within range. Siemens A6V15004474_en--_a Smart Infrastructure 2024-09-17...
- Page 6 Delete all personal data and dispose of the item(s) at separate collection and recycling facilities in accordance with local and national legislation. For additional details, refer to Siemens information on disposal. Siemens A6V15004474_en--_a Smart Infrastructure...
- Page 7 Ce transmetteur ne doit pas être placé au même endroit ou utilisé simultanément avec un autre transmetteur ou antenne. United Kingdom conformity assessed Contact for regulatory topics: (GB) Siemens plc, Sir William Siemens House, Princess Road, Manchester, M20 2UR Siemens...
- Page 8 Radio equipment directive Simplified EU Declaration of Conformity Hereby, Siemens Switzerland Ltd declares that the radio equipment type QMA230KT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://siemens.com/bt/download.
- Page 9 ● Temperature: 0...50 °C Operation (32...122 °F) ● Ambient humidity: < 95 % r.h. (non-condensing) Mechanical ambient conditions Transport (in transport packaging) as per Class 2M4 IEC/EN 60721-3-2 Operation as per IEC/EN 60721-3-3 Class 3M11 Siemens A6V15004474_en--_a Smart Infrastructure 2024-09-17...
- Page 10 General Material and color Makrolon 6487, white RAL9003 Packaging Corrugated cardboard Weight ● ● without package 148 g ● ● with package 200 g The documents can be downloaded from http://siemens.com/bt/download. Siemens A6V15004474_en--_a Smart Infrastructure 2024-09-17...
- Page 11 Dimensions Siemens A6V15004474_en--_a Smart Infrastructure 2024-09-17...
- Page 12 Issued by © Siemens 2024 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V15004474_en--_a Edition 2024-09-17...
