Page 1

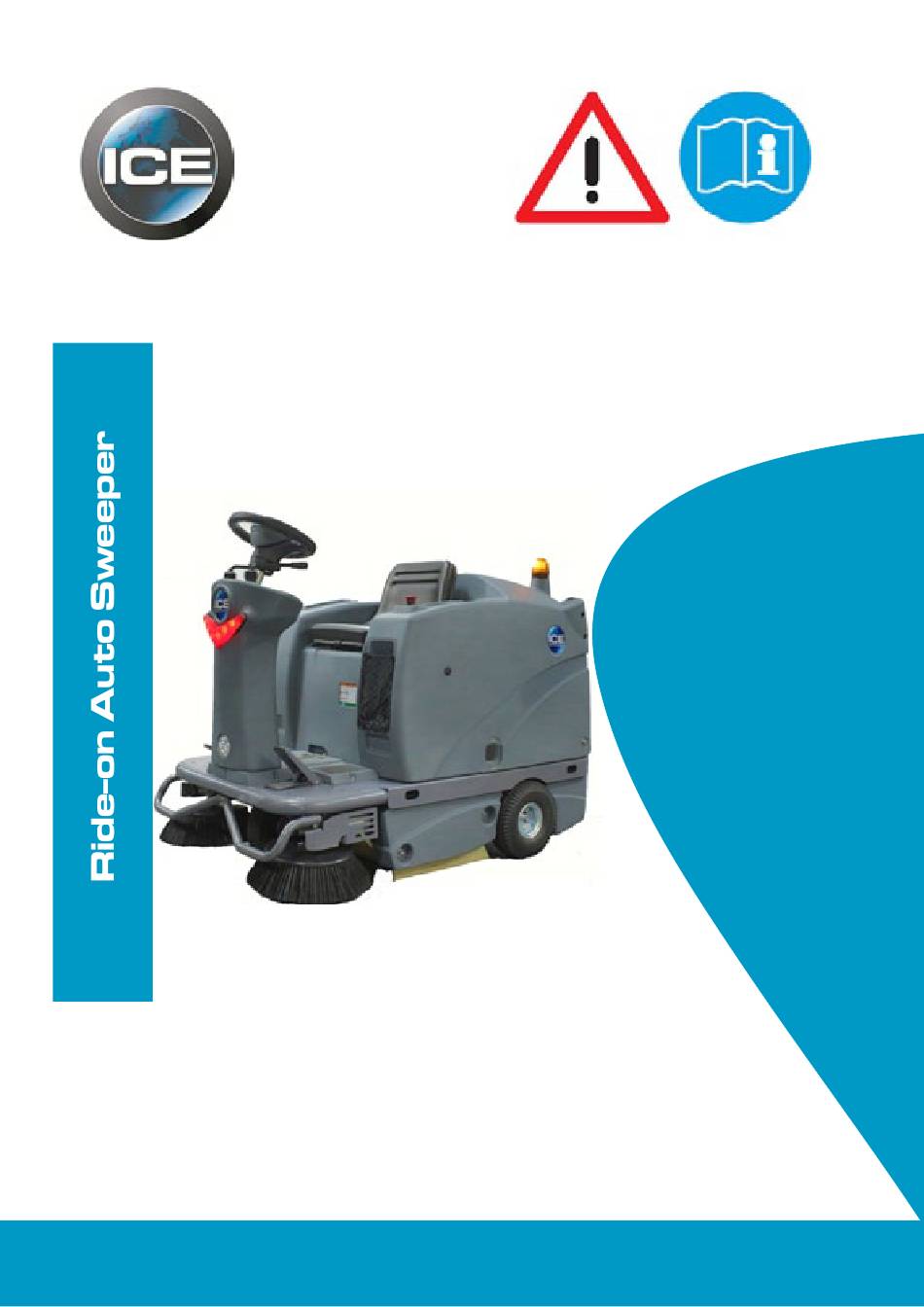

www.icecompanies.com Operator & Parts Manual iS1100 7000702 REV.01(07-2015) INTERNATIONAL CLEANING EQUIPMENT...
Page 2
Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
Page 3
LEfT SIDE BRUSH ASSEMBLy........................35-36 STEERING ASSEMBLy ..........................37-41 fRONT WHEEL ASSEMBLy ........................42-43 PEDAL ASSEMBLy ............................44-45 DRIVE ASSEMBLy............................46-47 SKIRTS ASSEMBLy............................48-49 DUST CONTROL ASSEMBLy........................50-51 HOPPER ASSEMBLy ...........................52-53 ELECTRONIC BOX ASSEMBLy ........................54-55 BATTERy GROUP&BATTERy GROUP......................56-57 ACCESSORIES............................58-59 WEAR&TEAR PARTS ............................. 60 ICE iS1100...
Page 4
- When lead batteries (WET) are installed on this machine, do not tilt the machine more than 30° from its horizontal position to not allow the highly corrosive acid to leak out of the batteries. When the machine is to be tilted to perform maintenance procedures, remove the batteries. ICE iS1100...
Page 5
- Do not charge the batteries if the battery charger cable or the plug are damaged. If the battery charger cable is damaged, contact ICE Service Center. - To reduce the risk of fire, electric shock, or injury, do not leave the machine unattended when it is plugged in.
Page 6
14. Rear skirt 27. Body opening handles 15. Emergency push-button 27a.Off-board battery charger port Press it in case of emergency to stop all the machine functions. To deactivate the emergency push-button, turn it in the direction shown by the arrow. ICE iS1100...
Page 7
29. Hopper fastening hook 35. Tool Holder 30. Hopper handle 36. Vacuum fillter compartment cover 31. Exhaust hole 37. Cover knobs 32. Hopper wheel 38. Internal containers with handle for dumping 33. Right cover (for main broom removal) 39. Serial decal ICE iS1100...
Page 9
58. Charged battery warning light is on, the drive system is operating, if the led 59. Electrical component box ashes, the drive system is malfunctioning 59a. Lamellar fuse box cover 54. Pillar 55. Main fuse 54 55 56 ICE iS1100...
Page 10
– Main and side brooms with harder or softer bristles – Working light – Skirts of various materials – Protective roof for further information concerning the optional accessories, contact an authorised Retailer. iCE IS1100...
Page 11
Battery maximum capacity(optional) 256 Ah C20 Battery container inner size (length x width xheight) 21x14.7x6.1in(534x374x155mm) Dust vacuuming and filtering Values Paper dust filter 5-10 μm 38.8ft (3.6m Main brush compartment vacuum 0.43 in (11mm H filter shaker activation Electric ICE IS1100...
Page 12
27 BK 26 RD 7 Horn RD 7 Out1 (fUNCTION CONTROLLER RD 7 RD 7 BOARD) BK 0 BK 0 BK 0 BK 0 -rif. out rif. pedal +rif. fuse2 fuse1 K1(Ignition Switch) fuse3 CH2-SW CH1-SW fuse4 BAT24V ICE iS1100...
Page 13
Drive system motor Main brush motor Vacuum fan Right side brush motor Left side brush motor filter shaker motor Pedal Drive speed potentiometer (pedal) Out1 Electrobrake output Emergency push-button Driver’s seat safety microswitch Main brush microswitch Side brush microswitch ICE iS1100...
Page 14
1) Buy appropriate batteries (see the Technical Data paragraph and the diagram (42)). For the battery choice and installation, apply to qualified battery Retailers. 2) Install the batteries. 3) Set the battery charger (if equipped) according to the type of batteries installed. ICE iS1100...
Page 15
Nylon main brush&side brush Excellent wear life,but less aggressive and performs less well in conditions with moisture or high humidity.Often used on rough surfaces or high-temperature environments because of its toughness and long wear characteristics. ICE iS1100...
Page 16
W A R N I N G ! B e f o r e l e a v i n g m a c h i n e o r p e r f o r m i n g a n y maintenance,repair,cleaning or replacement procedure,stop on level surface,turn off machine,and remove Ignition key. ICE iS1100...
Page 17
1) Check that the machine storage area is dry and clean. 2) Disconnect the battery connector (44). FIRST PERIOD OF USE After the first 8 hours perform the following procedures: -Check the fastening and connecting parts for proper tightening. -Check the visible parts for integrity and leakages. ICE iS1100...
Page 18
Main brush driving belt visual inspection Nut and screw tightening check Steering chain check and cleaning Main brush driving belt replacement Main motor and drive system motor carbon brush check or replacement (1) And after the first 8 running-in hours. ICE iS1100...
Page 19
Pay careful attention when performing t h e a b o v e - m e n t i o n e d c h e c k s , a n d always use the machine according to the indicated conditions. ICE iS1100...
Page 20
10) Install the broom compartment cover (C, fig. 3) and tighten the knobs (B) and (A). 11) Install the right cover (33), then tighten the knobs (34). 12) Check and adjust the main broom height as shown in the previous paragraph. Figure5 ICE iS1100...
Page 21
4) Install the new side brush on the gearmotor shaft,insert the pin (B, fig. 8) in the holes (D, fig. 8),and Figure8 engage the spring (A, fig. 8) 5) Check and adjust the side brush height as shown in the previous paragraph. ICE iS1100...
Page 22
(36) and check it for integrity and efficiency; if necessary replace it. 14) Assemble the components in the reverse order of disassembly, and note the following: Figure11 -Install the filter (E, Fig. 9) with the wire gauze (B, fig. 10) facing upwards. ICE iS1100...
Page 23
If necessary, for the front skirt control cable adjustment or replacement,. 6) Assemble the components in the reverse Figure17 order of disassembly. ICE iS1100...
Page 24
5) Disconnect the battery charger cable from the electrical mains and place it in its housing on the machine. 6) (for WET batteries only) Close all the caps (43). 7) Close the body (5). The machine is ready to be used. ICE iS1100...
Page 25
It is located in an easily accessible position(15).It has to be pressed in case of emergency, to stop all the machine functions. DRIVER'S SEAT MICROSWITCH It is located inside the driver's seat and it does not allow the machine drive system to operate if the operator is not seated on the driver's seat. ICE iS1100...
Page 26
- Batteries - Engine oil - Polyester dust filter - Main and side brushes - Plastic hoses and components - Electrical and electronic components (*) (*) Refer to the nearest ICE Center especially when scrapping electrical and electronic components. ICE iS1100...
