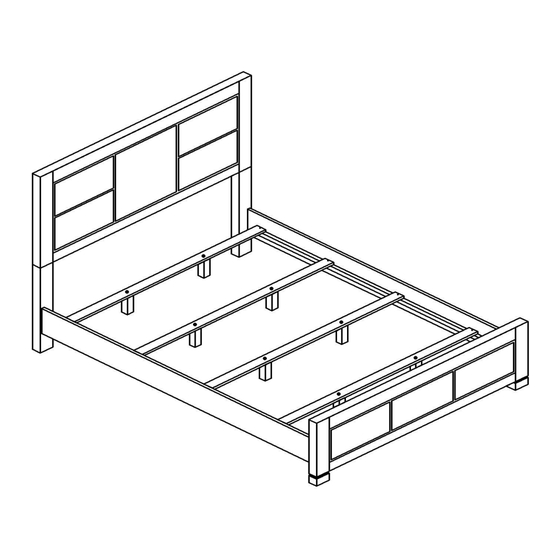

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 224261KE (B1-B3) Eastern King Bed REVISION 0 : 01/24/2022 REVISION 1 : 07 /01/2022 PAGE 1 OF 5 COASTERFURNITURE.COM...
- Page 2 2PCS BED SLAT SUPPORT WITH LEVELER 8PCS BED SLAT 4PCS 224261KE (B1) FROM BOX 1 HEADBOARD COMPLETE 224261KE (B2) FROM BOX 2 FOOTBOARD NOTE: Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
- Page 3 2. This product is for home use only and not intended for commercial establishments. ASSEMBLY TIME 30 MINUTES HARDWARE IDENTIFICATION Z-B3 (BOX 3) - HARDWARE PACK IS LOCATED IN 224261KE (B3) BOLT 14PCS (M8 X 40mm - RBW) LOCK WASHER...
- Page 4 224261KE (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 1 BACK VIEW STEP 2 PAGE 4 OF 5 COASTERFURNITURE.COM...
- Page 5 224261KE (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COMPLETE PAGE 5 OF 5 COASTERFURNITURE.COM...
- Page 6 224261KE (B1-B3) ITEM: INNER SIZE: 77" X 81" 79.5" 18.5" 72" 55" 7" 19.7" 81" 72" 86" 5" 2.7" 79.5" Note : Dimension tolerance ± 5% COASTERFURNITURE.COM...
