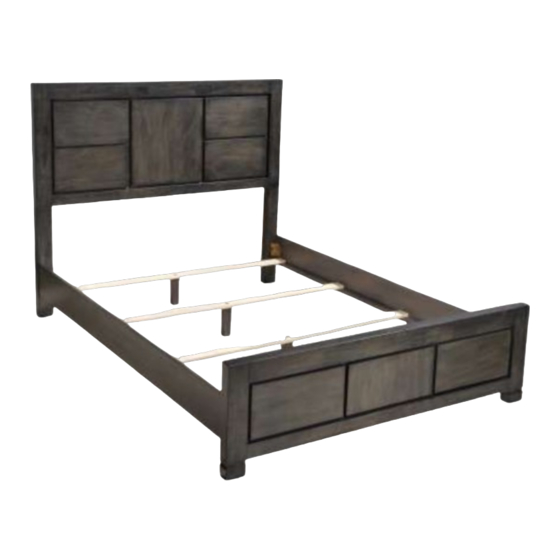

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 224261Q (B1-B3) Queen Bed REVISION 0 : 01/24/2022 PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Parts Identification
224261Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
2. This product is for home use only and not intended for commercial establishments. ASSEMBLY TIME 30 MINUTES HARDWARE IDENTIFICATION Z-B3 (BOX 3) - HARDWARE PACK IS LOCATED IN 224261Q (B3) BOLT 10PCS (M8 X 40mm - RBW) LOCK WASHER... - Page 4 224261Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 PAGE 3 OF 5 COASTERFURNITURE.COM...
- Page 5 224261Q (B1-B3) ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 PAGE 4 OF 5 COASTERFURNITURE.COM...
- Page 6 224261Q (B1-B3) ITEM: INNER SIZE: 61" X 81" 64" 26.6" 56.3" 55" 7" 19.7" 81" 56.3" 86" 6" 2.7" 64" Note : Dimension tolerance ± 5% COASTERFURNITURE.COM...
