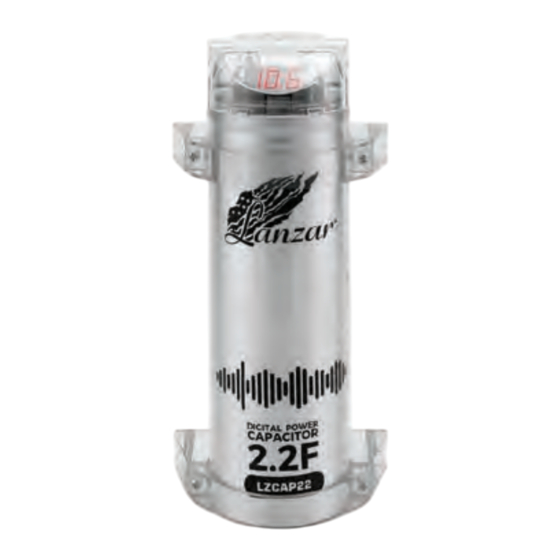

- Page 1 Visit Our Website SCAN ME PyleUSA.com LZCAP22 0.2 Farad Digital Power Capacitor Questions or Comments? We are here to help! USER GUIDE Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
- Page 2 Introduction PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This manual provides detailed information on the function, installation, and operation of the power capacitor. WARNING: To avoid possible injury and damage to your audio system, please study the •...
- Page 3 Installation For maximum performance, the digital power capacitor should be installed as close to your ampli er as possible. The ideal location is one that allows short wiring runs while keeping the capacitor somewhat isolated from the heat created by the ampli er system. The positive power wire should be kept as short as possible and should be connected to the ampli er's battery supply cable.
- Page 4 Power-Up Procedures and Display Functions Features: • 0.2 Farad Digital Display Power Capacitor 1. Connect the power cable to the digital power capacitor. • Capacitance ± 5%. 20-24 Volt Surge, 221°F/105°C Connect the ground cable rst and then the positive cable. •...
