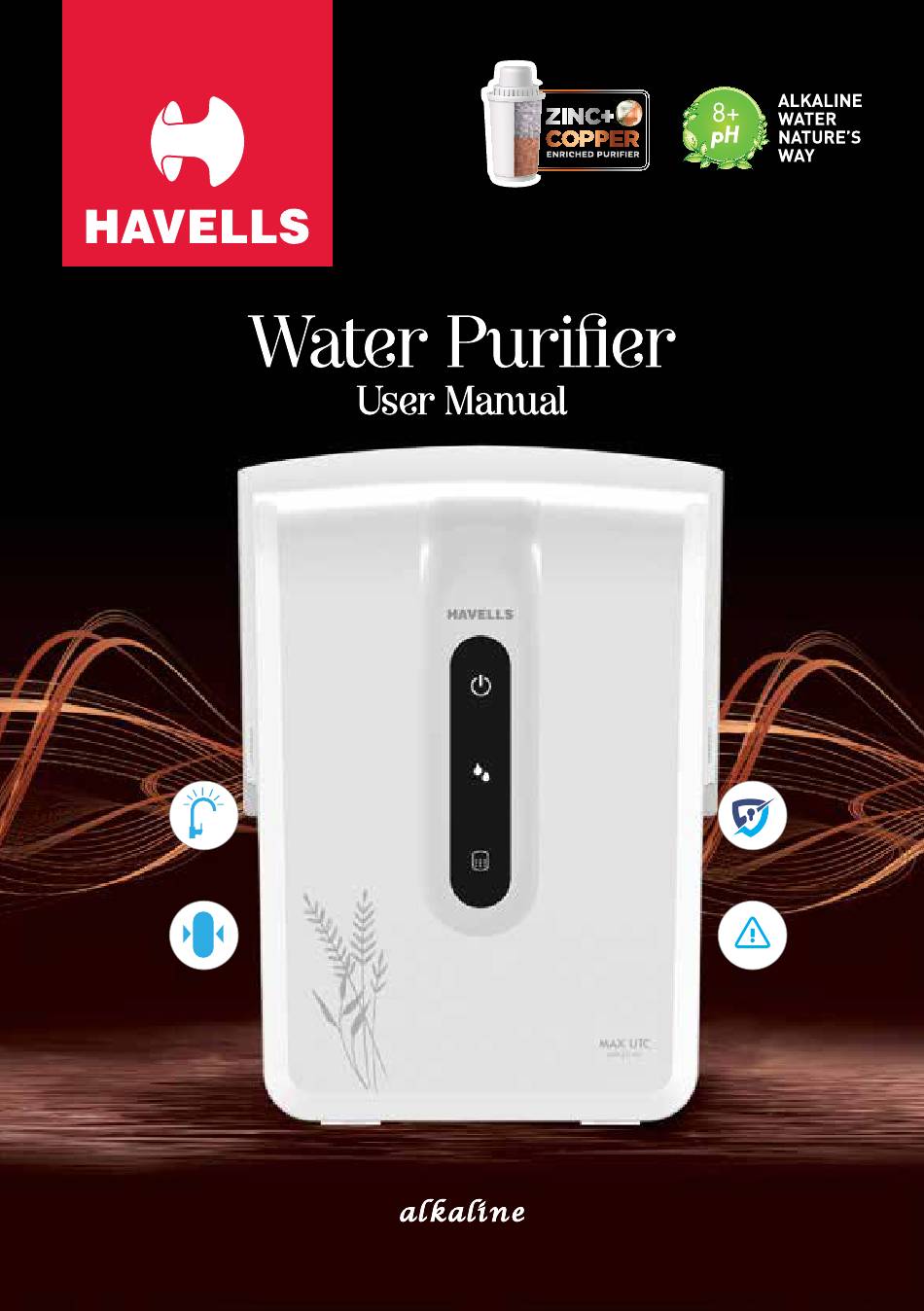

- Page 1 DOUBLE UNIQUE BRASS PROTECTION ROTATING FAUCET COMPACT DESIGN SMART WITH INBUILT ALERTS STORAGE TANK MAX UTC 100% RO & UV PURIFIED ALKALINE WATER Suitable For TDS Up to 2000 mg/L (ppm)
- Page 3 Product overview ....................6 Technical specifications ..................7 Stages of purification ..................8 Water flow diagram....................9 The purification process ................10-11 Key features of Havells water purifier ...............12 Functions of smart indicators ................13 Installation instructions ..................14 Do’s, Don’ts ......................15 Safety instructions ....................16 Cleaning and maintenance ................17 Recommendations and important instructions ..........18...
- Page 4 WELCOME TO HAVELLS WATER PURIFIERS At Havells we believe in making a difference by touching every aspect of our consumers’ lives through the products we make and bringing positive changes in it. Since the very beginning all our products have been manufactured keeping the highest standards of quality and innovation in mind and we make sure that they meet the world class standards that our consumers demand.
- Page 5 It’s a matter of great pride for us that you’ve entrusted Havells Water Purifier for your family and home. Our experts with decades of experience in Water Purification Technology have been listening to the consumers like you and have developed this purifier keeping in mind your needs and demanding lifestyle.
- Page 6 PRODUCT OVERVIEW – MAX UTC ALKALINE TOP COVER POWER INDICATOR PROCESS INDICATOR TANK FULL INDICATOR BOTTOM COVER FAUCET WATER INLET POWER INPUT FEED WATER INLET DETAIL A SCALE 1 : 1.5 NON DRINKABLE WATER OUTLET...
- Page 7 TECHNICAL SPECIFICATIONS PARAMETERS VALUES Product dimensions (H x D x W) in cm [ 40 (H) x 43.9 (D) x 28.6 (W) ] cm Net weight ~ 10.5 kg Flow rate* Up to 25 L/h Storage Tank capacity 7 L at 0.276 MPa (40 psi) Purification technology Absolute safety through 100% RO &...
- Page 8 STAGES OF PURIFICATION MAX UTC ALKALINE & BACTERIOSTATIC ALKALINE TASTE ENHANCER...
- Page 10 THE PURIFICATION PROCESS Havells Water Purifiers have a powerful purification process which is divided in to 3 Phases viz. Pre-Treatment, Purification & Value Additions. In pre-treatment process water will pass through Membrane Performance Enhancer, Sediment Filter and Activated Carbon Filter-cum-adsorber.
- Page 11 REVERSE OSMOSIS MEMBRANE Reverse Osmosis Membrane removes dissolved contaminents such as dissolved solids, salinity, pesticides, herbicides as well as hazardous heavy metals like Arsenic, Chromium, Lead and Fluorides etc. It also removes harmful microbiological impurities such as bacteria, viruses and cysts from the feed water. It ensures absolutely safe and pure drinking water.
- Page 12 Easy to install & service, under the sink. Optimize the space of your modular kitchen, with inbuilt storage tank. TDS REMOVAL OF UP TO 2000 mg/L (ppm): Havells Water Purifiers work effectively in TDS of 2000 mg/L (ppm) and deliver pure and healthy water that taste good.
- Page 13 FUNCTIONS OF SMART INDICATORS SELF-DIAGNOSTIC MODE When machine is switched - ON all the indicators will glow for a fraction of second. Thereafter the power indicator will glow solid & same time purification process indicator will also glow solid for 30 seconds. During this period the water present in UV column will get disinfected.
- Page 14 INSTALLATION INSTRUCTIONS Before installation, take out the following items from accessory kit for installation: a) Diverter valve b) Faucet box Select an appropriate water connection point under the counter. Be sure to turn off the water supply. Ensure water purifier is connected to ambient temperature water supply only. Fix diverter valve with the help of pipe wrench/plumbing equipment at selected water point.
- Page 15 To keep your purifier functioning properly, always use Havells genuine spare parts. Call Havells customer care for any assistance and service requirement. Keep the purifier in power ON mode to ensure water availability at all times. System automatically shuts OFF when tank is full of purified water.
- Page 16 SAFETY INSTRUCTIONS Havells Water Purifier is designed keeping in mind the highest safety standards, but there are certain safety precautions that need to be followed while using the product for its proper functioning. Do not move or relocate the purifier when it is working.
- Page 17 Do not try to open or tamper the purifier yourself if you observe any problem. Kindly contact Havells Customer Care to resolve the issue. Water purifier should be examined by Havells trained service engineer only.
- Page 18 RECOMMENDATIONS AND IMPORTANT INSTRUCTIONS Recommended Cartridge Replacement: Membrane Performance Enhancer Cartridge, Sediment Cartridge and Activated Carbon Cartridge need to be replaced after 1 year of installation or after dispensing 6000 litre* of purified water, whichever is earlier. RO (Reverse Osmosis) Membrane Replacement: As per the warranty, RO Membrane needs to be replaced after 1 year of installation or after dispensing 6000 litre* of purified water, whichever is earlier.
- Page 19 1. TDS Meter Range: From 0 mg/L to 2000 mg/L. 2. Tolerance: ±10% of water TDS. 3. Depending on the make of the meters, the calibration buttons may be “on/off” or “hold” or a combination of both. Contact authorized Havells service technician for support.
- Page 20 HOW TO REUSE THE FLUSHED WATER Although the flushed water from the purifier has slightly higher concentration of TDS and hardness, but it is filtered and activated carbon treated tap water. It is recomended to use this water for following activities: •...
- Page 21 2. Is the Cartridge before starting the replacement due purification process as per the service again. requirement? 2. Contact Havells Customer Care to request for the cartridge replacement. Purification time 1. Is the diverter valve 1. Open the water inlet open properly? valve completely.
- Page 22 3. How much time does it take to purify water in Havells Water purifier? Havells Water Purifier (MAX UTC ALKALINE) can purify upto 25 litre of water per hour. However, time taken for purification depends on the water quality, input pressure and life of the cartridges.
- Page 23 7. Can I service the purifier on my own? It is not recommended. Your water purifier should always be serviced by Havells Service Engineer. Always contact the customer care if you are facing any issue which requires service or opening of the device to check it.
- Page 24 Replacement of part would be purely at the discretion of Havells India Limited, the same part will be replaced with the part model of price equivalent at the time of purchase.
- Page 25 16. In case of any unpredicted situation and non -availability of spares, prevailing depreciation policy of Havells India Limited (subject to the sole discretion of Havells India Limited, may be changed without prior notice) will be applied to the product as a solution.
- Page 26 Havells India Ltd. QRG Tower, 2D, Sector-126, Expressway, Noida - 201304. U.P. (INDIA) E-mail: customercare@havells.com, Website: www.havells.com Customer Care No.: 08045 77 1313 WhatsApp No.: +91-9711773333 Join us on Facebook at www.facebook.com/havells & share your ways to save the planet!
- Page 27 Product Model Product Serial No. * This warranty card is valid only for products sold by Havells India Limited in Indian market. This warranty is not transferable and is applicable to the original purchaser only. Fill out this record and keep it together with your purchase docket in a safe place. Should you require service under the terms of this warranty, please contact us.
- Page 28 Havells India Ltd. QRG Tower, 2D, Sector-126, Expressway, Noida - 201304. U.P. (INDIA) E-mail: customercare@havells.com, Website: www.havells.com Customer Care No.: 08045 77 1313, WhatsApp No.: +91-9711773333 Join us on Facebook at www.facebook.com/havells & share your ways to save the planet!
