Summary of Contents for Havells GRACIA ALKALINE FAB

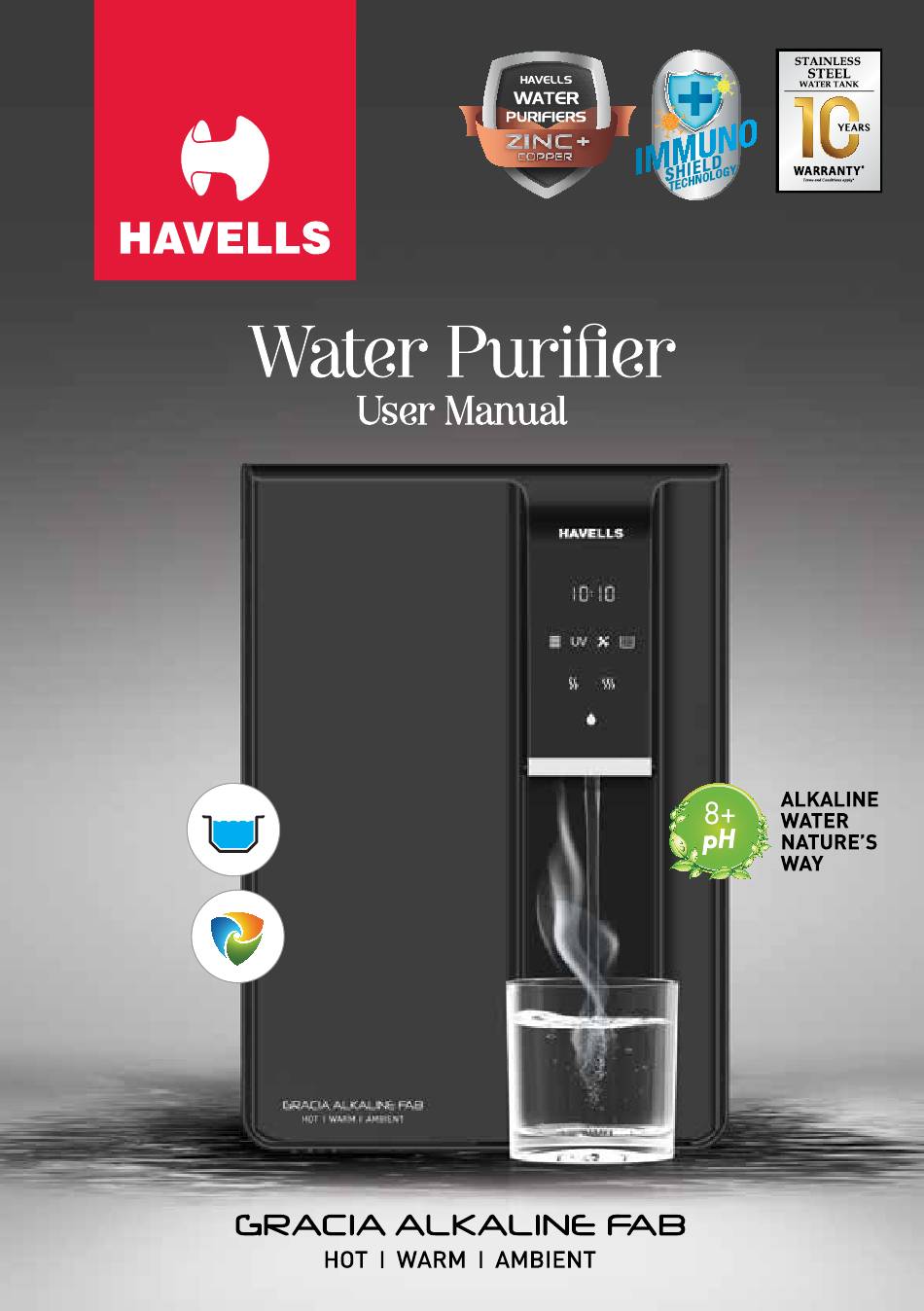

- Page 1 STAINLESS STEEL WATER TANK TRIPLE PROTECTION...
-
Page 3: Table Of Contents
Technical specifications ................... 5 Stages of purification ..................6 Water flow diagram................... 7 The purification process................8-9 Key features of Havells water purifier............10-11 Functions of smart indicators ..............12-17 Installation instructions ................. 18 Do’s, Don’ts & safety instructions ..............19 Safety Instructions .................. -
Page 4: Welcome To Havells Water Purifiers
WELCOME TO HAVELLS WATER PURIFIERS At Havells we believe in making a difference by touching every aspect of our consumers’ lives through the products we make and bringing positive changes in it. Since the very beginning all our products have been manufactured keeping the highest standards of quality and innovation in mind and we make sure that they meet the world class standards that our consumers demand. - Page 5 It’s a matter of great pride for us that you’ve entrusted Havells Water Purifier for your family and home. Our experts with decades of experience in Water Purification Technology have been listening to the consumers like you and have developed this purifier keeping in mind your needs and demanding lifestyle.
-
Page 6: Product Overview
PRODUCT OVERVIEW – GRACIA ALKALINE FAB All Dimensions are in mm, until & unless Specified TOP COVER DISPLAY PANEL FRONT COVER MAIN BODY REAR COVER If in Doubt, Please Ask FRONT DECO NON DRINKABLE FEED WATER INLET WATER OUTLET DISPLAY PANEL... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS- GRACIA ALKALINE FAB PARAMETERS VALUES Product dimensions (L×W×H) in cm (28.4 x 35.4 x 50) cm Net weight ~ 12.8 kg Flow rate* Up to 15 L/h max. ~ 6.8 L ± 300 ml Storage tank capacity ~ 800 ml... -
Page 8: Stages Of Purification
STAGES OF PURIFICATION GRACIA ALKALINE FAB MEMBRANE SEDIMENT CARTRIDGE PERFORMANCE ENHANCER INPUT WATER REVERSE OSMOSIS ACTIVATED MEMBRANE CARBON CARTRIDGE REVITALIZER GERMICIDAL CARTRIDGE UV PLUS BACTERIOSTATIC ALKALINE TASTE ENHANCER ABSOLUTLY SAFE & HEALTHY DRINKING WATER... -
Page 10: The Purification Process
THE PURIFICATION PROCESS Havells Water Purifiers have a powerful purification process which is divided in to 3 Phases viz. Pre-Treatment, Purification & Value Additions. In pre- treatment process water will pass through Membrane Performance Enhancer, Sediment Filter and Activated Carbon Filter. During the purification process 100% water passes through RO Membrane followed by Germicidal UV disinfection column. - Page 11 REVERSE OSMOSIS MEMBRANE Reverse Osmosis Membrane removes dissolved contaminants such as dissolved solids, salinity, pesticides, herbicides as well as hazardous heavy metals like Arsenic, Chromium, Lead and Fluorides etc. It also removes harmful microbiological impurities such as bacteria, viruses and cysts from the feed water. It ensures absolutely safe and pure drinking water.
-
Page 12: Key Features Of Havells Water Purifier
KEY FEATURES OF HAVELLS WATER PURIFIER TRIPLE PROTECTION: 100 % RO + GERMICIDAL UV COLUMN + UV LED PURIFICATION Absolute Safety through 100% RO Purified Water: 100% Water passes through the RO Membrane to ensure absolutely safe and pure drinking water. - Page 13 LED COLOUR TEMPERATURE GUIDE Color temperature Red in appearance when warm water & hot water dispense and blue when ambient water dispense. CONTEMPORARY DESIGN & AESTHETICS Futuristic design, superior dual tone colour finish, compact design and functional display panel, compliment your kitchen décor. AUTO DIAGNOSTIC System diagnoses performance of vital components to ensure optimum performance and display error codes.
-
Page 14: Functions Of Smart Indicators
FUNCTIONS OF SMART INDICATORS DIGITAL CLOCK DISPLAY Switch ON your Gracia Water purifier, system will go in self check mode and all indications on display panel will glow for 5 seconds. For clock setting, within first 5 seconds press warm and drop icon together. Touch Warm icon to decrement and Hot icon to increment the digit. - Page 15 After every 6 months if preventive maintenance is not attended in time, the service indication will start blinking and a message ‘PSEr’ will appear on the clock for 2 seconds at an interval of 10 seconds. Please call Havells Service to attend the machine for preventive maintenance.
- Page 16 To select Warm water dispense option: (Warm water set temperature is 45 Step Pictorial Process Touch and hold WARM icon for 3 seconds to turn ON heating water. During water heating process, WARM icon intensity will be increasing and decreasing. When temperature reached 45 °C, WARM icon will be solid ON with a long beep indicating ready to dispense warm water.
- Page 17 To select Hot water dispense option: (Hot water set temperature is 80 Step Pictorial Process Touch and hold HOT icon for 3 seconds to turn ON heating water. During water heating process, HOT icon intensity will be increasing and decreasing. When temperature reached 80 HOT icon will be solid ON with a long beep indicating ready to dispense hot water Touch and hold Hot icon for 1 second.
- Page 18 ERRORS & THEIR DEFINITION Type of faults, Indications & Error codes INDICATION In case fault detected in UV lamp functioning then the indicator ON CLOCK will blink & the buzzer will beep in every 10 seconds interval. DISPLAY Error code message “SE- 01”...
- Page 19 INDICATION In case fault detected in PCB functioning then the indicator will ON CLOCK blink. Error code message “SE- 06” will appear in clock display. DISPLAY SE : 06 INDICATION In case fault detected in temperature sensor fault then the ON CLOCK indicator will blink.
-
Page 20: Installation Instructions
INSTALLATION INSTRUCTIONS Open the carton and take out the following items from accessory kit for installation: a. Diverter valve b. Mounting plate with plastic inserts and mounting screws c. PL 4 pipe-White and blue Select an appropriate water connection point. Please note water purifier is connected to ambient temperature water supply only. -
Page 21: Do's, Don'ts & Safety Instructions
* Do not make modifications to a cord’s plug at any time. * DO NOT fix or try to repair any component parts. If you find any wrong in your Gracia Water Purifier, Please call Havells Service to attend the machine for preventive maintenance. -
Page 22: Safety Instructions
SAFETY INSTRUCTIONS Havells Water Purifier is designed keeping in mind the highest safety standards, but there are certain safety precautions that need to be followed while using the product for its proper functioning. Hot water is dangerous especially for children, Aged or disabled. -
Page 23: Cleaning And Maintenance
Do not try to open or tamper the purifier yourself if you observe any problem. Kindly contact Havells Customer Care to resolve the issue. Water purifier should be examined by Havells trained service engineer only. -
Page 24: Recommendations And Important Instructions
RECOMMENDATIONS AND IMPORTANT INSTRUCTIONS RECOMMENDED CARTRIDGE REPLACEMENT: Membrane Performance Enhancer Cartridge, Sediment Cartridge, Activated Carbon Cartridge need to be replaced after 1 year of installation or after dispensing 6000 litre* of purified water, whichever is earlier. RECOMMENDED CARTRIDGE REPLACEMENT: As per the warranty, RO Membrane needs to be replaced after 1 year of installation or after dispensing 6000 litre* of purified water, whichever is earlier. -
Page 25: How To Reuse The Flushed Water
3. Is the Cartridge replacement due as again. per the service requirement? 3. Contact Havells Customer Care to request for the cartridge 1. Open the water inlet valve 1. Is the diverter valve open properly? completely. -
Page 26: Faqs
4. How much time does it take to purify water in Havells Water purifier? Havells Water Purifier (GRACIA ALKALINE FAB) can purify upto 15 litre of water per hour However, time taken for purification depends on the feed water quality, input pressure and life of the cartridges. - Page 27 7. What should I do if there is no water in the storage tank? In case there is no water in the storage tank, plesae check if inlet water supply is on and power is switched on. If none of this applicable, contact Havells Customer Care for further assistance.
-
Page 28: Warranty Terms And Conditions
Replacement of part would be purely at the discretion of Havells India Limited, the same part will be replaced with the part model of price equivalent at the time of purchase. - Page 29 16. In case of any unpredicted situation and non -availability of spares, prevailing depreciation policy of Havells India Limited (subject to the sole discretion of Havells India Limited, may be changed without prior notice) will be applied to the product as a solution.
-
Page 30: Havells Customer Care
Havells India Ltd. QRG Tower, 2D, Sector-126, Expressway, Noida - 201304. U.P. (INDIA) E-mail: customercare@havells.com, Website: www.havells.com Customer Care No.: 08045 77 1313 WhatsApp No.: +91-9711773333 Join us on Facebook at www.facebook.com/havells & share your ways to save the planet! -
Page 31: Warranty Card
Product Model Product Serial No. * This warranty card is valid only for products sold by Havells India Limited in Indian market. This warranty is not transferable and is applicable to the original pruchaser only. Fill out this record and keep it together with your purchase docket in a safe place. Should you require service under the terms of this warranty, please contact us. - Page 32 Havells India Ltd. QRG Tower, 2D, Sector-126, Expressway, Noida - 201304. U.P. (INDIA) E-mail: customercare@havells.com, Website: www.havells.com Customer Care No.: 08045 77 1313, WhatsApp No.: +91-9711773333 Join us on Facebook at www.facebook.com/havells & share your ways to save the planet!
