Tait T02-00004-0204 Installation Instructions

T02-00004-0204/T02-00004-0205
High-Power Remote Speakers
Installation Instructions
T02-00004-0204 remote speaker (for 25W
radios) and the T02-00004-0205 remote
speaker (for 30-50W radios) are installed in
parallel with the radio's existing internal
speaker. The remote speaker can then be
installed at some distance from the radio, or
it can be used to increase the volume of the
audio from the radio's existing internal
speaker.

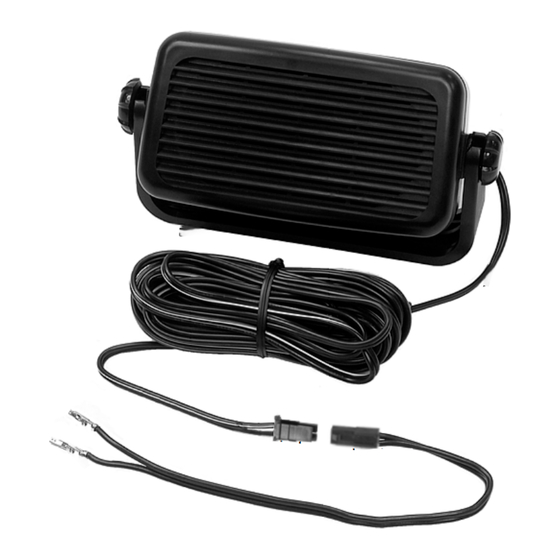

The remote speaker is supplied with a socket
housing (already installed) and a flying lead
connector. The flying lead connector enables
the speaker to be easily removed and
reconnected as required.
The flying lead connector is terminated with
two receptacles. The receptacles supplied
with the T02-00004-0204 (for 25W radios) are different to those supplied with the T02-
00004-0205 (for 30-50W radios). Two spare receptacles are included with each kit, along
with four mounting screws and washers.
Installation
Remote Speaker Mounting
1 Mount the remote speaker where it will not interfere with the operation of any vehicle
controls.
2 Remove the remote speaker from the mounting bracket and use the screws and washers
provided to fix the mounting bracket securely in the chosen location.
Notice Check before drilling that the drill will not damage any components or wiring
behind the mounting location.
If mounting the bracket onto a metal surface, drill two 3.5mm (0.14 inch) holes in
■
the appropriate locations and secure the bracket with the supplied self tapping
screws.
If mounting the bracket to any other material, such as plastic, drill two 4.5mm
■
(0.18 inch) holes and attach the bracket with screws and captive nuts, or similar.
3 Attach the speaker to the mounting bracket using the thumbscrews.
© Tait Limited December 2017
www.taitradio.com
402-00109-00

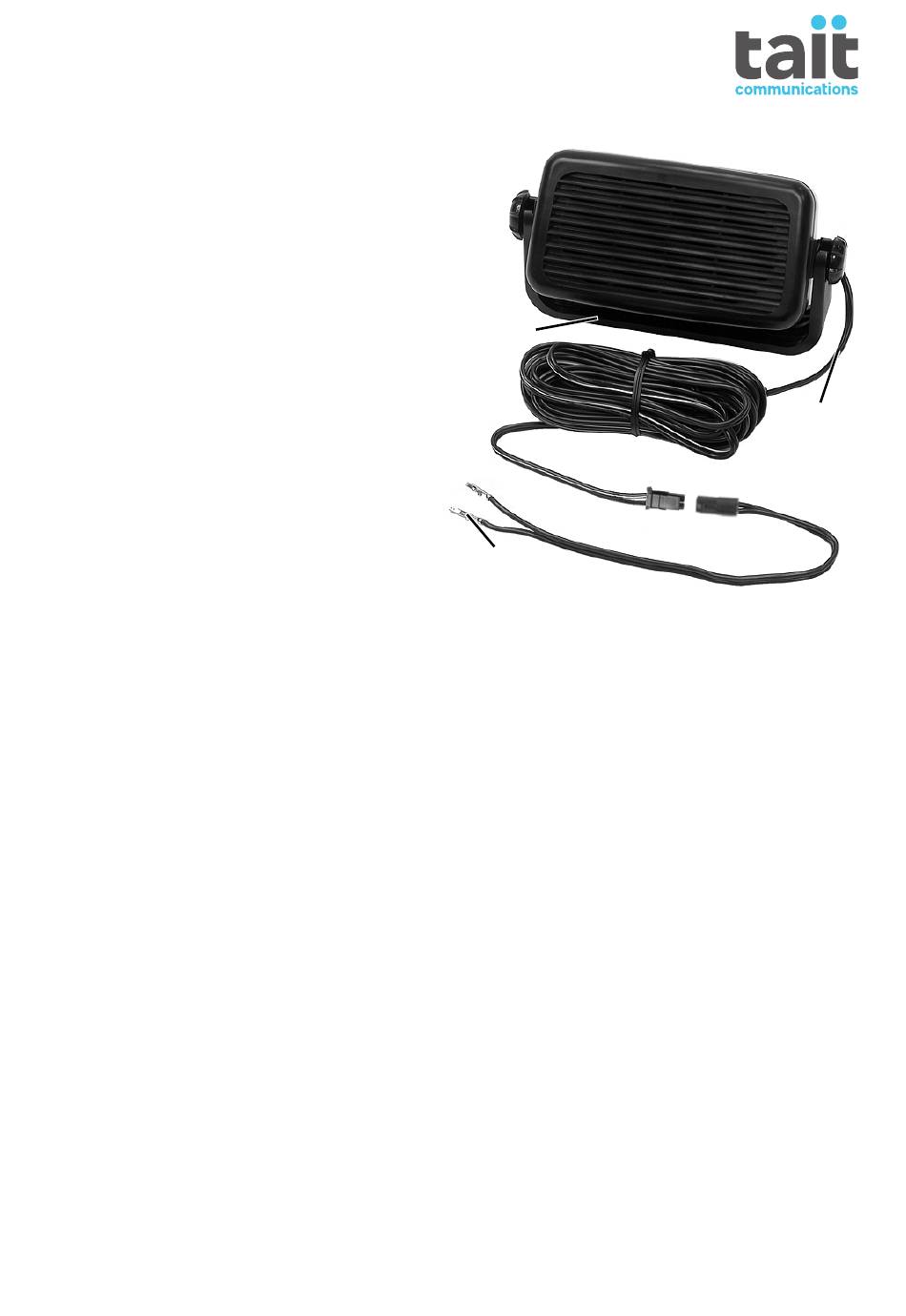

mounting
bracket
socket
housing
receptacles
remote
speaker
cable
flying lead
connector
