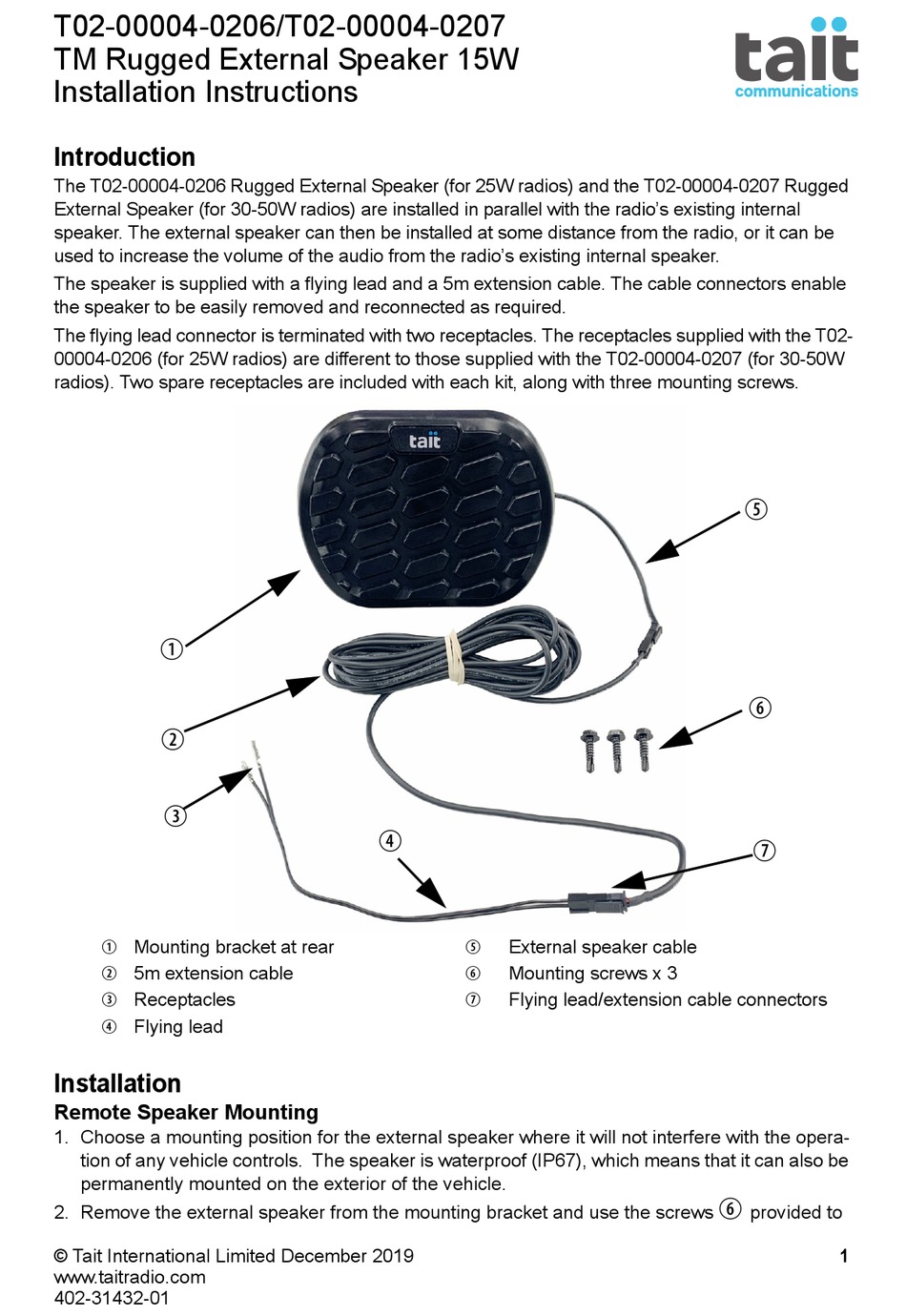

T02-00004-0206/T02-00004-0207

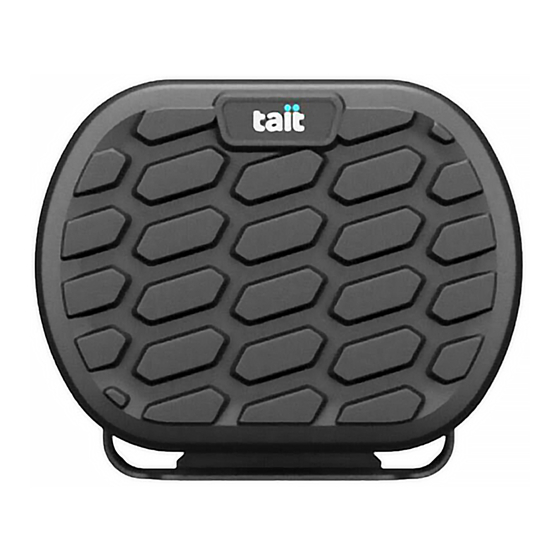

TM Rugged External Speaker 15W
Installation Instructions
Introduction
The T02-00004-0206 Rugged External Speaker (for 25W radios) and the T02-00004-0207 Rugged
External Speaker (for 30-50W radios) are installed in parallel with the radio's existing internal
speaker. The external speaker can then be installed at some distance from the radio, or it can be
used to increase the volume of the audio from the radio's existing internal speaker.
The speaker is supplied with a flying lead and a 5m extension cable. The cable connectors enable
the speaker to be easily removed and reconnected as required.
The flying lead connector is terminated with two receptacles. The receptacles supplied with the T02-
00004-0206 (for 25W radios) are different to those supplied with the T02-00004-0207 (for 30-50W
radios). Two spare receptacles are included with each kit, along with three mounting screws.
b
c
d
b Mounting bracket at rear
c 5m extension cable
d Receptacles
e Flying lead
Installation
Remote Speaker Mounting
1. Choose a mounting position for the external speaker where it will not interfere with the opera-
tion of any vehicle controls. The speaker is waterproof (IP67), which means that it can also be
permanently mounted on the exterior of the vehicle.
2. Remove the external speaker from the mounting bracket and use the screws
© Tait International Limited December 2019
www.taitradio.com
402-31432-01
e
External speaker cable
f
Mounting screws x 3
g
Flying lead/extension cable connectors
h
f
g
h
g
provided to
1
Advertisement
Table of Contents
Related Manuals for Tait T02-00004-0206
Summary of Contents for Tait T02-00004-0206
-
Page 1: Installation Instructions
Installation Instructions Introduction The T02-00004-0206 Rugged External Speaker (for 25W radios) and the T02-00004-0207 Rugged External Speaker (for 30-50W radios) are installed in parallel with the radio’s existing internal speaker. The external speaker can then be installed at some distance from the radio, or it can be used to increase the volume of the audio from the radio’s existing internal speaker. -
Page 2: Power Connector Wiring
The positive remote speaker wire has a white stripe. T02-00004-0206 External Speaker (25W Radios) For the T02-00004-0206 external speaker (25W radios), insert the flying lead receptacles: insert the positive wire and receptacle into the position nearest the red wire ■...
