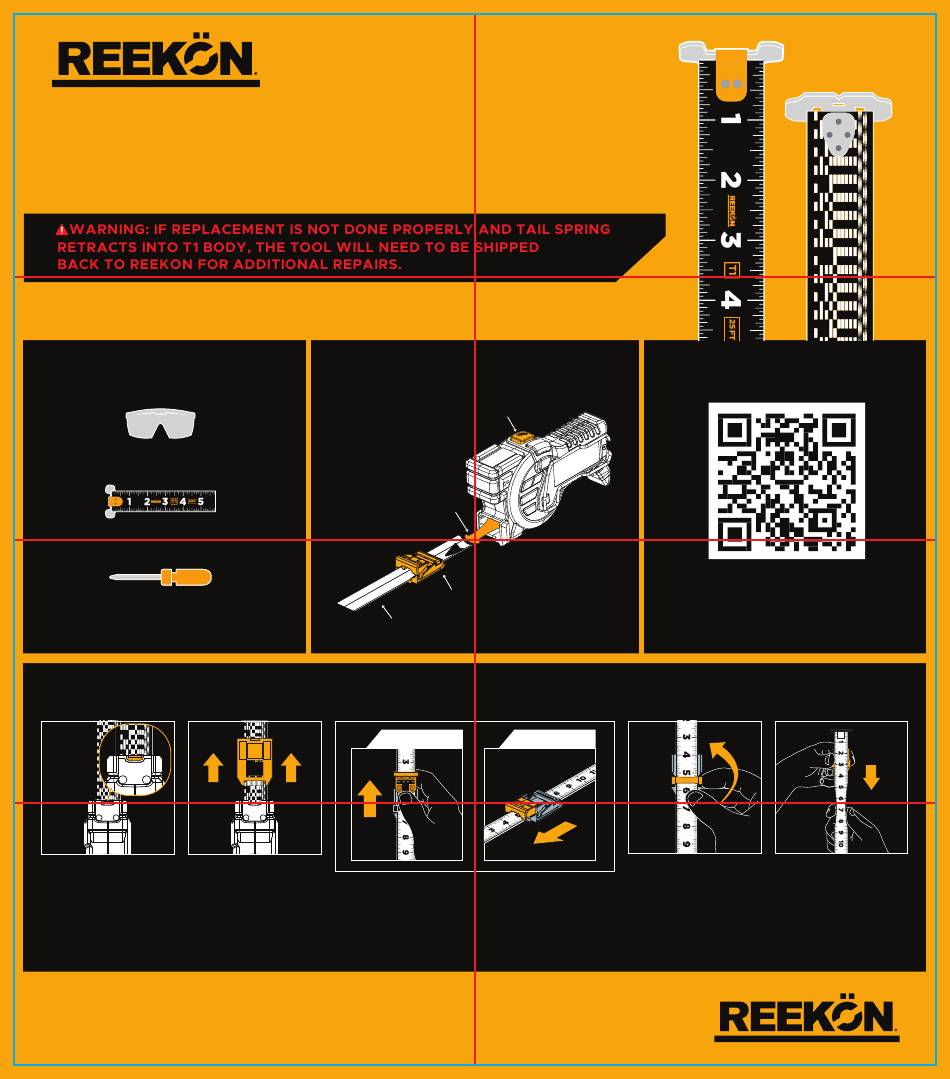

REEKON T1 Tomahawk Instructions

BLADE REPLACEMENT
INSTRUCTIONS
FOR ADDITIONAL HELP REPLACING YOUR T1 BLADE SCAN THE QR CODE OR VISIT OUR
WEBSITE AT REEKON.XYZ/T1B
TOOLS NEEDED
Safety glasses
T1 Replacement Blade
#0 Phillips Head
Screwdriver
1. REMOVING THE READER MODULE
PULL TAB
A. Flip your T1 upside B. Pull on the tab to slide
down and remove the two the loose Reader Module
screws at the front of your out of the T1 shell and flip
T1 with a #0 Phillips head the T1 right side up.
screwdriver. Next, locate
the small tab placed in
front of the two screws.
REEKON TOOLS
MAY 2023
PART NAME GUIDE
Autolock
Power Spring Tail
Tape Blade
TOP VIEW
PULL TAB
C. Separate the top piece from the bottom piece of
the Reader Module by holding the bottom firmly in
place and sliding the top piece forward and away
from the device with your thumb.
REFER TO MANUAL FOR TAPE MEASURE BLADE REPLACEMENT
290 291 292
Reader Module
SIDE VIEW
D. Remove the wiper by
pulling up on either the left
of right side with your
finger and thumb.
PULLING TAPE PAST THE END LINE WILL DAMAGE TH
293 294 295
VIDEO TUTORIAL
Scan the code and visit our
website at reekon.xyz/t1b
animations and videos of the Blade
Replacement process.
F. Pinch the Tape Blade
just below the Reader
Module. Then, slide the
Reader Module backward
to remove it from the Tape
Blade.
296 297
to see
