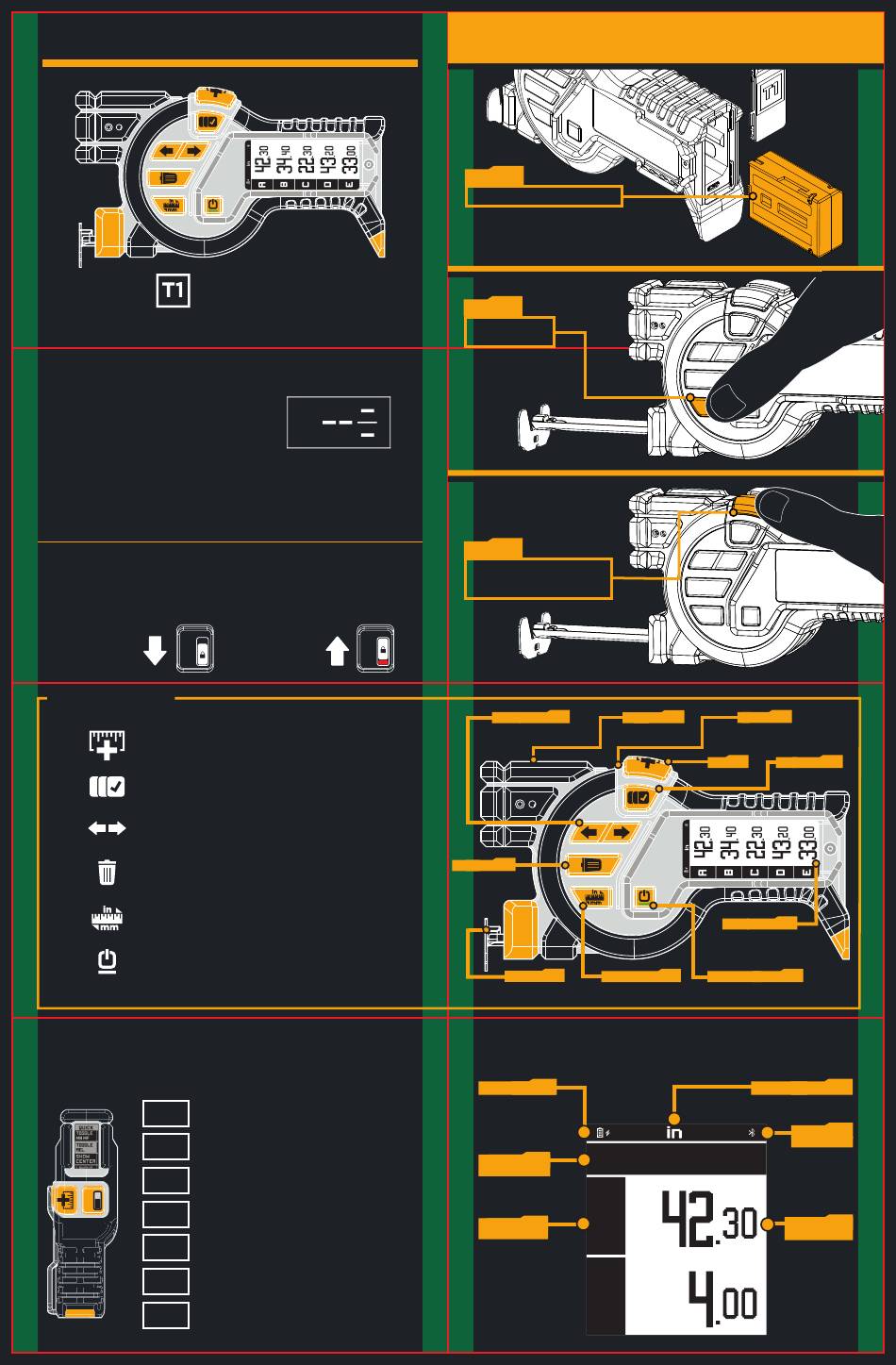

REEKON TOMAHAWK T1 Quick Start Manual

QUICK START GUIDE
TOMAHAWK
NOTE: Appearances, features, and functionality may vary from the written instructions based on
updates made to device software. Please visit our website for latest information and additional details.
DASHING ON OLED
Dashing on the OLED display is a feature of the T1
Tomahawk to prevent showing an incorrect
measurement on the display. Seeing dashes is a
normal part of the T1 operation and part of the
robust error-checking redundancy features built
into the T1 encoding system.
Dashing may appear during initial startup, routine
use, or other conditions. To relocate the position on
the T1, slowly extend and retract the tape measure
blade. The T1 will quickly locate where it is and
display a measurement on the screen.
AUTOLOCK
By default the tape blade will not retract unless the Autolock button is depressed.
The user can enable / disable this feature by sliding the Autolock selection slider
upwards / downwards as shown.
SLIDE DOWN
AUTOLOCK
ENGAGED
DIAGRAM
1.
CAPTURE:
Saves measurement to E-Paper Display and ROCK app
(if connected).
2.
QUICK ACTIONS MENU:
Select from a series of measuring functions.
CURSOR UP/DOWN:
3.
Moves cursor up and down on E-paper Display or in
Quick Actions Menu.
CLEAR/DELETE:
4.
Quick press will delete measurement on E-Paper Display
that is highlighted or provide options for mass deletion.
5.
UNITS/MAIN MENU:
Quick press will rotate between units.
(Press and Hold: Will enter Main Menu options).
6.
LASER/POWER ON/OFF:
Quick press will toggle Laser on/off
(Press and Hold: Will turn device on/off).
OLED - QUICK ACTIONS
The Quick Actions Menu on the T1 gives you access to helpful settings
that you can enable / disable as needed.
EXIT
- Exits to live view measurement mode.
TOGGLE
- Toggles T1 between inside and outside
MB MF
measurements.
TOGGLE
- Switch between absolute and relative
REL
measuring mode.
SHOw
- Quickly locate center (or half) of a
CENTER
measurement.
LAYOUT
- Allows for quick incremental measurement.
GUIDE
FLIP
- Flips screen for easy viewing when inverted.
SCREEN
CLEAR
- Removes all active measurement modes
ALL
selected.
OLED DISPLAY
NOTE: Slowly extend
and/or retract the tape
measure blade to allow
the T1 to locate its
position.
SLIDE UP
AUTOLOCK
DISENGAGED
SETUP
STEP 1
INSTALL INCLUDED BATTERY
STEP 2
SELECT UNIT OF
MEASUREMENT
STEP 3
PRESS CAPTURE BUTTON TO
SAVE MEASUREMENT
TO E-PAPER DISPLAY
CURSOR UP/DOWN
CURSOR ARRIBA/ABAJO
CURSEUR HAUT/BAS
CLEAR/DELETE
BORRAR/ELIMINAR
EFFACER/SUPPRIMER
MAGNETIC TIP UNITS/MAIN MENU
PUNTA MAGNÉTICA UNIDADES/MENÚ
CROCHET MAGNÉTIQUE
E-PAPER DISPLAY
BATTERY LEVEL
GROUP 1
MEASUREMENT
GROUP
A
MEASUREMENT
LABEL
B
OLED DISPLAY AUTOLOCK
PANTALLA OLED
BLOQUEO DE CUCHILLA
ÈCRAN OLED
VERROUILLAGE AUTOMATIQUE
CAPTURE QUICK ACTIONS
CAPTURA
FUNCIONES RÁPIDAS
CAPTURE FONCTIONS RAPIDES
E-PAPER DISPLAY
PANTALLA DE
PAPEL ELECTRÓNICO
ÉCRAN E-PAPIER
LASER/POWER ON/OFF
LÁSER/ENCENDIDO/APAGADO
UNITÉS/MENU LASER/MARCHE/ARRÊT
UNIT OF MEASUREMENT
BLUETOOTH
CONNECTION
RECORDED
MEASUREMENT
