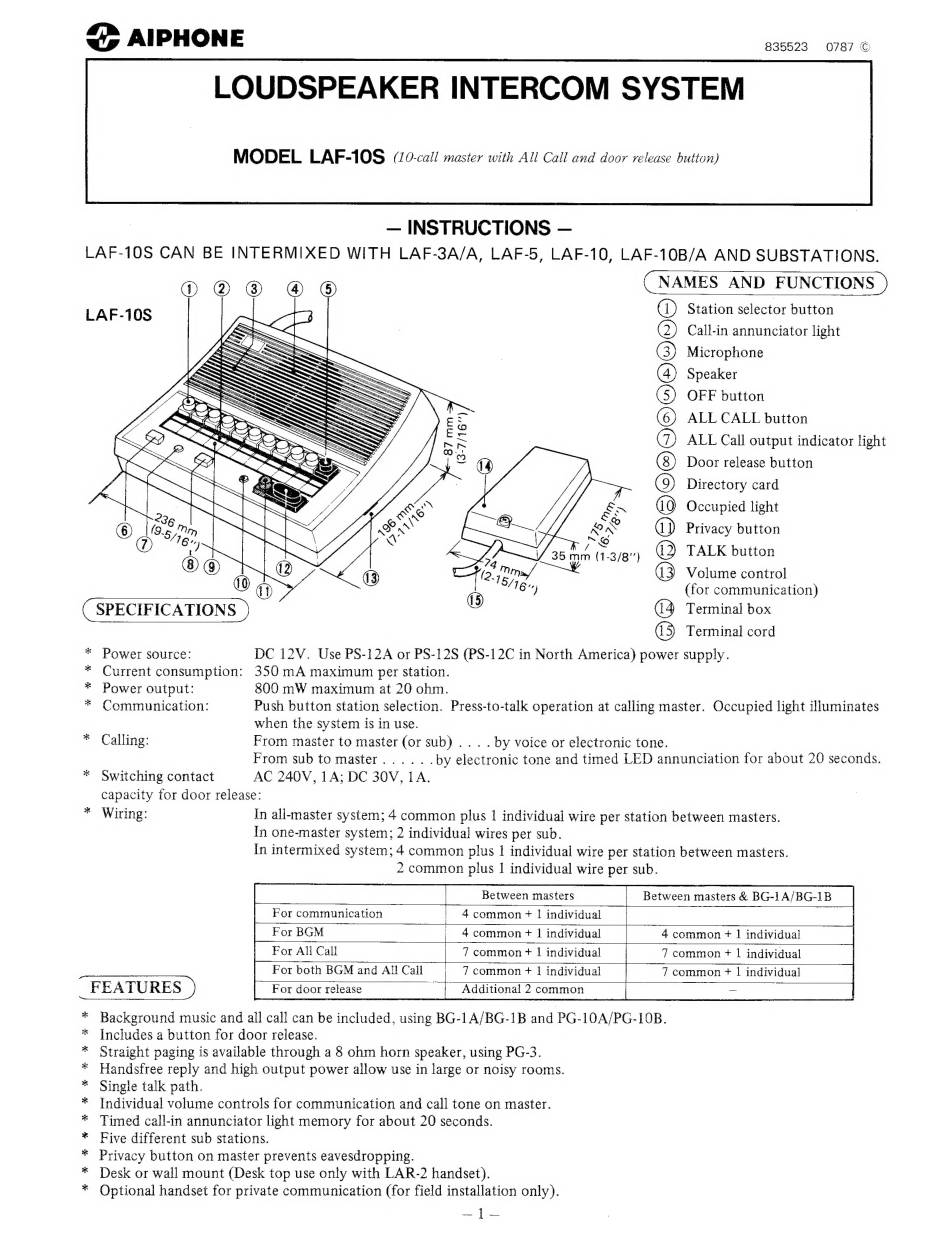

Aiphone LAF-10S Instructions Manual

<> AIPHONE eem omi
LOUDSPEAKER INTERCOM SYSTEM
MODEL LAF-10S ^/(70-call master with All Call and door release button)
— INSTRUCTIONS —
LAF-108 CAN BE INTERMIXED WITH LAF-3A/A, LAF-5, LAF-10, LAF-10B/A AND SUBSTATIONS.
NAMES AND FUNCTIONS
Speaker
OFF button
ALL CALL button
ALL Call output indicator light
Door release button
Directory card
Occupied light
Privacy button
TALK button
Volume control
(for communication)
Terminal box
QOD QDQQOQOQOLOQQOOOOO
Terminal cord
* Power source: DC 12V. Use PS-12A or PS-128 (PS-12C in North America) power supply.
* Current consumption: 350 mA maximum per station.
* Power output: 800 mW maximum at 20 chm.
* Communication: Push button station selection. Press-to-talk operation at calling master. Occupied light illuminates
when the system is in use.
* Calling: From master to master (or sub) . . . . by voice or electronic tone.
From sub to master...... by electronic tone and timed LED annunciation for about 20 seconds.
* Switching contact AC 240V, 1A; DC 30V,1A.
capacity for door release:
* Wiring:
In all-master system; 4 common plus 1 individual wire per station between masters.
In one-master system; 2 individual wires per sub.
In intermixed system; 4 common plus 1 individual wire per station between masters.
2 common plus 1 individual wire per sub.
For communication | 4 common + 1 individual
For BGM | 4 common + 1 individual 4 common + 1 individual
For Ali Call 7 common * 1 individual 7 common + 1 individual
For both BGM and All Call | 7 common + I individual 7 common + 1 individual
FEATURES ) For door release F Additional 2 common ia
Background music and all call can be included, using BG-1 A/BG-1B and PG-10A/PG-10B.
Includes a button for door release.
Straight paging is available through a 8 ohm horn speaker, using PG-3.
Handsfree reply and high output power allow use in large or noisy rooms.
Single talk path.
Individual volume controls for communication and call tone on master.
Timed call-in annunciator light memory for about 20 seconds.
Five different sub stations.
Privacy button on master prevents eavesdropping.
Desk or wall mount (Desk top use only with LAR-2 handset).
Optional handset for private communication (for field installation only).
