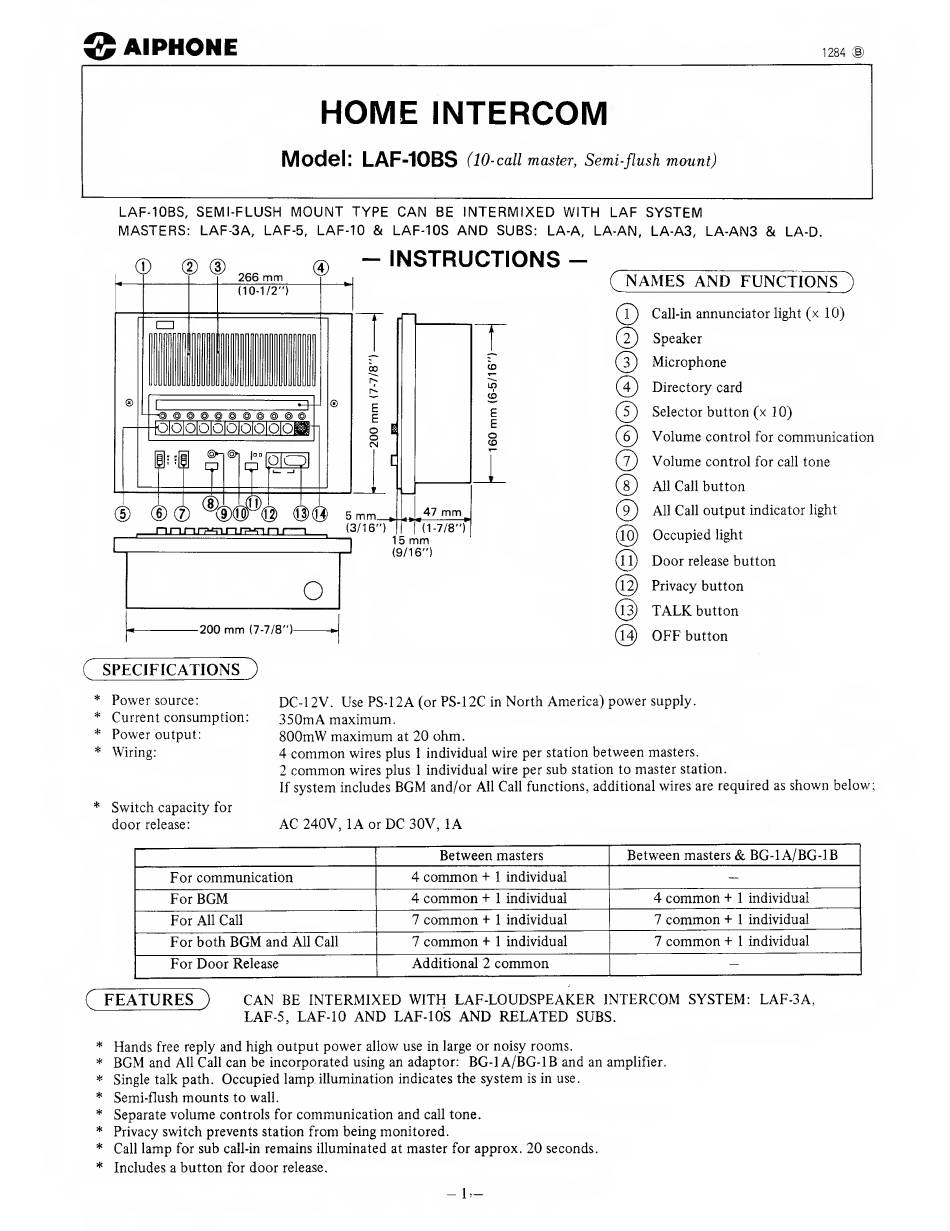

Aiphone LAF-10BS User Manual

@ AIPHONE
1284 ®
HOME INTERCOM
Model: LAF-10BS
(10-call master, Semi-flush mount)
LAF-10BS, SEMI-FLUSH MOUNT TYPE CAN BE INTERMIXED WITH LAF SYSTEM
MASTERS: LAF-3A, LAF-5, LAF-10 & LAF-10S AND SUBS: LA-A, LA-AN, LA-A3, LA-AN3 & LA-D.
( SPECIFICATIONS )
("names AND FUNCTIONS?)
(T)
Call-in annunciator light
(x 10)
(2) Speaker
(3) Microphone
(?) Directory card
(T)
Selector button
(x
10)
(?) Volume control for communication
(
7
)
Volume control for call tone
(?) All Call button
(?) All Call output indicator light
(10) Occupied light
(Tl) Door release button
(12) Privacy button
@ TALK button
(l4) OFF button
* Power source:
* Current consumption:
* Power output:
* Wiring:
* Switch capacity for
door release:
DC-12V. Use PS-12A (or PS-12C in North America) power supply.
350mA maximum.
800mW maximum at 20 ohm.
4 common wires plus 1 individual wire per station between masters.
2 common wires plus 1 individual wire per sub station to master station.
If system includes BGM and/or All Call functions, additional wires are required as shown below;
AC 240V, 1A or DC 30V, 1A
Between masters
Between masters & BG-1A/BG-1B
For communication
4 common + 1 individual
-
For BGM
4 common + 1 individual 4 common + 1 individual
For All Call
7 common + 1 individual 7 common + 1 individual
For both BGM and All Call 7 common + 1 individual
7 common + 1 individual
For Door Release
Additional 2 common
-
( FEATURES
) CAN BE INTERMIXED WITH LAF-LOUDSPEAKER INTERCOM SYSTEM: LAF-3A,
" ' LAF-5, LAF-10 AND LAF-10S AND RELATED SUBS.
* Hands free reply and high output power allow use in large or noisy rooms.
* BGM and All Call can be incorporated using an adaptor: BG-1A/BG-1B and an amplifier.
* Single talk path. Occupied lamp.illumination indicates the system is in use.
* Semi-flush mounts to wall.
* Separate volume controls for communication and call tone.
* Privacy switch prevents station from being monitored.
* Call lamp for sub call-in remains illuminated at master for approx. 20 seconds.
* Includes a button for door release.
