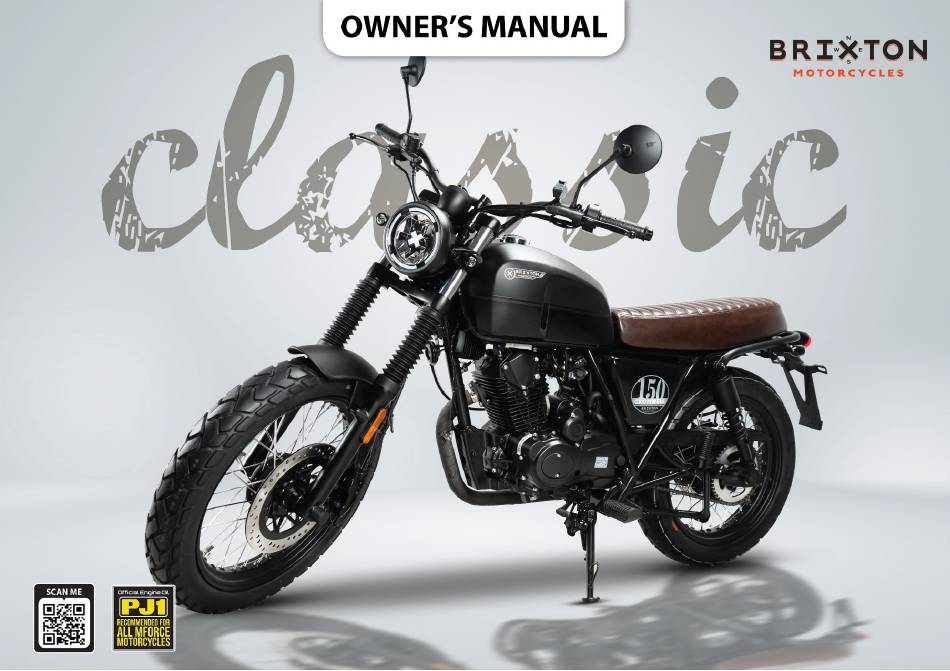

  • Page 1 USERMANUAL BX-150 mod.#...

  • Page 2: Introduction

    INTRODUCTION Thanks for your purchasing of this vehicle. This model is designed for safety, built for durability, and perfected for daily street use. The unique vehicle design, enrich of stylish and peronality, represents your outstanding taste and favor to pursue the state of the art living attitude. This manual describes the correct usage of this motorcycle including safety riding, simple inspection methods and so on.

  • Page 3: Important Manual Information

    IMPORTANT MANUAL INFORMATION In this manual with some important information is distinguished by the following notations: WARNING It is WARNING instructions that need to follow, failure of follow coulnd be end in result severe injuiry or lead to death to the operator. CAUTION A CAUTION indicates with special precautions to avoid damage to the vehicle.
  • Page 4 IMPORTANT MANUAL INFORMATION Dealer label here...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Right handlebar Engine oil Electric starting button Check engine oil IMPORTANT MANUAL INFORMATION 2 Oil change Throttle grip TABLE OF CONTENTS Fuel filter Headlight switch SAFETY INFORMATION ECU (Engine Control Unit) Emergency light switch Safe riding Throttle cable free play Front brake lever Protective clothing...
  • Page 6 TABLE OF CONTENTS Charge the battery Store the battery Fuse Replacing the fuse Lighting Headlight Turn signal, Tail and Brake light License plate light TROUBLESHOOTING Troubleshooting chart CLEAN AND STORAGE Clean the vehicle Before cleaning Cleaning after normal use Cleaning after riding in the rain, near the sea or on salt-sprayed roads After cleaning Storage...

  • Page 7: Safety Information

    SAFETY INFORMATION THIS VEHICLE ARE TWO WHEEL Safe riding • Never lend your vehicle to oththers SINGLE TRACK VEHICLES. THE • Always pre-check your vehicle befo- who not qualified for riding USE OF SAVETY AND OPERATI- re riding is key point to prevent an •...

  • Page 8: Modifications

    SAFETY INFORMATION • The wear of proper jacket, shoes, minimize imbalance or instability. groves etc., can be better protection, may cause possibility of an accident, • Make sure that accessories and car- reducing the degree of injuiry from please extremely caution and follow go are securely attached to vehicle un-expected accident.

  • Page 9: Gasoline And Exhaust Gas

    SAFETY INFORMATION • Accessories on the handle bar/front • Take care not to spill any gasoli- • In case of swallow any gasoline, or suspension area will cause bad influ- ne on the engine (hot) or exhaust gasoline get into your eyes, please ence on steering the vehicle.

  • Page 10: Description Of The Vehicle

    DESCRIPTION OF THE VEHICLE COMPONENTS (ALL MODELS) 1. Clutch lever 2. Left handlebar switches 3. Power lock 4. Instrument 5. Right handlebar switches 6. Throttle grip 7. Front brake lever 8. Front wheel 9. Front brake caliper 10. Front turn signal light 11.
  • Page 11 DESCRIPTION OF THE VEHICLE 18. Muffler 19. Rear brake 20. Seat 21. Main stand 22. Rider foot rest 23. Fuel tank 24. Fuel tank cap 25. Rear-view mirror 26. Headlight 27. Reflector 28. Front fender 29. Front brake disc...

  • Page 12: Components (Sunray 150 Only)

    DESCRIPTION OF THE VEHICLE COMPONENTS (SUNRAY 150 ONLY) 30. Rear view mirror COMPONENTS (FELSBERG 150 ONLY) 31. Windshield...

  • Page 13: Consumer Information

    CONSUMER INFORMATION VEHICLE IDENTIFICATION NUMBER (VIN) Please write down the VIN (vehicle identification number) to order replacement parts from your dealer or the vehicle should be stolen. The vehicle identification number of the vehicle (1) is stamped on the steering head, the anti-tampering label (2) is located on the left hand side.

  • Page 14: Instrument And Control Functions

    INSTRUMENT AND CONTROL FUNCTIONS INSTRUMENTS 7. Neutral gear lamp When the transmission is in the neutral 4. Speedometer position, the neutral pilot lamp will be The Speedometer shows the engine illuminated. revolutions from 0-16×1000rpm. 8. Speedometer 5. Odometer Speedometer indicates riding Total mileage (ODO) records the total speed of vehicles.

  • Page 15: Steering Lock

    INSTRUMENT AND CONTROL FUNCTIONS ted; and the key cannot be removed; LEFT HANDLEBAR 2. Horn button rotating the key counterclockwise, the Pressing the horn button, the horn will power is turned off; the engine cannot sound. be started; and the key can be taken out.

  • Page 16: Right Handlebar

    INSTRUMENT AND CONTROL FUNCTIONS Throttle grip At front braking, slowly clench the WARNING The throttle grip is used to control the handlebar on the right handle. When changing lanes or turning, engine speed. To increase the speed, FUEL TANK turn on the turn signal lights in time. turn the throttle grip towards yourself.

  • Page 17: Gearshift Pedal Lever

    INSTRUMENT AND CONTROL FUNCTIONS should not be spilled on the from entering the tank chamber. gear. hot engine, because this could For shifting down push the lever down lead to abnormal running of the again. Fuel: Unleaded gasoline only motorcycle, or even accidents. Shift only one gear at a time.

  • Page 18: Side And Main Stand

    INSTRUMENT AND CONTROL FUNCTIONS SIDE AND MAIN STAND SEAT Disassembly of the seat 1. Park the motorcycle on its main stand 2. Remove the seat bolt (1) 3. Take off the seat 4. Reassemble in reverse order The side stand (1) is located on the left side of the vehicle.

  • Page 19: Combined Brake System (Cbs)

    INSTRUMENT AND CONTROL FUNCTIONS COMBINED BRAKE SYSTEM (CBS) The CBS (Combined Brake System) is a combined brake system which contributes to the road safety support of your motorcycle. Your vehicle is equipped with a single CBS. When the “foot brake” is pressed, this simultaneously activates both the front and rear brakes, therefore reducing the risk of one of the two wheels locking.

  • Page 20: Pre-Operation Checks

    PRE-OPERATION CHECKS The condition of a vehicle is the owner’s responsibility. The operator should check the vehicle by simple but thorough inspection,to make sure of vehicle condition, quick inspect some key and important parts, to prevent the vehicle from seri- ous consquence/accident.

  • Page 21: Pre-Operation Check List

    PRE-OPERATION CHECKS PRE-OPERATION CHECK LIST CHECKPOINT TO VERIFY Fuel • Check fuel level in fuel tank. • Refuel if necessary. • Check fuel line for leakage. Engine oil • Check oil level in oil tank. • If necessary, add recommended oil to specified level. •...

  • Page 22: Operation And Important Riding Points

    OPERATION AND IMPORTANT RIDING POINTS SHIFTING AND RIDING WARNING CAUTION • Before riding the vehicle, please • Do not crank the engine more than 5 a) Shifting gears upwards make sure that you are fully fami- seconds on any attempt. 1.

  • Page 23: Acceleration / Deceleration

    OPERATION AND IMPORTANT RIDING POINTS ACCELERATION / DECELERATION right. Remove the key from the main WARNING switch. • Avoid braking hard and/or sud- denly, otherwise the vehicle may WARNING skid. Since the engine and exhaust sys- • Railroad crossings, streetcar tem can become very hot, park in a rails, iron plates on road const- place where pedestrians or children...
  • Page 24 OPERATION AND IMPORTANT RIDING POINTS riod. The mechanisms of the mobi- vers, steep slopes, etc.) try to limit the conds. le parts are mutually hardened and time to a minimum. • Check the non-existence of oil, fuel adapted. Gearbox oil must be changed once or brake liquid leaks.

  • Page 25: Periodic Maintenance And Minor Repair

    PERIODIC MAINTENANCE AND MINOR REPAIR plug should be removed and checked 3. Check that the porcelain insulator CAUTION in accordance with the periodic main- (3) around the center electrode of Most of the Safety and condition of ve- tenance and lubrication chart. In additi- the spark plug is a medium-to-light hicle depend on how you do the correct on, the condition of the spark plug can...

  • Page 26: Engine Oil

    PERIODIC MAINTENANCE AND MINOR REPAIR stand. Specified spark plug: D8RTC 3. After a few minutes switch off the en- gine and wait one minute. 4. Check the oil level at the sight glass WARNING illustrated above. The oil level must Please note that no other spark plug be between the max and minmarks.

  • Page 27: Oil Change

    PERIODIC MAINTENANCE AND MINOR REPAIR Oil change AIR FILTER stalled, otherwise the piston and/or The engine oil can be topped up whe- cylinder may become excessively never this is needed but oil changes worn. and oil filter replacements should be •...

  • Page 28: Throttle Cable Free Play Adjustment

    PERIODIC MAINTENANCE AND MINOR REPAIR The throttle cable free play (1) should CLUTCH FREE PLAY TIRES measure 1.5 ~ 3.5 mm at the throttle grip. The clutch free play should be 10- To maximize the performance, durabi- 20mm. lity, and safe operation of your vehicle, CAUTION note the following points regarding the CAUTION...

  • Page 29: Tire Inspection

    PERIODIC MAINTENANCE AND MINOR REPAIR Tire inspection WARNING CAUTION Do not over load your vehicle, since The tread depth may vary depending it will increase pressure on the tire, on country. Observe local regulations. braking, steering than original de- The values listed here are technical va - sign, and may could cause damge lues and may differ from the legal valu - or even lead to accident.

  • Page 30: Rims

    PERIODIC MAINTENANCE AND MINOR REPAIR RIMS BRAKES CAUTION If there is no play of the brake levers, WARNING To maximize the performance, durabi- it may be that the brake pads drag lity, and safe operation of your motor- A soft or spongy feeling in the brake permanently on the brake disc.

  • Page 31: Brake Pads

    PERIODIC MAINTENANCE AND MINOR REPAIR Brake pads • If the brake fluid level is low, be refilling. Water will significantly Each brake pad is provided with wear sure to check the brake pads for lower the boiling point of the fluid indicators, which allows you to check wear and the brake system for and may result in vapor lock.

  • Page 32: Throttle Grip And Cable

    PERIODIC MAINTENANCE AND MINOR REPAIR ricated if necessary. If a cable is dama- maintenance and lubrication chart. 1. Place the vehicle flat and upright ged or does not move smoothly, have from. a dealer check or replace it. SIDE STAND / MAIN STAND 2.

  • Page 33: Wheel Bearings

    PERIODIC MAINTENANCE AND MINOR REPAIR 1. Place the vehicle on a suitable mo- jumping off the chain wheels. If this CAUTION torcycle stand to raise the front happens the chain could also block the If there is play in the wheel hub or if the wheel off the ground.

  • Page 34: Charge The Battery

    PERIODIC MAINTENANCE AND MINOR REPAIR ric acid and leads to dangerous Charge the battery CAUTION burns. Have a dealer charge the battery as Always keep the battery charged. Sto- • Avoid skin, eye and clothing soon as possible if it seems to have ring a discharged battery can cause contac.Protect your eyes always discharged.

  • Page 35: Lighting

    PERIODIC MAINTENANCE AND MINOR REPAIR LIGHTING Headlight This model is equipped with halogen bulb headlight. If a headlight bulb burns out, have a dealer replace it and, if ne- cessary, adjust the headlight beam. Turn signal, Tail and Brake light The turn signals, the tail and the brake lights are equipped with an LED light.

  • Page 36: Troubleshooting

    TROUBLESHOOTING Although the vehicles receive a thorough inspection before shipment from the factory, trouble may occur during operation. Any problem in the fuel, compression, or ignition systems, for example, can cause poor starting and loss of power. The following troubleshooting chart represents a quick and easy procedure for checking these vital systems yourself. However, should your vehicle require any repair, take it to a dealer, whose skilled technicians have the necessary tools, experience, and knowhow to service the vehicle properly.
  • Page 37 TROUBLESHOOTING TROUBLESHOOTING CHART Failure Cause To Do Wire harness is worn Check the wiring harness Contact problem in a plug Check the plugs of the wiring harness No gasoline in the tank Refill gasoline Engine turns but does not start or dies off Problem with the fuel pump Check the pump...

  • Page 38: Clean And Storage

    CLEAN AND STORAGE CLEAN THE VEHICLE dealer to the sensitive components Cleaning after riding in the rain, near of the vehicle to prevent damage. the sea or on salt-sprayed roads Clean of the vehicle in a proper and Dry the plastic parts then wipe with CAUTION suitable way will make it more attracti- a soft, dry cloth or sponge.

  • Page 39: After Cleaning

    CLEAN AND STORAGE After cleaning STORAGE Follow the steps below to cylinders, • Dry the vehicle. piston rings, etc. to prevent rusting. • To prevent rust, we recommend ap- Short-term (for a few days) • Remove spark plug cap and the propriate care to use according to •...
  • Page 40 CLEAN AND STORAGE • Slide a plastic bag over the exhaust to prevent moisture from entering. • Remove the battery and load it as de- scribed on. Store cool the battery and dry and upload to this every 2 months. Store the battery is not excessively cold or hot (Below 0 °...

  • Page 41: Specifications

    SPECIFICATIONS ENGINE CLUTCH Type 4-stroke Clutch type Multiple plate clutch Cylinder arrangement Single cylinder Transmission type 5 - speed Displacement 149 cm3 TIRES Compression ratio 9.3:1 CROMWELL SUNRAY FELSBERG Starting system Electric starter (BX 150) BX 150 R) (BX 150 X) Front tire Lubrication system Wet sump lubrication...

  • Page 42: Warranty Information

    WARRANTY INFORMATION Please carefully read the instruction manual of your vehicle before operating it in order to make yourself familiar with its handling. We explicitly point out that the instruction, maintenance, and care instructions given in the operating manual have to be complied with in order the prolonging of the natural life of your vehicle.

  • Page 43: Serviceand Maintenance

    SERVICE AND MAINTENANCE IMPORTANT INFORMATION or duration from initial startup. The warranty can be granted only when the vehicle serviced in accordance with this plan and was not exposed to extraordinary stress. Only appropriate works which are intended for your vehicle perform. WARNING CAUTION Hydraulic lines should be replaced every 4 years.

  • Page 44: Maintenance Schedule

    SERVICEAND MAINTENANCE MAINTENANCE SCHEDULE 1000km or 4000km or 7000km or 10000km or 13000km or The inspection intervals are required, these will void the warranty. 1.Month 6.Month 12. Month 18. Month 24. Month COMPONENT PERFORM Clean/ Exchange �� �� �� �� Exchange Wheels, Rims Control...

  • Page 45: Service Record

    SERVICE AND MAINTENANCE SERVICE RECORD In the delivery of the vehicle the customer data and vehicle data must be supplemented. Maintenance interval: Delivery inspection Maintenance interval: 1000 km or 1. month Maintenance interval: 4000 km or 6. month Odometer reading: Odometer reading: Current odometer reading: Date:...

  • Page 46: Space For Notes
