3020-42650

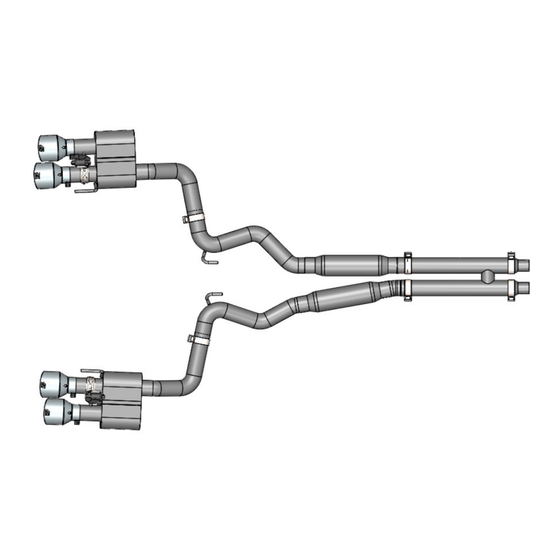

AWE Track Edition Exhaust for S650 Mustang GT Fastback - Quad Chrome Silver Tips
3020-43650
AWE Track Edition Exhaust for S650 Mustang GT Fastback - Quad Diamond Black Tips
3025-42650
AWE SwitchPath™ Exhaust for S650 Mustang GT Fastback - Quad Chrome Silver Tips
3025-43650
AWE SwitchPath™ Exhaust for S650 Mustang GT Fastback - Quad Diamond Black Tips
Welcome to the AWE family, and congratulations on your purchase of the AWE Exhaust for the Mustang GT Quad Tip
Exquisite build quality and craftsmanship, coupled with industry leading performance, distinguish this exhaust system
from all others.
*For up to the minute fitment information, be sure to visit the AWE website. As always, AWE Performance Specialists
are standing by for any questions,
Copyright 2023, AWE. No part of this document may be reused or duplicated without the express permission of AWE. All rights reserved. Rev 1.1
right
here.
REAR END SHOT, STRAIGHT ANGLE
AWE-Tuning.com.
