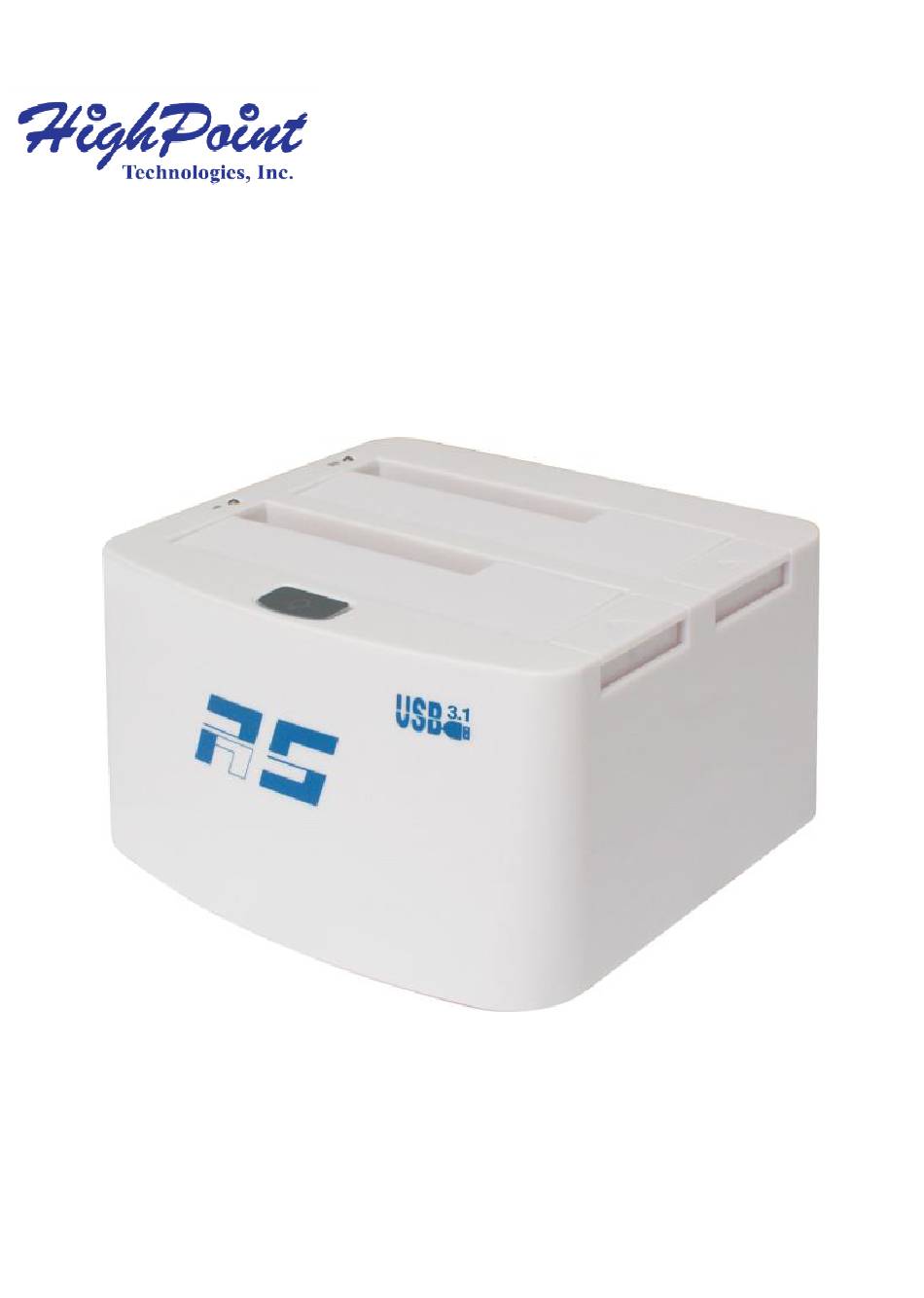

- Page 1 RocketStor 3122B 2-Bay Dual-Dedicated USB 3.1 Storage Dock Quick Installation Guide V1.00...
- Page 2 Table of Contents HighPoint RocketStor 3122B ................3 Kit Contents ......................3 RocketStor 3122B Hardware ................4 Configuring the RocketStor 3122B ............... 5 Customer Support ....................7 FCC Part 15 Class B Radio Frequency Interference statement ......8...
- Page 3 HighPoint RocketStor 3122B RocketStor 3122B Storage Dock is fully compatible with PC and Mac platforms. Each 6Gb/s SATA bay supports any generation of 2.5” and 3.5” SSD and hard drive. Key Features Dual Dedicated USB 3.1Ports Dedicated SATA 6Gb/s Drive Bays ...
- Page 4 RocketStor 3122B Hardware Front View: Rear View:...
- Page 5 Configuring the RocketStor 3122B Connecting USB cables The RocketStor 3122B utilizes industry standard USB 3.1 ports and cables. The rear panel of the Storage Dock provides two USB Type-B ports that can be connected to any standard motherboard or notebook USB ports, or to PCIe USB host adapter cards, such as RocketU series USB 3.1 HBA’s.
- Page 6 SATA Drives Installation and Ejecting The RocketStor 3122B supports 1 or 2 disk configurations of 2.5” and 3.5” SATA storage devices of any performance level and capacity. Installing a Device - Carefully align the SATA device’s gold fingers with the bay’s SATA connector. Gently push the device straight down until secure.
- Page 7 Customer Support If you encounter any problems while utilizing the RocketStor 3122B, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: http://www.highpoint-tech.com...
- Page 8 European Union Compliance Statement This Information Technologies Equipment has been tested and found to comply with the following European directives: European Standard EN55022 (1998) Class B European Standard EN55024 (1998) © Copyright 2015 HighPoint Technologies, Inc. All right reserved.
