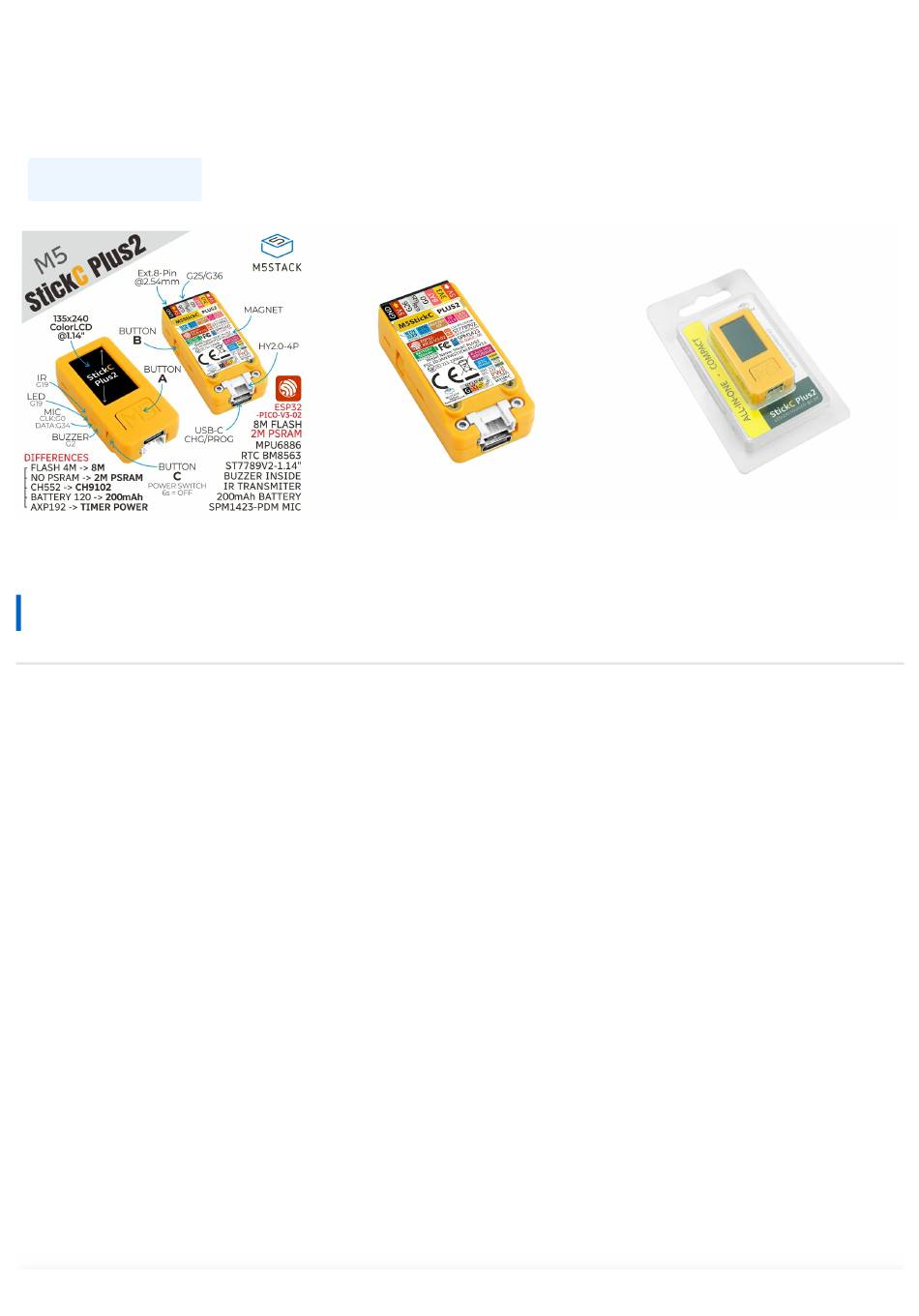

M5StickC PLUS2
SKU:K016-P2
Description
M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip
as the main controller with built-in WiFi functionality. The compact device integrates a wealth of
hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU,
buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven
by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also
supports HAT and Unit series products. This compact and versatile development tool is
designed to spark limitless creative possibilities.
M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire
development process. Even beginners in programming can easily build interesting applications
and apply them to real-life scenarios using M5StickC PLUS2.
1/16 | Update Time: 2024-11-18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for M5Stack M5StickC PLUS
Summary of Contents for M5Stack M5StickC PLUS
- Page 1 SKU:K016-P2 Description M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more.
- Page 2 Power on: To power on the device, press and hold "Button C" for more than 2 seconds, or trigger the IRQ signal by the RTC regularly. After triggering the wake-up signal, set the HOLD (GPIO4) pin to a high level (1) during program initialization to maintain the power supply. Otherwise, the device will enter the shutdown state again.
- Page 3 Arduino IDE This tutorial will show you how to program and control M5StickC PLUS2 devices through Arduino IDE Features ESP32- PICO- V3- 02-Base，support WiFi Built-in 6-Axis IMU IR transmitter Microphone Buttons, LCD(1.14 inch) Built-in Lithium Polymer Battery@200mAh Extendable Socket Built-in Passive Buzzer Wearable &...
- Page 4 Internet of things terminal controller Wearable devices Stem education product DIY creation Specification Resources Parameters ESP32-PICO-V3-02 ESP32 240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash PSRAM 2 MB PSRAM Flash 8 MB flash Power Input 5V @ 500mA Port TypeC x 1, GROVE(I2C+I/0+UART) x 1 LCD screen...
- Page 5 Antenna 2.4G 3D Antenna PIN port G0, G25/G36, G26, G32, G33 Operating Temperature 0°C to 40°C Case Material Plastic ( PC ) Product Size 48*25*13mm Package Size 114*64*23mm Product Weight Package Weight 24.8g 5/16 | Update Time: 2024-11-18...
- Page 6 Driver Installation Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP34X (for ) driver compressed package. CH9102 After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.
- Page 7 Port Selection on MacOS On MacOS, there may be two available ports. When using them, please select the port named wchmodem. EasyLoader EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
- Page 8 ESP32 GPIO19 GPIO37 GPIO39 GPIO35 GPIO2 IR Transmitter & IR Transmitter & RED RED LED LED Pin Button A BUTTON A Button B BUTTON B Button C BUTTON C Buzzer Buzzer Pin TFT LCD Driver IC:ST7789V2 Resolution:135 * 240 ESP32 GPIO15 GPIO13 GPIO14...
- Page 9 ESP32 GPIO33 GPIO32 GROVE Port MIC (SPM1423) ESP32 GPIO0 GPIO34 MICROPHONE SPM1423 DATA 6-Axis posture sensor (MPU6886) & RTC BM8563 ESP32 GPIO22 GPIO21 6-Axis IMU sensor BM8563 Related Link ESP32-PICO-V3-02 ST7789v2 BM8563 MPU6886 SPM1423 Schematic 9/16 | Update Time: 2024-11-18...
- Page 10 Schematic download Examples Arduino M5StickC_PLUS2 Library M5StickC_PLUS2 Factory Test Firmware Module Size 10/16 | Update Time: 2024-11-18...
- Page 11 Version Change 11/16 | Update Time: 2024-11-18...
- Page 12 The power management chip AXP192 was cancelled, and the main The version 2023.12 control chip was changed from ESP32-PICO-D4 to ESP32-PICO-V3- is changed 02, and the switching mode was different to v2 The difference between M5StickC PLUS and M5StickC PLUS2 Hardware difference 12/16 | Update Time: 2024-11-18...
- Page 13 Power Product Battery manageme Memory UART Chip Body Color Name Capacity 520KB SRAM M5STICKC ESP32- AXP192 120mAh and 4MB CH522 orange red PLUS PICO-D4 Flash 2MB PSRAM M5STICKC ESP32- 200mAh and 8 MB CH9102 orange PLUS2 PICO-V3-02 flash Pin difference 13/16 | Update Time: 2024-11-18...
- Page 14 Product BUTTON BUTTON A BUTTON B Name C(WAKE) MOSI(G15) Normal CLK(G13) buttons, M5STICKC DC(G23) non- PLUS RST(G18) programm CS(G5) able MOSI(G15) CLK(G13) M5STICKC DC(G14) PLUS2 RST(G12) CS(G5) The difference between turn on and off 14/16 | Update Time: 2024-11-18...
- Page 15 Product Power on Power off Name M5STICKC Press the reset BUTTON (BUTTON Press the reset BUTTON (BUTTON C) for at PLUS C) for at least 2 seconds least 6 seconds It can be started by pressing When no USB external power supply is "BUTTON C"...
- Page 16 Video M5StickC PLUS2 features StackC Plus2 视频.mp4 16/16 | Update Time: 2024-11-18...
