Summary of Contents for Jung JPE 20/2
- Page 1 BETRIEBSANLEITUNG OPERATING INSTRUCTIONS PUMPEN PUMPS...
- Page 2 Notizen / Notes / Notas / Notes / Note / Aantekeningen...
- Page 3 2. Technical data 3. Overview 3.1 Manual hydraulic pump JP 26 3.2 Electrical pump JPE 20/2 3.3 Electrical central pump JPE 30 NVR / JPE 30/4 NVR 3.4 Air-hydraulic pump JPL 15 3.5 Suitable jacks for manual and air-hydraulic pumps 4.
- Page 4 DANGER 1.1 Proper use These pumps are meant for connection to the hydraulic Indicates an imminent danger that could result in jacks of the company JUNG GmbH. serious personal injury or death. WARNING 1.2 Improper use Indicates a potentially hazardous situation that could Any use of the pumps other than that described under result in serious bodily injuries.
- Page 5 We reserve the right to make technical modifications in Safety shoes order to improve the function and quality. 1.6 Means of representation > Operating instructions Indicates important information and tips on how to work with the device. © JUNG Hebe- und Transporttechnik GmbH - 25 -...
- Page 6 Working pressure Connections Pieces Dimensions L x B x H 680 x 330 x 600* / 900 x 330 x 600** Weight Tank volume/usable Litres 9,5/8,4 *Without push handle **With push handle - 26 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 7 1,07 Oil flow rate with load litres/minute 0,18 Connections Pieces Dimensions L x B x H 380 x 136 x 185 Weight Tank volume/usable Litres 1,5/1,5 Compressed air connection 7-14 © JUNG Hebe- und Transporttechnik GmbH - 27 -...
- Page 8 Pumps 3. Overview 3.1 Manual hydraulic pump JP 26 Item number Designation Tank Pump lever Connection (2x) Lowering screw Oil filling screw/venting valve - 28 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 9 Pumps 3.2 Electrical pump JPE 20/2 Item number Designation Connections Drain valve Tank Mains plug Remote control Pressure gauge © JUNG Hebe- und Transporttechnik GmbH - 29 -...

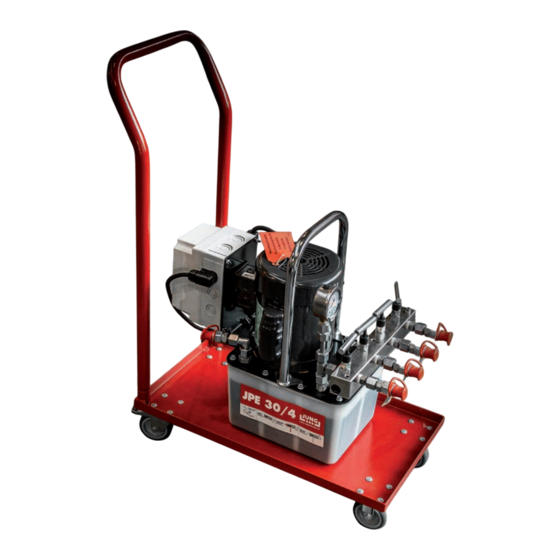

- Page 10 Item number Designation Pump unit Needle valves Connections Drain valve Tank Mains plug Remote control Return (no function) Pressure gauge Transport cart The pump is permanently mounted to the transport cart. - 30 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 11 Pumps 3.4 Air-hydraulic pump JPL 15 Item number Designation Lift/lower foot switch Pressure setter Oil filling screw Connections Tank Compressed air connection Attachment pressure gauge* *Accessory © JUNG Hebe- und Transporttechnik GmbH - 31 -...
- Page 12 JH 10 G plus / G plus ku / G plus EX JH 15 G plus / G plus EX JH 20 G plus / G plus EX JH 30 G plus EX JHS 5 JHS 10 JHS 10 ku - 32 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 13 Not under load / in working > Open the draining screw (3) of the pump slowly in position. the counterclockwise direction. > After the lowering operation, close the draining screw (3) again. © JUNG Hebe- und Transporttechnik GmbH - 33 -...
- Page 14 > Close the draining screws (2) of the jacks in the clockwise direction. > Draining valve (3) of the electrical central pump again. - 34 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 15 • Tap: The load is lifted by a small amount. regulating the lowering speed. • Hold: The load is lifted. > After the lowering operation, close the draining valve • Release: Stops the lifting operation. (3) and the needle valves. © JUNG Hebe- und Transporttechnik GmbH - 35 -...
- Page 16 • Increase pressure: Turn in clockwise direction • Reduce pressure: Turn in counterclockwise direction > Connect the compressed air hose to the compressed air connection (3). > Then actuate the foot switch (5) to relieve pressure. - 36 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 17 > Connect the jack (1) to connections (7). > Lower the load by slowly stepping on the foot > Lift the load by stepping on the foot switch (4). switch (5). © JUNG Hebe- und Transporttechnik GmbH - 37 -...
- Page 18 5. Slowly open the draining valve on the electric pump and lower the object to be lifted on the supports. Then close the two open needle valves and the draining valve on the electric pump again. - 38 - © JUNG Hebe- und Transporttechnik GmbH...
- Page 19 Hydraulic oil level low. Air in the Make sure that the fluid level is system. correct. Make sure that the venting screw pin is positioned so that the air exchange from the tank works correctly. © JUNG Hebe- und Transporttechnik GmbH - 39 -...
- Page 20 It is recommended to use hydraulic oil of quality HLP 46 or an equivalent oil. 6.4 Service and repair 6.1 Maintenance If desired and on request, the company JUNG GmbH can perform annual maintenance on the pumps at a NOTE fixed price.
- Page 21 You will receive a five-year warranty for all devices, provided the respective conditions and regular maintenance are observed. Making changes to the device during the warranty will void the warranty, unless the manufacturer has given you written permission to do so. © JUNG Hebe- und Transporttechnik GmbH - 41 -...
- Page 22 Applying the directives of the EC Council: 2006/42/EC We hereby declare that the design of the above devices (execution type), make JUNG, is intended for connection of a machine to other machines, and that their startup is prohibited until it has been ensured that the machine to be connected with the above-mentioned device (execution type) complies with the following provisions: Applied harmonized standards, particularly DIN EN ISO 12100:2010.
- Page 23 Notizen / Notes / Notas / Notes / Note / Aantekeningen...
- Page 24 Beratung, Service und Verkauf: Consulting, sales and service: Unser Logo und der Name JUNG sind in der EU, in den USA Our logo and brand name „JUNG“ are registered as trade- und in China unter folgenden Nummern geschützt: marks in the EU, US and China with register numbers: EU: Logo Nr.
