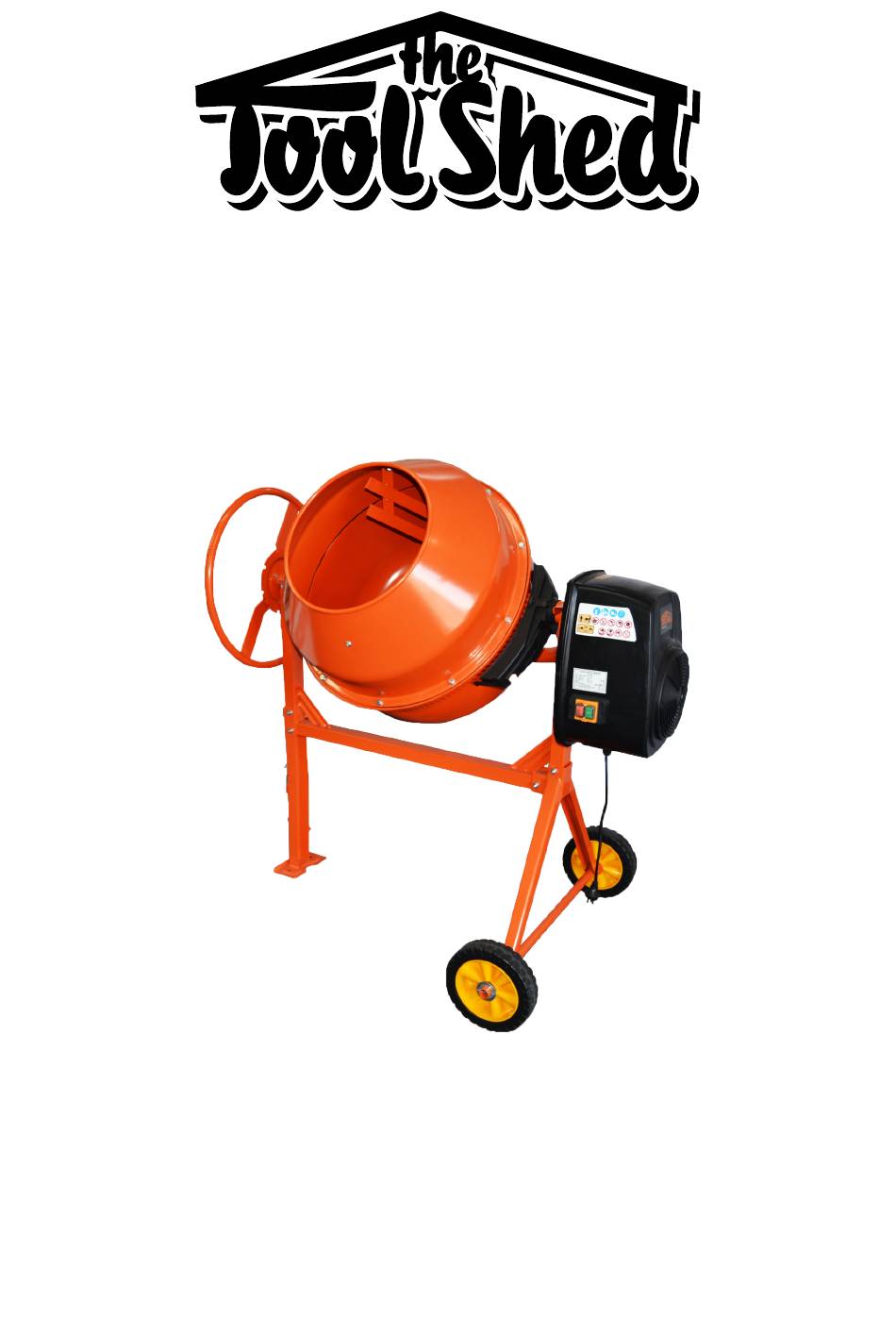

- Page 1 CONCRETE MIXER 160L 650W TSCM16 www.thetoolshed.co.nz...
- Page 2 OPERATION MANUAL OPERATION MANUAL TABLE OF CONTENTS PRODUCT DETAILS Product Details Product Model ToolShed Concrete Mixer 160L 650W Specifications Product Identification Product Code TSCM16 Safety Guidelines Assembly Operation Cleaning Maintenance Exploded Parts List DISTRIBUTED BY: Thank You Note: For the purchase of this ToolShed product. We try our hardest to supply customers like you This manual is for your reference only.
- Page 3 OPERATION MANUAL OPERATION MANUAL SPECIFICATIONS PRODUCT IDENTIFICATION Wattage 650W/230V Ingress Protection IP45 Drum Capacity 160L Drum Mouth 400mm Drum Speed 29.5 RPM Bowl Thickness 1.2/1.7mm Height 1350mm Net Weight 69kg Maximum Dimensions on Stand (LxWxH) 1260 x 850 x 1350 mm Mixing Blades Upper Drum Transmission Case...
- Page 4 OPERATION MANUAL OPERATION MANUAL SAFETY GUIDELINES SAFETY GUIDELINES Electrical Safety Power Tool & Machinery Use & from moving parts in the machine, or they WARNING could become caught therein. Care • DO NOT use the power tool or machinery • Always remain alert and DO NOT operate in rainy conditions or wet areas where the •...
- Page 5 OPERATION MANUAL OPERATION MANUAL SAFETY GUIDELINES SAFETY GUIDELINES • Service Concrete Mixer Specific Safety Dress for the Job Do not force the mixer, it will do a better and safer job at its designed rate. Always work • • • Have your tools and machinery serviced This mixer is intended for the production of Do not wear loose clothing, gloves, neckties...
- Page 6 OPERATION MANUAL OPERATION MANUAL ASSEMBLY ASSEMBLY • What’s in the Box With the frame lying on its side, attach the support leg as shown below. Insert two M8×70 hex bolts through the holes from one side, then flat washers, lock washers and nuts from the other side.
- Page 7 OPERATION MANUAL OPERATION MANUAL ASSEMBLY ASSEMBLY • The Bottom Drum (Cont.) NOTE: Two arrows are labelled on upper The Transmission Case Secure the mixing blades to the upper drum drum and bottom drum to make their by inserting the two M10×20 cross headed •...
- Page 8 OPERATION MANUAL OPERATION MANUAL OPERATION CLEANING Drum Tilting Loading Emptying WARNING • The tipping wheel provides an easy positive WARNING WARNING control of the drum which can be locked in Do not pour or spray water directly the mix, discharge, and stored position. over the motor cover, especially the Completely unwind the extension cord.
- Page 9 OPERATION MANUAL OPERATION MANUAL MAINTENANCE • Storage Before cleaning or performing any mainte- nance, you must ensure the tool is switched • When not in use, the mixer should be stored off and disconnected from the power supply. in a dry location to inhibit rust. Keep the •...
- Page 10 TSCM16 EXPLODED VIEW & PARTS LIST EXPLODED PARTS LIST Washer 14×1.5 X3 Upper Drum Drive Pinion Bolt M8×16 X10 Lock Pin 6×30 Rubber Leather Bearing 6206 X2 Bolt M8×12 X5 Circlip 30 Cogwheel Circlip 62 X3 Lower Drum Dust Proof Cover Bearing Block-Up Self-Tapping 3.5×16 X2...
