Summary of Contents for Tool Shed TSCM14P

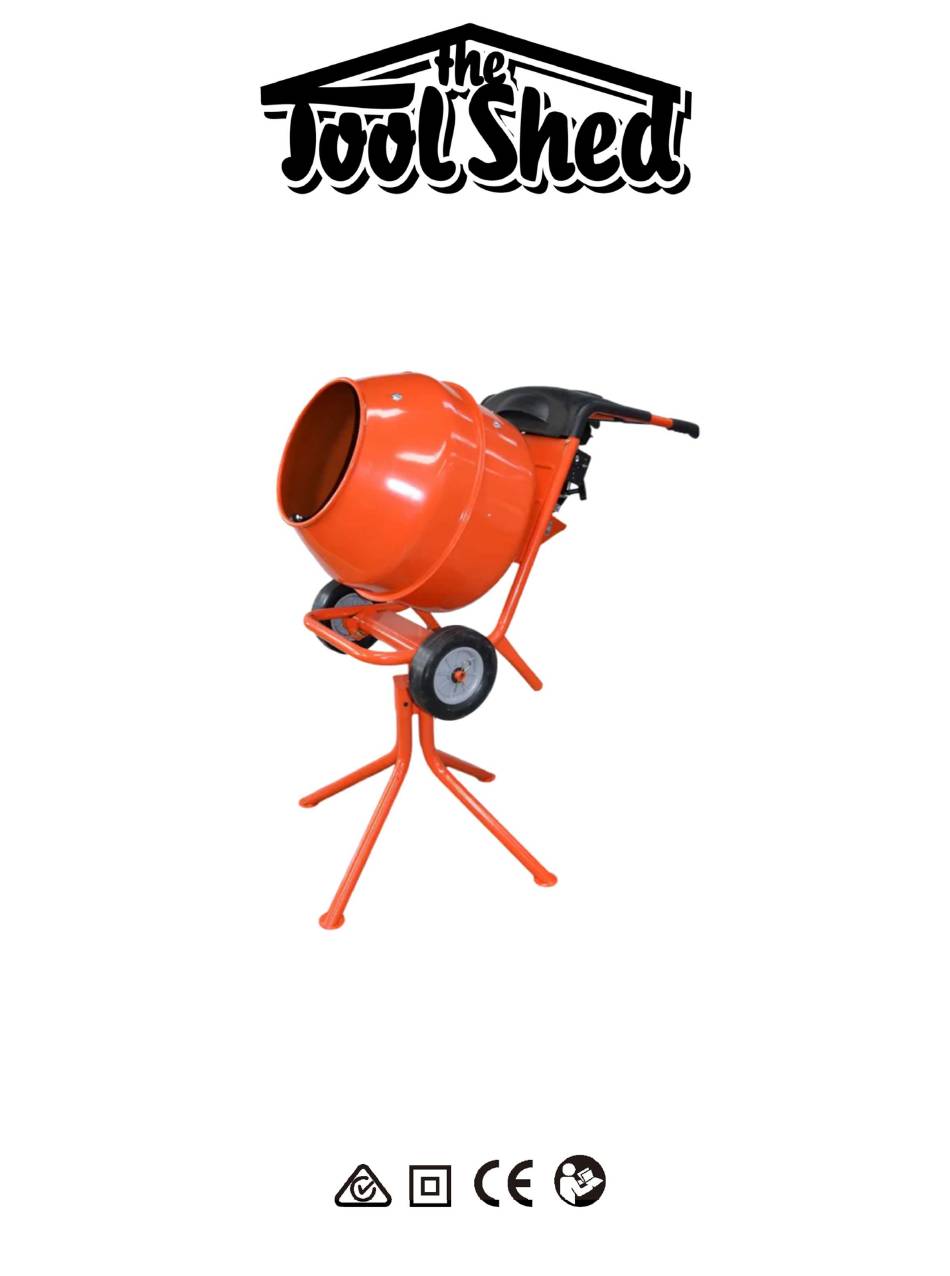

- Page 1 140L PETROL POWERED CONCRETE MIXER TSCM14P www.thetoolshed.co.nz...
-
Page 2: Product Details
PRODUCT DETAILS PRODUCT 140L Petrol Powered Concrete Mixer MODEL NO. TSCM14P ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. - Page 3 OPERATION MANUAL C O N T E N T S: Product Details ............................2 Specifications ............................4 Engine Identification ..........................4 Safety Guidelines ............................ 5 Assembly ..............................7 Parts List ..............................8 www.thetoolshed.co.nz...
-
Page 4: Specifications
OPERATION MANUAL SPECIFICATIONS Engine 2.5hp 4-stroke air cooled petrol Capacity 140L Mixing Capacity Drum Speed 24rpm Sound Level 101dB Height on Stand 1500mm Height off Stand 870mm Bowl Opening Diameter 400mm Weight with Stand 75kg Max. Dimensions on Stand 1500mm x 1300mm x 750mm ENGINE IDENTIFICATION www.thetoolshed.co.nz... -
Page 5: General Safety Guidelines
OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. - Page 6 OPERATION MANUAL Only use the power tool and machinery with genuine parts or accessories that are designed to be used with the power tool and machinery. Failure to do so could result in accident or injury or damage your tool or machinery. Store your tool or machinery out of reach of children and away from untrained personnel when not in use.
-
Page 7: Engine Starting Procedure
OPERATION MANUAL ASSEMBLY 1. Remove all components from the packing and check that the required amounts have been supplied. 2. Place the main frame on a level surface. 3. Slide both wheels on to the main frame axle and secure with the R clips included in the assembly kit. -
Page 8: Parts List
OPERATION MANUAL PARTS LIST www.thetoolshed.co.nz... - Page 9 OPERATION MANUAL No. Part Name QTY No. Part Name Drum Strap Cover – L Bolt (M10x25) Strap Cover – R Washer (10) Strap Cover – U Bolt (M8x40) Screw (M5x10) Nut (M8) Pulley Engine Cover Spring Washer (13) Block Washer (8) Handle Bolt (M8x15) Cover...
